Eaton TP7114 Weatherproof Box - NEC/CEC Compliance
Part Number: TP7114
Quick Summary
Eaton Crouse-Hinds weatherproof outlet box protects electrical connections in outdoor or harsh environments. Installers often battle moisture ingress, corrosion, and cramped wiring in damp locations, which can slow projects and compromise safety. This TP7114 unit carries NEC/CEC compliance and UL certifications for ordinary/non-hazardous locations, with a two-gang, 30.5 cu in capacity and a durable die-cast aluminum body. The gray enclosure combines rugged protection with compact footprint, enabling faster panel builds and reduced maintenance. For recurring automation deployments, its configurable outlet holes and reliable construction support scalable, code-compliant installations across outdoor control panels and equipment rooms.
Product Information
Extended Description

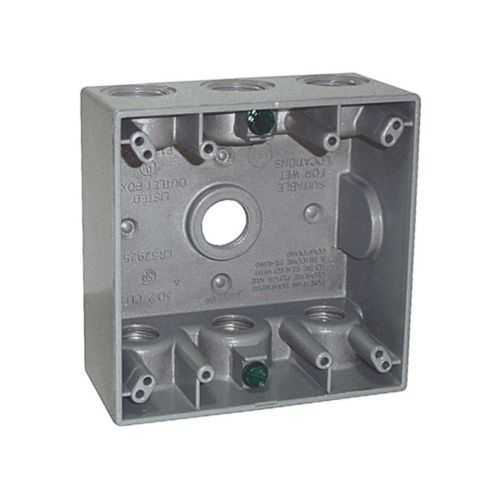

TP7114 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 30.5 cu in, Gray, 2" deep, Die cast aluminum, Two-gang, (7) 3/4" outlet holes
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7114
UPC
786189071146
Product Length/Depth
4.63 in
Product Height
4.56 in
Product Width
2.06 in
Product Weight
0.83 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Number of gangs
Two-gang
Depth
2"
Outlet holes
(7) 3/4 in
Capacity
30.5 cubic in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers UL certification
Weatherproof Outlet Boxes and Covers UL certification
TP7114 SLDDRW drawing
TP7114 SLDDRW drawing
Eaton Specification Sheet - TP7114
Feature -> Business Impact -> Application: Die-cast aluminum enclosure provides excellent corrosion resistance and durability in outdoor environments, reducing maintenance costs and extending service life for weather-exposed control panels. This translates to fewer field calls and lower total cost of ownership for industrial facilities needing robust electrical infrastructure. Feature -> Two-gang design with seven 3/4" outlet holes offers flexible wiring layouts, enabling multiple receptacles in a single box and simplifying conduit planning for outdoor lighting, irrigation, or process control applications. Application: Weatherproof outlet boxes in outdoor enclosures with limited space benefit from streamlined wiring and faster installation in municipal, manufacturing, and energy sectors. Feature -> 30.5 cubic inches of capacity supports additional devices and wiring without crowding, improving reliability and ease of future upgrades. Application: Small-to-mid size control panels in harsh environments. Feature -> 4.63 in length, 4.56 in height, 2 in depth yields a compact, space-efficient footprint for tight installations. Application: Wall-mounted or cabinet-integrated installations where space is at a premium. Feature -> NEC/CEC compliance and UL certification provide verified safety and regulatory alignment, reducing risk during audits and enabling faster permit approvals. Application: Outdoor process automation, building infrastructure, and utility installations requiring certified weatherproof enclosures. Insight: The combination of two-gang versatility, durable construction, and certified safety supports faster project delivery and predictable maintenance cycles in industrial settings.
Get a Quick Quote for a Eaton TP7114
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7114?
Enquire Now
FAQs
TP7114 is a two-gang weatherproof outlet box with seven 3/4 in outlets and a 30.5 cu in capacity. Its die-cast aluminum body, gray finish, and 2" depth are suited for outdoor control panels and damp locations. Verify your panel footprint, mounting pattern, and conductor count to ensure the two-gang enclosure accommodates your wiring and receptacle configuration while meeting NEC/CEC requirements.
Key specs include two-gang configuration, seven 3/4" outlet holes, 30.5 cubic inches capacity, 4.63 in length, 4.56 in height, and 2 in depth. The enclosure uses die-cast aluminum for durability and is intended for ordinary/non-hazardous locations under NEC/CEC. UL certification confirms compliance, providing confidence for outdoor or damp environments in industrial settings.
TP7114 excels in outdoor and damp environments such as outdoor control panels, lighting circuits, irrigation systems, and municipal infrastructure. The weatherproof, die-cast aluminum design protects against moisture and weather exposure, while the two-gang layout supports multiple outlets in a compact footprint, enabling reliable operation in harsh environments.
TP7114 carries NEC/CEC compliance for ordinary/non-hazardous locations and UL certification for weatherproof outlet boxes. This combination supports safe installation, code compliance, and streamlined permitting in both US and Canada, reducing risk during audits and inspections and facilitating cross-border deployments.
The die-cast aluminum construction offers durable protection against moisture and corrosion, lowering maintenance costs and extending service life in outdoor applications. The two-gang design reduces the number of separately mounted boxes, shortening installation time and reducing material costs, while NEC/CEC and UL certifications help minimize compliance-related downtime and rework.
