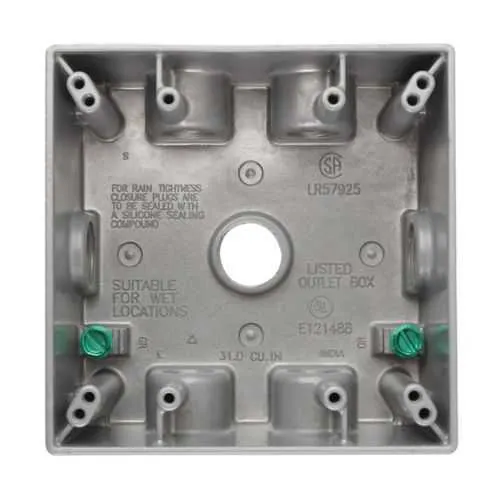

Eaton TP7125 Weatherproof Outlet Box - NEMA 3R
Part Number: TP7125
Quick Summary
TP7125 weatherproof outlet box from Eaton provides rugged, outdoor-ready enclosure for electrical connections. A common challenge is protecting wiring in harsh environments while meeting code requirements and maintenance constraints. This model carries NEC/CEC compliance, a NEMA 3R rating, and suitability for Ordinary/Non-Hazardous Locations, delivering dependable protection across seasons. Its 31.0 cu in capacity and two-gang, side-entry design accommodate multiple conductors while keeping installation predictable. The die-cast aluminum construction, gray finish, and Eaton engineering support translate into lower lifecycle costs and fewer field downtimes. This combination supports faster project delivery and predictable maintenance budgets for outdoor electrical infrastructure.
Product Information
Extended Description
TP7125 Eaton: Eaton Crouse-Hinds series weatherproof outlet box, 31.0 cu in capacity, Gray, 2" deep, Die cast aluminum, Two-gang, (7) 1/2" outlet holes, Rectangular, side entry
Product Name
Eaton Crouse-Hinds series weatherproof outlet box
Catalog Number
TP7125
UPC
662276949355
Product Length/Depth
4.51 in
Product Height
2.26 in
Product Width
4.51 in
Product Weight
0.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Number of gangs
Two-gang
Depth
2"
Type
Rectangular, side entry
Outlet holes
(7) 1/2"
Capacity
31.0 cu in
Color
Gray
Material
Die cast aluminum
Crouse-Hinds series Weatherproof portfolio catalog pages
Weatherproof Outlet Boxes and Covers Canadian certification
Weatherproof Outlet Boxes and Covers Canadian certification
TP7125 PDF drawing
TP7125 PDF drawing
Eaton Specification Sheet - TP7125
Feature: Two-gang design provides 31.0 cu in of interior space, enabling multiple conductors and future expansion. Business impact: reduces field splices, lowers overheating risk, and accelerates panel assembly. Application: ideal for outdoor control panels, pump stations, and conveyor-related enclosures where space efficiency and reliability are essential. Feature: Die-cast aluminum construction with a gray finish delivers corrosion resistance and structural integrity in non-hazardous outdoor locations. Business impact: longer service life, lower maintenance costs, and fewer downtime events. Application: outdoor equipment housings, irrigation boxes, and weather-exposed control enclosures. Feature: Side-entry rectangular design simplifies conduit routing in tight workspaces. Business impact: minimizes elbow fittings, speeds installation, and improves seal integrity. Application: field installations with restricted access or awkward routing near equipment. Feature: (7) 1/2" outlet holes and 2" depth provide flexible knockouts for diverse wiring configurations. Business impact: reduces need for adapters, lowers material waste, and supports NEC/CEC compliant layouts. Application: control circuits and power distribution in outdoor environments. Feature: NEMA 3R rating and NEC/CEC compliance for Ordinary/Non-Hazardous locations. Business impact: ensures code-compliant protection against moisture and corrosion, simplifying procurement and inspection. Application: outdoor control panels, equipment pads, and street-side installations. Feature: Compatibility with standard dimensions and side-entry access enhances installation planning and interchangeability with related Eaton weatherproof boxes. Business impact: reduces SKU fragmentation, improves maintenance planning, and delivers a cohesive product ecosystem for lifecycle cost savings. Application: system integrators and facilities teams managing mixed weatherproof enclosures.
Get a Quick Quote for a Eaton TP7125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP7125?
Enquire Now
FAQs
TP7125 is a two-gang weatherproof box with a 4.51 x 4.51 in footprint and 2 in depth. For installation, plan side-entry conduit connections, secure mounting to a rated base, and maintain sealing with appropriate gaskets. The seven 1/2 in knockouts provide flexible wiring layouts, while the aluminum die-cast body offers corrosion resistance in ordinary locations.
TP7125 carries NEC/CEC compliance and a NEMA 3R rating, indicating protection against rain and corrosion in non-hazardous outdoor locations. This combination supports code conformance for outdoor installations and helps simplify inspections. The Ordinary/Non-Hazardous Locations designation further clarifies suitability for typical outdoor environments without hazardous materials.
The TP7125 excels in outdoor control panels, irrigation and pumping stations, and equipment housings on conveyors or street-side installations. Its two-gang design, side-entry access, and 31.0 cu in capacity accommodate multiple conductors and devices while maintaining compact enclosure dimensions, making it a versatile choice for weatherproof power and control wiring.
Support materials include the Eaton Crouse-Hinds weatherproof portfolio, CAD drawings, and the ETR TP7125 specification sheet. There are UL Canada certifications for weatherproof outlet boxes and covers, and detailed drawings in PDF and SLDDRW formats to assist with layout planning and installation verification.
The die-cast aluminum construction and NEMA 3R protection reduce corrosion-related maintenance and downtime in outdoor environments. The box’s ample interior space and side-entry design streamline wiring and future expansion, lowering installation time and change-out costs. Overall, the TP7125 supports longer service life with fewer field interventions, delivering a favorable lifecycle ROI for industrial facilities.
