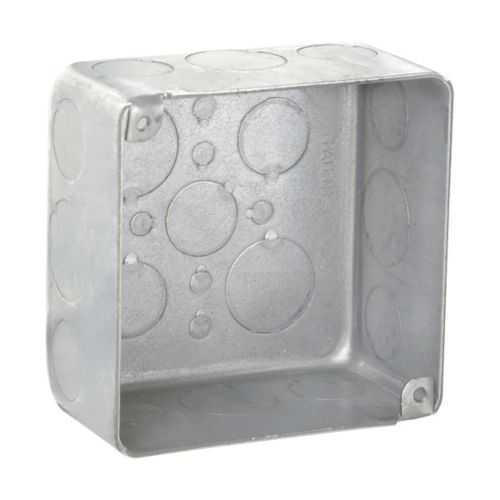

Eaton TP831 Square Outlet Box - 4 in Steel - Air Plenum
Part Number: TP831
Quick Summary
Eaton TP831 Square Outlet Box provides a rugged enclosure for electrical terminations in industrial control panels. The primary challenge for engineers is finding a durable, code-compliant box that can handle conduit runs without complicating installation. This enclosure aligns with NEC and CEC standards and is UL certified for ordinary non-hazardous locations, supporting safe operation in typical plant environments. Its steel construction and air plenum feature deliver reliable performance, while the 4 inch box size and 30.3 cubic inch capacity help accommodate multiple conductors. For manufacturers and maintenance teams, this enclosure offers compatibility with standard conduit systems and faster field installation, reducing downtime and total cost of ownership.
Product Information
Extended Description
TP831 Eaton: Eaton Crouse-Hinds series Square Outlet Box, (3) 1/2", (2) 3/4", 4", Conduit (no clamps), Drawn, 2-1/8", Steel, (8) 1/2", (4) 3/4", Air plenum, 30.3 cubic inch capacity
Product Name
Eaton Crouse-Hinds series square outlet box
Catalog Number
TP831
UPC
786189108316
Product Length/Depth
4 in
Product Height
2.13 in
Product Width
4 in
Product Weight
0.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Box size
4"
Capacity
30.3 cubic in
Depth
2-1/8"
Conduit/cable
Conduit (no clamps)
Construction
Drawn
Side knockouts
(8) 1/2 in, (4) 3/4 in
Bottom Knockouts
(3) 1/2 in, (2) 3/4 in
Material
Steel
Special features
Air plenum
Crouse-Hinds series 4-Inch Steel Square Boxes and Covers catalog page
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
4-Inch Steel Square Outlet Boxes, Covers, Extension Rings UL certification
Steel Outlet Boxes for Electrical Systems
Steel Outlet Boxes for Electrical Systems
Feature: Air plenum enhances airflow and cooling within the box, reducing heat buildup in control panels. Business Impact: Improves reliability of installed electronics and extends component life, lowering maintenance cycles and costs. Application: Use in motor starters and PLC panels where heat management is critical. Feature: 4 inch square box with 30.3 cubic inches of capacity enables flexible conductor packing and easier cable management. Business Impact: Maximizes wiring density while maintaining code compliance, reducing panel size needs and installation time. Application: Industrial automation cabinets requiring compact yet capable enclosures. Feature: Knockouts include eight 1/2 inch and four 3/4 inch side knockouts plus bottom knockouts (three 1/2 inch and two 3/4 inch). Business Impact: Enables multiple wiring routes with minimal fittings, cutting field labor and clamp requirements. Application: On-site conduit routing for complex machine layouts. Feature: Conduit (no clamps) construction speeds assembly and simplifies field modification. Business Impact: Lowers installation costs and minimizes parts inventory. Application: Fast upgrades or reconfigurations in evolving automation lines. Feature: Material and build quality use drawn steel for rugged durability in ordinary locations. Business Impact: Reduces service interruptions and replacement costs in demanding environments. Application: Factory floors, assembly lines, and non-hazardous zones. Feature: NEC/CEC standards compliance and UL certification provide regulatory confidence. Business Impact: Supports code compliance and risk reduction, enabling faster approvals and audits. Application: Quality manufacturing environments needing verified enclosure performance.
Get a Quick Quote for a Eaton TP831
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TP831?
Enquire Now
FAQs
The TP831 features eight side knockouts at 1/2 inch and four side knockouts at 3/4 inch, plus three bottom knockouts at 1/2 inch and two at 3/4 inch. This configuration supports flexible wiring routes and reduces the need for additional fittings, speeding installation and allowing neat, codes-compliant terminations in control panels.
Yes. The TP831 is built to NEC/CEC standards and carries UL certification for ordinary non-hazardous locations. This ensures regulatory compliance, improved safety, and easier approvals for most factory automation environments without special hazardous-location ratings.
The TP831 provides 30.3 cubic inches of internal capacity as a 4 inch square box with a depth of 2-1/8 inches. This space supports multiple conductors and devices, making it suitable for moderately complex automation panel terminations while maintaining code-compliant fill levels.
The air plenum feature promotes better air circulation within the enclosure, helping dissipate heat from mounted devices. This leads to lower operating temperatures, enhanced performance, and extended component life, particularly in densely packaged industrial control panels where heat is a constant concern.
The TP831’s conduit without clamps design reduces assembly time and field modifications. Combined with a drawn steel construction and 4 inch box size, it provides robust durability and faster installs in normal plant locations, delivering lower labor costs and quicker machine readiness for automation lines.
