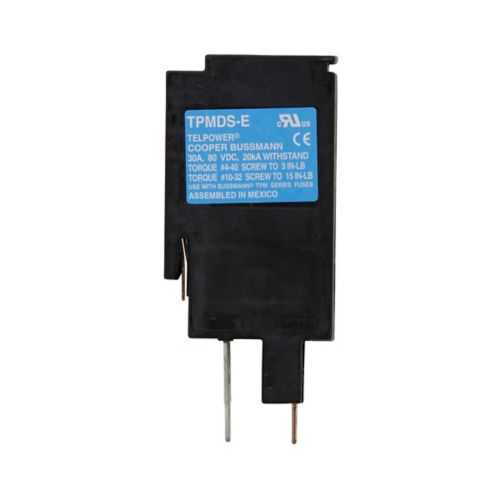

Eaton TPMDS-E fuse disconnect switch - RoHS & CE
Part Number: TPMDS-E
Quick Summary
TPMDS-E fuse disconnect switch from Eaton provides safe isolation for DC circuits in control panels and power distribution. The unit simplifies maintenance by offering a clear, mechanical disconnect with a compact form factor that fits crowded enclosures. A common challenge engineers face is achieving reliable disconnection without compromising wiring density or compliance; TPMDS-E addresses this with a panel-mount design and English hardware that streamlines installation. It is RoHS compliant and CE marked, reducing regulatory risk in global assemblies. By integrating this disconnect switch into your protection scheme, you gain predictable isolation, faster service intervals, and improved traceability across your electrical protection and circuit control deployments.
Product Information
Extended Description
TPMDS-E Eaton: Eaton Bussmann series TPMDS fuse disconnect switch, Disconnect, English hardware, 80 Vdc, 3-30 A, Miniature, fusible, 1/4 In quick connect terminal, Panel, Black, Thermoplastic
Product Name
Eaton Bussmann series TPMDS fuse disconnect switch
Catalog Number
TPMDS-E
UPC
051712672412
Product Length/Depth
1.37 in
Product Height
3.11 in
Product Width
0.58 in
Product Weight
0.4 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
3-30A
Voltage rating
80 Vdc
Color
Black
Material
Thermoplastic
Connection
1/4 inch quick connect terminal
Mounting method
Panel
Special features
Disconnect, English hardware
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - TPMDS-E
Feature: Compact panel-mount design reduces enclosure footprint and wiring complexity, enabling higher pack density in control cabinets. Business Impact: Faster commissioning, reduced labor costs, and more reliable fault isolation. Application: Ideal for DC power protection in drives and power distribution within industrial control panels. Feature: Electrical ratings of 80 Vdc and 3-30 A with a 1/4 inch quick connect terminal. Business Impact: Flexible coverage for a wide range of DC circuits and simplified harnessing reduces installation time and potential connection errors. Application: Suitable for panel installations in manufacturing and process environments requiring quick disconnects. Feature: Thermoplastic housing in black and English hardware. Business Impact: Durable, heat- and impact-resistant enclosure that meets everyday industrial conditions while easing field servicing and replacement. Application: Panel-mounted protection in harsh or space-constrained environments. Feature: RoHS compliant and CE marked. Business Impact: Regulatory peace of mind for global deployments, supporting compliance-driven procurement and traceability. Application: Global control panels, machines, and equipment assemblies with strict environmental standards. Feature: General compatibility and mounting convenience. Business Impact: Straightforward installation with standard panel cutouts and mounting practices reduces project risk and accelerates time-to-operational status. Application: Control cabinets, DC distribution, and drives where reliable isolation is required.
Get a Quick Quote for a Eaton TPMDS-E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TPMDS-E?
Enquire Now
FAQs
TPMDS-E is a miniature fuse disconnect switch used for panel-mounted DC protection. It is designed for control panels and power distribution in industrial environments, offering a compact, reliable disconnect with English hardware for easy installation.
The TPMDS-E provides an amperage range of 3–30 A and a voltage rating of 80 Vdc, with a 1/4 inch quick connect terminal to simplify wiring and reduce installation time in DC circuits.
Yes. The TPMDS-E is RoHS compliant and CE marked, helping meet regulatory requirements for global deployments and ensuring responsible material usage in electrical protection components.
Best suited for panel-mounted DC protection in industrial control systems, including DC drives, power distribution, and control cabinets where reliable isolation and quick-connect wiring are advantageous.
Install TPMDS-E on a panel using its panel-mount design with a 1/4 inch quick connect terminal. The unit features a thermoplastic housing, black finish, and English hardware to facilitate standard installation practices and straightforward maintenance.
