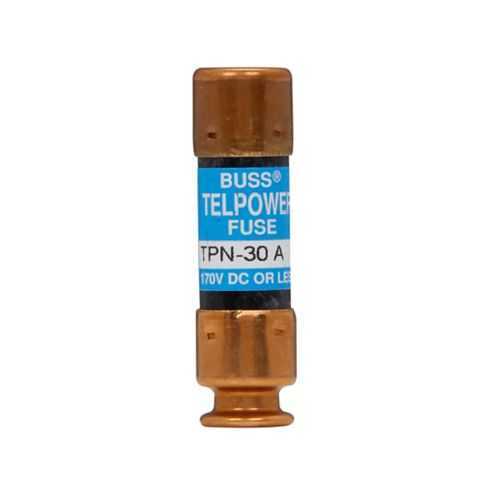

Eaton TPN-30 Telecommunication Fuse - 100 kAIC Rating
Part Number: TPN-30
Quick Summary
The Eaton TPN-30 telecommunication fuse provides fast, reliable overcurrent protection for telecom equipment and data-network applications. Engineers often battle nuisance fuse openings and downtime while protecting sensitive telecom gear in compact, crowded panels. Note: The data lists Compliances as Not Applicable, so verify CE/UL or regional regulatory requirements for your project before deployment. Its current-limiting design and ferrule-end connections simplify installation and reduce maintenance costs, while the compact form supports dense panel layouts. This solution fits well in data centers, network cabinets, and DC distribution enclosures, delivering dependable protection with straightforward deployment and ongoing operational savings.
Product Information
Extended Description
TPN-30 Eaton: Eaton Bussmann series TPN telecommunication fuse, 170 Vdc, 30 A, 100 kAIC, Non Indicating, Current-limiting, Ferrule end X ferrule end, Silver-plated terminal
Product Name
Eaton Bussmann series TPN telecommunication fuse
Catalog Number
TPN-30
UPC
051712196802
EAN
5027590114059
Product Length/Depth
0.56 in
Product Height
2 in
Product Width
0.56 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
30 A
Interrupt rating
100 kAIC
Voltage rating
170 Vdc
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
TPN-30~TELPOWER FUSE
TPN-30~TELPOWER FUSE
Bussmann series Fuseology
Eaton Specification Sheet - TPN-30
Feature 170 Vdc rating and 30 A amperage rating provides robust protection for DC telecom power rails. Business Impact: Prevents equipment damage from overcurrent events and reduces downtime in critical networks. Application: DC power distribution units and telecom enclosures benefit from reliable, fast fault clearance. Long-tail keywords: DC circuit protection, telecom power rail protection. Feature Current-limiting and high interrupt rating (100 kAIC) minimizes fault energy and arc opportunities. Business Impact: Lowered thermal stress and wiring damage, extending component life and lowering maintenance costs. Application: Rack-mounted telecom systems and data-network gear. Feature Ferrule-end x ferrule-end connections with silver-plated terminals improve contact reliability and ease of installation. Business Impact: Faster, more secure wiring harnessing and fewer field failures. Application: Assembly with standard ferrule crimp tooling in cabinet backplanes. Feature Compact dimensions and weight (0.56 in L, 0.56 in W, 2 in H; 0.5 lb) support dense layouts. Business Impact: Saves panel space and simplifies stocking, enabling higher port density. Application: Small-form telecom enclosures and high-density cabinets. Feature Non-indicating fuse reduces visual clutter in panel dashboards. Business Impact: Quicker visual inspection with fewer distractions; easier replacement in high-duty environments. Application: Any installation with limited panel clearance and visible indicators are not required.
Get a Quick Quote for a Eaton TPN-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TPN-30?
Enquire Now
FAQs
The TPN-30 is designed for telecommunication and data-network DC environments. It protects power rails in telecom enclosures, network routers, switches, and DC distribution cabinets. With a 170 Vdc rating and 100 kAIC interrupt capacity, it suits high-energy DC fault scenarios. Ensure ferrule-end terminations are compatible with your wiring harness and crimp tooling.
The TPN-30 carries a 30 A amperage rating, 170 Vdc voltage rating, and 100 kAIC interrupt rating. In practice, this means it can safely interrupt high-energy DC faults and limit fault current to protect conductors and devices. Operate it within these specifications to maximize protection in telecom DC distributions and related gear.
The ferrule-end x ferrule-end design with silver-plated terminals provides reliable crimp connections and low-contact resistance. This simplifies wiring, reduces connection failures in dense panels, and supports quick field replacements with standard crimp tools. It’s especially advantageous in high-density telecom cabinets where secure, repeatable terminations matter.
The data for this model lists Compliances as Not Applicable. Before deployment, verify CE, UL, or other regional regulatory standards required for your project. Always cross-check with your procurement and compliance teams to ensure the part meets local safety and performance requirements in telecom environments.
Expect improved uptime due to robust overcurrent protection and a current-limiting design that minimizes fault energy. The non-indicating fuse reduces panel clutter, while ferrule-term connections speed installation and field service. Over time, these factors translate to fewer fuse replacements, lower maintenance costs, and faster fault diagnosis in dense telecom estates.
