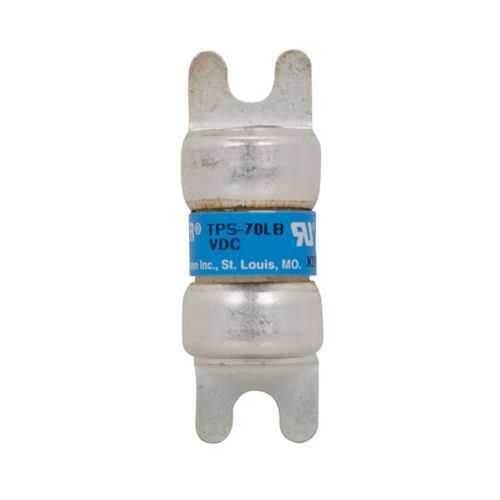

Eaton TPS-70LB Telecommunication Fuse - 100 kAIC
Part Number: TPS-70LB
Quick Summary
TPS-70LB telecommunication fuse protects telecom power distribution in data centers and network cabinets. Engineers often grapple with unexpected outages caused by overcurrent events and nuisance trips in dense rack environments. It is CE-marked and RoHS compliant, supporting global regulatory acceptance and sustainable design. With current-limiting performance and flexible mounting via PCB tab or bolt tag, this fuse delivers reliable protection while reducing installation time and panel complexity for telecom applications.
Product Information
Extended Description
TPS-70LB Eaton: Eaton Bussmann series TPS telecommunication fuse, PCB tab, bolt tag, 170 Vdc, 70 A, 100 kAIC, Non Indicating, Current-limiting, Glass melamine tube, Silver-plated brass ferrules
Product Name
Eaton Bussmann series TPS telecommunication fuse
Catalog Number
TPS-70LB
UPC
051712562225
EAN
5027590185394
Product Length/Depth
0.51 in
Product Height
1.5 in
Product Width
0.3 in
Product Weight
0.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
70 A
Interrupt rating
100 kAIC
Voltage rating
170 Vdc
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
PCB tab, bolt tag
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - TPS-70LB
Bussmann Telpower TPS non-indicating power distribution fuses data sheet no. 5009
Bussmann Telpower TPS non-indicating power distribution fuses data sheet no. 5009
Datasheet - FNQ-30
Feature: 70 A, 170 Vdc ratings with 100 kAIC interrupt capability provide robust protection for DC telecom power rails. Business Impact: Rapid fault clearing minimizes equipment damage and downtime in mission-critical networks. Application: Suitable for telecom distribution panels, data centers, and network cabinets requiring high-current protection without nuisance trips. Feature: Non-indicating design reduces panel maintenance and simplifies visual inspection while enabling clean, low-profile assemblies. Business Impact: Lower maintenance costs and less panel clutter in high-density deployments. Application: Large-scale data centers where signaling indicators are managed remotely. Feature: PCB tab and bolt tag mounting options offer installation flexibility across diverse panel geometries. Business Impact: Faster field installation and easier retrofits in existing telecom racks. Application: Board-mounted fuses in compact telecom power distribution units. Feature: Glass melamine tube construction with silver-plated brass ferrules delivers durability and reliable arc-quenching. Business Impact: Longer fuse life and consistent performance in harsh environments. Application: Outdoor or cabinet-adjacent telecom enclosures with vibration and thermal stress. Feature: CE Marked and RoHS compliant ensures global regulatory readiness. Business Impact: Simplifies procurement across multinational projects and supports sustainable design goals. Application: Global telecom deployments and data center installations requiring compliant components.
Get a Quick Quote for a Eaton TPS-70LB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TPS-70LB?
Enquire Now
FAQs
TPS-70LB offers PCB tab and bolt-tag mounting options, allowing flexible integration into diverse panel designs. This compatibility streamlines retrofits and new builds in telecom power distribution units, data centers, and rack-mounted systems, reducing install time and minimizing the need for additional hardware. Ensure mounting holes align with your panel’s tab connectors for optimal contact and reliability.
TPS-70LB is rated at 70 A with a voltage rating of 170 Vdc and an interrupt rating of 100 kAIC. It is a current-limiting, non-indicating fuse with a glass melamine tube and silver-plated brass ferrules, designed for PCB tab and bolt-tag mounting. Typical dimensions are 0.51 in length, 1.5 in height, and 0.3 in width, with a weight of about 0.2 lb.
Yes. The TPS-70LB combines high interrupt capability with compact form factor, making it ideal for DC telecom power rails in data centers and rack-mount distributions. Its non-indicating profile reduces panel clutter, while its robust ratings help protect essential equipment from overcurrent events, supporting uptime and service level objectives.
TPS-70LB is CE-marked and RoHS compliant, meeting European regulatory requirements and restricting hazardous substances. These certifications facilitate cross-border procurement, supply chain compliance, and sustainability goals, which are critical for multinational deployments and OEM integration in telecom and data center environments.
Because TPS-70LB is non-indicating, maintenance plans rely on periodic inspection and external signaling as needed. Its high 100 kAIC interrupt rating and current-limiting behavior reduce arc energy and equipment wear, lowering downtime and replacement costs over the fuse's operational life. This translates to improved system reliability and lower total cost of ownership in complex telecom deployments.
