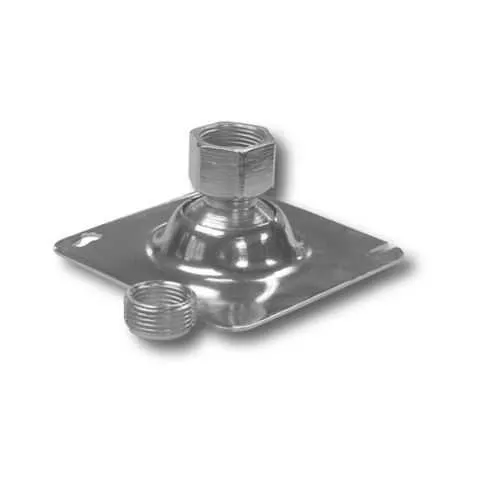

Eaton TPSFH12 Flexible Fixture Hanger - NEC/CEC
Part Number: TPSFH12
Quick Summary
Eaton TPSFH12 Flexible Fixture Hanger is a mounting accessory that secures luminaires to 4 in square boxes in industrial electrical installations. When space is tight and surfaces are crowded, precise alignment and dependable support are critical to prevent misfixture and rework. UL-listed for US and Canada, NEC/CEC compliant, and suitable for Ordinary/Non-Hazardous Locations. Built from sheet steel, it supports up to 50 lb luminaires with 1/2 in or 3/4 in stems, simplifying installation and reducing hardware count. Designed to work with common 4 in square boxes, TPSFH12 streamlines installation, improves field reliability, and supports efficient maintenance across lighting and emergency systems. This is especially valuable in facilities with frequent fixture changes and stringent code audits.
Product Information
Extended Description
TPSFH12 Eaton: Eaton Crouse-Hinds series TPSFH flexible fixture hanger, 50 lb, 1/2" or 3/4" luminaire stem size, Sheet steel, Used with 4" square boxes
Product Name
Eaton Crouse-Hinds series TPSFH flexible fixture hanger
Catalog Number
TPSFH12
UPC
784564002631
Product Length/Depth
4 in
Product Height
2.5 in
Product Width
4 in
Product Weight
0.66 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Used with
4" square boxes
Luminaire rated weight
50 lb
Luminaire stem size
1/2" or 3/4"
Material
Sheet steel
Crouse-Hinds series TPSFH, TPRFH Fixture Hangers and Sway Adapters catalog page
TPSFH and TPRFH Flexible Fixture Hangers UL certification
TPSFH and TPRFH Flexible Fixture Hangers UL certification
Eaton Specification Sheet - TPSFH12
The TPSFH12 supports luminaires up to 50 lb and accepts 1/2 in or 3/4 in stems. This directly translates to a shorter install window and fewer field modifications, since you can match common fixture diameters without special hardware. In practice, technicians place the hanger on the 4 in square box and align the luminaire stem, completing a secure mount in minutes. Built from sheet steel, it offers solid durability and heat resistance, delivering long service life in typical industrial environments. The compact profile—4 in by 4 in with a 2.5 in height and 0.66 lb weight—enables easy handling and minimizes added mass on box connections, reducing stress on mounting points. NEC/CEC compliance and UL listings for US/Canada ensure code conformance and reliability, while simple integration with 4 in square boxes reduces installation time and rework. Note: outdoor or hazardous locations require appropriate enclosures.
Get a Quick Quote for a Eaton TPSFH12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TPSFH12?
Enquire Now
FAQs
TPSFH12 installs on standard 4 in square boxes using the box mounting screws. The hanger supports luminaire weights up to 50 lb and accepts 1/2 in or 3/4 in stems. Hardware specifics are not included; use appropriate screws per your box manufacturer guidelines and ensure a secure, code-compliant mount before wiring.
Key specs include a 50 lb luminaire rating, 1/2 in or 3/4 in luminaire stems, sheet steel construction, and 4 x 4 in footprint with 2.5 in height. It is rated for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, with UL listings for US and Canada, ensuring reliable, code-compliant performance.
TPSFH12 is intended for Ordinary/Non-Hazardous Locations and is not rated for outdoor exposure or hazardous environments. For high vibration applications, ensure secure mounting and consider enclosure or additional support as needed. The sheet-steel construction provides durability, but the product lacks an IP rating for weatherproofing.
TPSFH12 carries NEC/CEC standards compliance and UL listings for both the US and Canada. It is intended for Ordinary/Non-Hazardous Locations, supporting code compliance during audits and reducing the risk of non-conformance in typical industrial facilities.
The fixture hanger reduces installation time by aligning with standard 4 in square boxes and 1/2 in or 3/4 in stems, cutting labor and rework. UL/NEC/CEC compliance adds confidence for inspections, while durable sheet steel construction minimizes maintenance challenges and extends service life in non-hazardous environments.
