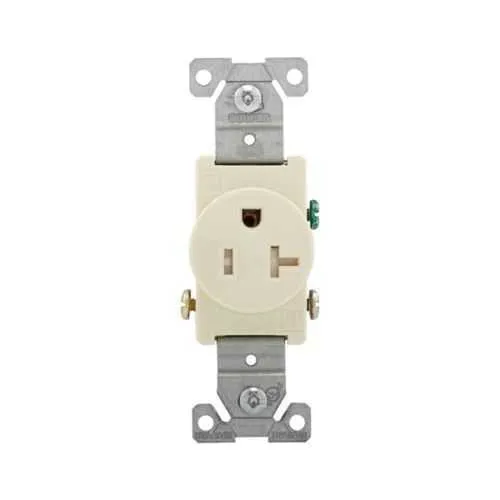

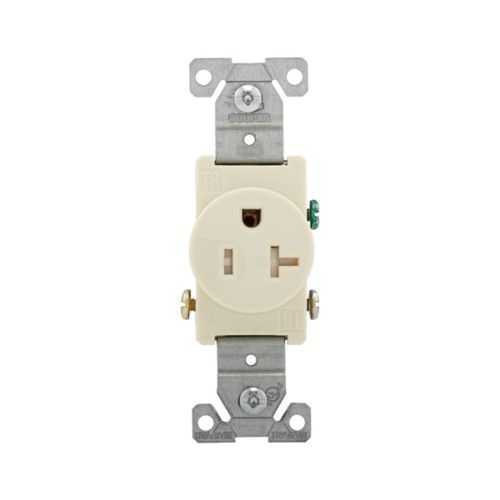

Eaton TR1877A-BXSP Receptacle - cULus Listed Commercial
Part Number: TR1877A-BXSP
Quick Summary
The Eaton TR1877A-BXSP receptacle delivers commercial-grade power for flush installations in commercial spaces. Users frequently struggle with tamper risks, unreliable auto-grounding, and difficult wiring in tight panels. This product carries RoHS compliance and cULus listing, with NOM in qualifying markets, supporting safe, regulator-aligned deployments. With 20A, 125V capacity and NEMA 5-20R configuration, it confidently handles common branch circuit loads. Designed for #14-10 AWG wiring and side connections, it reduces installation time and wiring errors, while offering durability. For project teams, this combination translates into lower field calls, improved safety, and predictable, long-term performance. Its durable PVC body and impact-resistant face help protect against daily wear in busy commercial environments.
Product Information
Extended Description
TR1877A-BXSP Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Flush, 125V, Side, Almond, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Two-pole, Three-wire, Single, Screw, PVC
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR1877A-BXSP
UPC
032664668340
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.155 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Special features
Tamper resistant, auto-grounding, enhanced gound contacts
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant Auto-grounding Enhanced ground contacts
Application
Commercial
Device grade
Commercial
Wiring method
Side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Color
Almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant thermoplastic face
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR1877A-BXSP
Eaton Specification Sheet - TR1877A-BXSP
The TR1877A-BXSP delivers reliable power delivery while simplifying installation in busy facilities. Feature → Business Impact → Application: 20A at 125V with NEMA 5-20R configuration supports common load profiles in offices and retail, reducing the need for improvisation on site; you gain predictable performance and safer electrical distribution in commercial spaces. Feature → Business Impact → Application: Side wiring for #14-10 AWG conductors enables faster terminations and cleaner wall finishes, lowering personnel time and trim costs during fit-outs in data centers and break rooms. Feature → Business Impact → Application: Tamper-resistant design combined with auto-grounding and enhanced ground contacts mitigates safety risk, minimizes nuisance outages, and improves uptime in high-traffic environments. Feature → Business Impact → Application: Brass contact material and PVC body deliver durable, corrosion-resistant performance, extending service life and lowering maintenance cycles in industrial and commercial settings. Feature → Business Impact → Application: Flush mounting saves wall space and simplifies enclosure detailing, supporting code-compliant installations in retrofit projects and new builds. Feature → Business Impact → Application: The 14 lbf-inch torque rating on screw terminals ensures secure, vibration-resistant connections in environments with equipment movement or heavy foot traffic. Applications include commercial offices, retail outlets, and light-industrial fit-outs where reliability and ease of installation matter most.
Get a Quick Quote for a Eaton TR1877A-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR1877A-BXSP?
Enquire Now
FAQs
The TR1877A-BXSP supports flush mounting with side wiring for #14-10 AWG conductors, using a three-wire, two-pole connection (5-20R). This combination streamlines wall-space planning and reduces wiring complexity during office fit-outs and retrofit projects.
It is rated 20A at 125V with a NEMA 5-20R configuration. Features include tamper resistance, auto-grounding, enhanced ground contacts, brass contact material, and a durable PVC body designed for commercial environments, improving safety and longevity.
Yes. Its commercial specification grade design, RoHS compliance, cULus listing, and NOM availability make it well-suited for office fit-outs, retail spaces, and light-industrial applications where reliable, code-compliant outlets are required.
This receptacle is RoHS compliant and cULus Listed, with NOM support in applicable regions. These certifications ensure regulatory compliance, safer materials, and trustworthy performance in regulated markets, reducing risk during audits and inspections.
Benefits include faster installation due to side wiring and flush mounting, reduced field calls thanks to tamper-resistant and auto-grounding features, and longer service life from durable brass contacts and a robust PVC body, yielding lower lifecycle costs over time.
