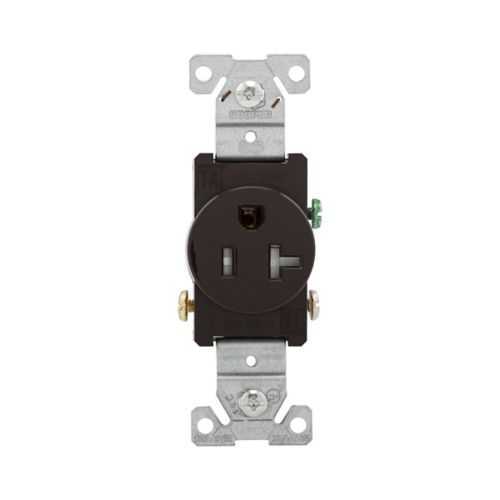

Eaton TR1877B-BXSP Receptacle - cULus Listed NOM
Part Number: TR1877B-BXSP
Quick Summary
TR1877B-BXSP Receptacle is a commercial-grade single receptacle designed for flush-wall installations in commercial environments. Installers often grapple with wiring reliability and code compliance; this unit offers side-wire termination for #14-10 AWG, 20A at 125V, with auto-grounding and tamper-resistant features to simplify safe field connections. It carries RoHS compliance and cULus Listed NOM certifications, underscoring safety and regulatory acceptance in modern facilities. For project teams, the combination of NEMA 5-20R compatibility, durable PVC body, and a compact flush design translates into faster installations, reduced rework, and dependable power distribution across offices, retail spaces, and light industrial settings.
Product Information
Extended Description
TR1877B-BXSP Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Brown, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR1877B-BXSP
UPC
032664668357
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.155 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Brown
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant thermoplastic face
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR1877B-BXSP
Eaton Specification Sheet - TR1877B-BXSP
Feature: 20A, 125V rating with NEMA 5-20R configuration → Business Impact: Supports common commercial loads with a reliable hot-neutral-ground arrangement, reducing voltage drop and ensuring code-compliant power distribution in dense installations → Application: Offices, retail, and hospitality environments. Feature: Side-wire termination for #14-10 AWG with 3 conductors → Business Impact: Streamlined wiring process, quicker field terminations, and fewer connection errors, lowering labor costs during installation → Application: New builds and retrofits where space is constrained. Feature: Auto-grounding and tamper-resistant design → Business Impact: Safer outlets that resist tampering and maintain a solid grounding path, reducing safety incidents and warranty claims → Application: High-traffic work environments and public spaces. Feature: Durable PVC body with impact-resistant thermoplastic face and brass contacts → Business Impact: Longer service life, reduced replacement cycles, and improved resistance to wear in busy commercial areas → Application: Airports, malls, and healthcare facilities. Feature: ED Box packaging and flush mounting method → Business Impact: Faster, cleaner installs with standardized box compatibility, lowering field rework and repaint costs → Application: Retrofit projects and new construction. Feature: RoHS Compliant and cULus Listed NOM certifications → Business Impact: Regulatory alignment across multiple markets, simplifying procurement and compliance audits → Application: Global deployments and certification-driven projects.
Get a Quick Quote for a Eaton TR1877B-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR1877B-BXSP?
Enquire Now
FAQs
The TR1877B-BXSP is a flush-mount, single receptacle designed for standard commercial boxes and ED Box packaging. It uses side-wire termination for #14-10 AWG conductors and accepts three conductors total, enabling straightforward field wiring. Its NEMA 5-20R configuration supports common commercial outlets, simplifying retrofit and new-install projects.
This receptacle includes auto-grounding and tamper-resistant features to enhance safety in public and busy environments. It is RoHS compliant and cULus Listed NOM, ensuring regulatory alignment and reliability across multiple markets, which helps with compliance audits and reduces risk in procurement decisions.
The TR1877B-BXSP is rated for 20A at 125V with a brass contact mechanism. Terminal connections specify a torque value of 14 in-lbf, which ensures secure, long-lasting terminations without over-tightening, minimizing the risk of connection failures during service life.
Ideal for commercial spaces requiring durable, code-compliant outlets, including offices, retail storefronts, healthcare facilities, and light industrial settings. Its flush-mount design, side-wire capability, and NEMA 5-20R configuration make it suitable for high-traffic areas where fast installation and reliable power are essential.
Durable PVC body, impact-resistant face, and brass contacts extend service life and reduce replacement costs. The combination of RoHS and cULus certifications supports sustained regulatory compliance, while ED Box packaging and a straightforward installation process minimize maintenance downtime and labor costs in ongoing facility management.
