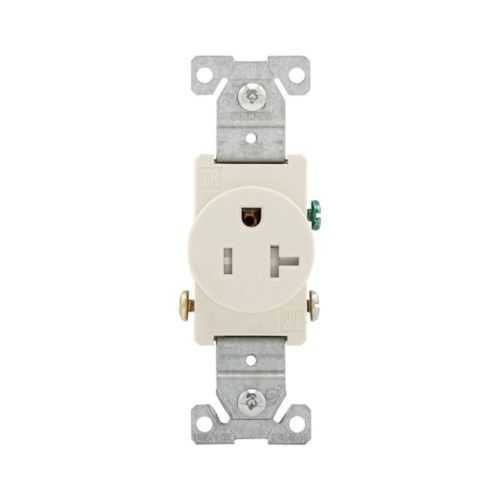

Eaton TR1877LABXSP Receptacle - cULus Listed NOM
Part Number: TR1877LABXSP
Quick Summary
The Eaton TR1877LABXSP Receptacle delivers reliable 125V, 20A power in commercial facilities. It is engineered to withstand daily wear in offices, retail, and light-industrial environments, reducing nuisance outages caused by substandard hardware. This receptacle combines a sturdy PVC body with an impact-resistant thermoplastic face, providing long-term durability and easier cleaning. With auto-grounding and tamper-resistant features, it helps meet modern safety codes without extra steps in installation. The unit supports side-wire connections for fast wiring and a flush-mounting profile that preserves wall aesthetics in high-traffic spaces. By aligning with RoHS and cULus NOM certifications, it also supports compliance programs while offering a cost-effective, maintenance-friendly solution for electrical teams.
Product Information
Extended Description
TR1877LABXSP Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Light almond, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR1877LABXSP
UPC
032664750212
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.155 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant thermoplastic face
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR1877LABXSP
Eaton Specification Sheet - TR1877LABXSP
Feature: 20A, 125V NEMA 5-20R single receptacle provides reliable power for commercial equipment. Business impact: enables consistent outlet availability for POS systems, workstations, and lighting loads, reducing downtime caused by under-rated hardware. Application: suited for flush-mounted installations in ED boxes in office suites, hospitality, and light-industrial settings. Feature: side-wire termination for #14-10 AWG conductors with a 14 lbf-in torque rating ensures secure, code-compliant connections. Business impact: minimizes field re-termination and loosening risk, lowering maintenance calls and extending service life. Application: simplifies contractor wiring in busy installation bays where speed and reliability matter. Feature: PVC body with an impact-resistant thermoplastic face resists impact damage and environmental wear. Business impact: reduces replacement costs in high-traffic environments and simplifies cleaning schedules. Application: hallways, kitchens, and loading zones where frequent contact occurs. Feature: auto-grounding and tamper-resistant design enhances safety and code compliance. Business impact: improves personnel protection and reduces tampering opportunities, helping facilities pass periodic safety audits. Application: essential in schools, healthcare staging areas, and commercial facilities that require robust safety features. Feature: ED Box packaging, color Light almond, flush profile, and NEMA 5-20R configuration. Business impact: streamlines replacement in existing enclosures, preserves wall aesthetics, and supports consistent color-coding in mixed installations. Application: best-fit for remodels and new builds in commercial interiors requiring a standard, commercial-grade straight-blade receptacle.
Get a Quick Quote for a Eaton TR1877LABXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR1877LABXSP?
Enquire Now
FAQs
Install with side-wire conductors sized #14–10 AWG, secure terminals to 14 lbf-in torque, and mount flush in the ED Box using the included screws. Verify polarity and grounding before powering the circuit. This approach minimizes loosened connections and promotes reliable service in busy commercial environments. Ensure power is off, keep tools away from energized parts, and follow local codes during installation.
Yes. The unit is a two-pole NEMA 5-20R receptacle designed for standard commercial panels. Side-wire termination supports common wire sizes (#14–10 AWG), and its flush mount integrates neatly with ED Boxes in office, retail, and light-industrial spaces. This configuration reduces installation time and ensures robust electrical contact for high-traffic environments.
The TR1877LABXSP is RoHS compliant and cULus listed NOM, reflecting compliance with environmental and safety standards for commercial electrical components used in North American facilities. These certifications are especially important for regulated industries such as healthcare, education, and hospitality where consistent electrical safety and material limits matter for audits and maintenance planning.
Its auto-grounding feature and tamper-resistant design enhance safety and reduce failed ground connections. The durable PVC body and impact-resistant face resist wear in high-traffic areas, lowering replacement costs and minimizing maintenance visits in busy facilities. This translates to longer intervals between servicing and lower lifecycle costs for mission-critical environments.
Best suited for commercial offices, retail interiors, corridors, and light-industrial spaces where a durable, standard straight-blade receptacle is required. Its color and flush-mount profile support clean aesthetics while meeting 20A 125V load requirements. This makes it suitable for new builds and renovations where quick replacement and code compliance are priorities.
