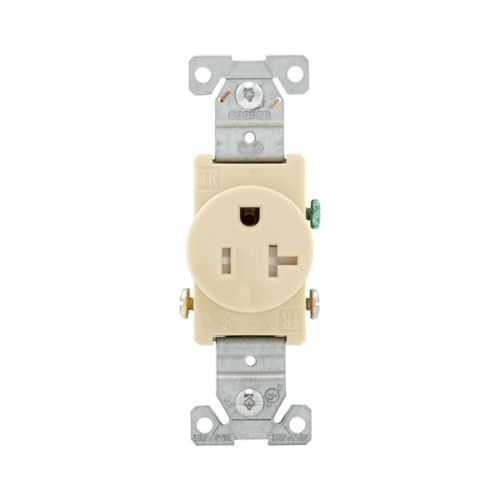

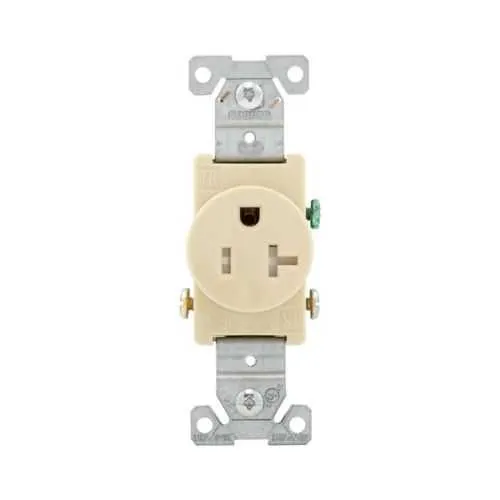

Eaton TR1877V-BXSP Receptacle - RoHS Compliant
Part Number: TR1877V-BXSP
Quick Summary
The Eaton TR1877V-BXSP Receptacle is a commercial-grade single receptacle designed for flush installation in commercial and industrial panels. It addresses common pain points like wear, loose connections, and non-compliant outlets that disrupt uptime in busy facilities. This device carries RoHS compliance along with cULus Listed and NOM certifications, delivering regulatory assurance for North American projects. With side wiring for #14-10 AWG conductors and an auto-grounding, tamper-resistant design, it simplifies field wiring, reduces installation time, and improves safety in dense electrical environments. In addition to its robust exterior, the brass contact hardware and PVC/thermoplastic construction support long-term reliability in high-use applications, making it a solid fit for modern commercial wiring upgrades.
Product Information
Extended Description
TR1877V-BXSP Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Ivory, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR1877V-BXSP
UPC
032664750229
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.155 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face PVC body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR1877V-BXSP
Eaton Specification Sheet - TR1877V-BXSP
Feature: 20A 125V capacity with a NEMA 5-20R configuration. Business Impact: Supports typical commercial loads with reliable power delivery, reducing nuisance trips and overload risk. Application: Office equipment, lighting control circuits, and small motors in retail or healthcare facilities. Feature: Side-wire termination for #14-10 AWG conductors. Business Impact: Streamlines rough-in wiring, minimizes field wiring errors, and speeds installation. Application: New builds and retrofit projects in flush-mount enclosures. Feature: Auto-grounding and tamper-resistant design. Business Impact: Enhances safety, meets NEC and safety standards, and lowers maintenance costs over time. Application: High-traffic commercial spaces like corridors and public areas. Feature: Durable, impact-resistant face with PVC body and brass contacts. Business Impact: Improves reliability in dusty, busy environments and reduces corrosion-related failures. Application: Industrial and commercial installations with frequent use. Feature: Flush mounting, ED Box packaging, and 14 lbf-inch torque rating. Business Impact: Facilitates clean panel aesthetics, easier field assembly, and consistent terminal torque. Application: Receptacle replacements in finished or retrofit panels, with tool-assisted installation.
Get a Quick Quote for a Eaton TR1877V-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR1877V-BXSP?
Enquire Now
FAQs
Install the TR1877V-BXSP by wiring the #14-10 AWG conductors to the side terminals, tightening to the specified 14 lbf-in torque, attaching the ground, and mounting flush in an ED Box. Use the screw connections and the PVC body with the brass contacts for secure, durable operation in commercial enclosures.
The device provides a 20A amperage rating and a 125V voltage rating with a NEMA 5-20R configuration (two poles, single receptacle) and three wires. It uses side-wired terminals, brass contacts, and a 14 lbf-in torque. It is RoHS compliant and cULus-listed NOM for regulatory compliance.
Yes. The receptacle is designed for commercial-grade applications, featuring auto-grounding and tamper-resistant construction, flush mounting, and a durable PVC body with an impact-resistant face. Its 20A/125V rating supports typical office equipment and small motors, while the finish and wiring method suit retrofit and new-install scenarios in busy environments.
The TR1877V-BXSP is RoHS compliant and cULus Listed NOM. These certifications help ensure regulatory compliance, safer material usage, and easier product approval in North American markets, aiding in procurement and warranty considerations for facility managers and electricians.
Durability from the PVC body and brass contacts reduces corrosion and wear, lowering replacement frequency. The tamper-resistant, auto-grounding design reduces safety incidents and maintenance calls. Faster, side-wire installation lowers labor costs while delivering reliable power delivery, contributing to higher uptime and lower lifecycle expenses for commercial electrical systems.
