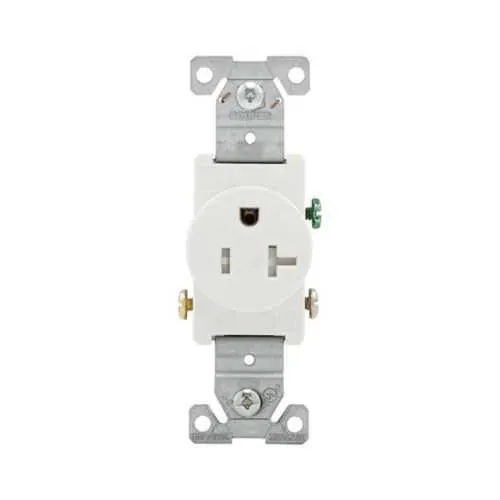

Eaton TR1877W-BXSP Receptacle - cULus Listed NOM
Part Number: TR1877W-BXSP
Quick Summary
The Eaton TR1877W-BXSP receptacle provides a reliable power connection for commercial spaces and light industrial applications. It addresses common pain points like tamper risk, ground faults, and inconsistent installations that slow projects. With RoHS compliance and cULus Listed NOM certification, it supports safe, code-compliant deployments in 125V environments, while maintaining a durable, flush-mount form factor. This combination of reliable conductivity, auto-grounding protection, and straightforward side-wire wiring translates into faster installation, reduced rework, and lower lifecycle costs for facilities teams and electrical contractors.
Product Information
Extended Description
TR1877W-BXSP Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, White, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR1877W-BXSP
UPC
032664750236
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.155 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face PVC body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR1877W-BXSP
Eaton Specification Sheet - TR1877W-BXSP
Feature: 20A, 125V, NEMA 5-20R compatibility. Business impact: reliable power delivery for common office and light-industrial loads, reducing overload risk and downtime. Application: flush-mount commercial outlets in corporate spaces, retail environments, and service rooms. Feature: Auto-grounding and tamper-resistant design. Business impact: enhances safety and code compliance by ensuring ground continuity and preventing contact with live elements. Application: high-traffic areas such as lobbies, classrooms, and shared workspaces. Feature: Side-wire connection for #14-10 AWG. Business impact: speeds installation and minimizes wiring errors with secure screw terminals. Application: retrofit or new construction in ED box assemblies, where quick box-fill and wiring access matter. Feature: Durable construction with impact-resistant thermoplastic face and PVC body. Business impact: long service life in busy environments, resisting impact and wear. Application: wall outlets in commercial corridors, retail counters, and warehouses. Feature: 5-20R NEMA configuration with flush ED Box packaging. Business impact: neat, code-compliant installations with straightforward termination and assembly. Application: standard commercial receptacles in flush-wall installations. Feature: RoHS compliance and cULus Listed NOM certification, brass contact material, and 14 lbf-in torque rating. Business impact: regulatory and environmental compliance, reliable electrical contact, and consistent torque for repeatable terminations. Application: procurement-ready for regulated markets and repeatable field installations.
Get a Quick Quote for a Eaton TR1877W-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR1877W-BXSP?
Enquire Now
FAQs
The TR1877W-BXSP is a 20A, 125V single receptacle with a 5-20R NEMA configuration. It is designed for standard commercial outlets and supports typical office equipment, computers, and peripheral devices compatible with 125V circuits.
Installation involves mounting the ED box and flush-mounting the receptacle, wiring via the side terminals to #14-10 AWG conductors, and tightening screws to the recommended torque of 14 lbf-in. Ensure power is off, and verify ground continuity for a safe, compliant connection.
Yes. The receptacle features tamper-resistant design for safety and auto-grounding to ensure ground continuity without additional steps, helping meet safety and building-code requirements in busy commercial spaces.
The TR1877W-BXSP is RoHS compliant and cULus Listed NOM, aligning with environmental and North American safety requirements for commercial electrical devices used in 125V circuits.
Its durable PVC body and impact-resistant face resist wear in high-traffic areas, reducing replacement frequency. The side-wire terminations and standardized torque promote quicker installs, lowering labor costs and downtime during renovations or upgrades.
