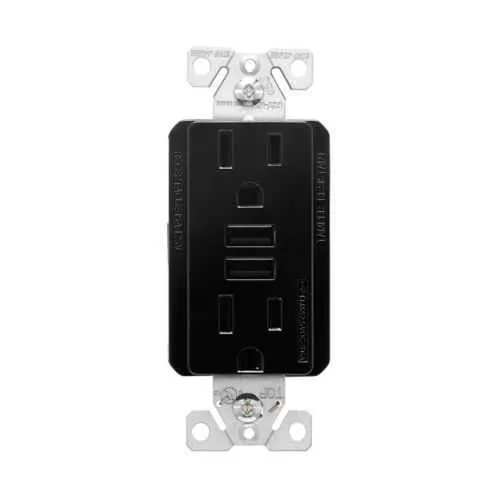

Eaton TR7765BK-BOX USB Charger Receptacle - cULus Listed

The TR7765BK-BOX delivers two functions in one device, reducing panel space and procurement complexity. This configuration translates into measurable efficiency gains on project timelines and inventory costs, since one part replaces a separate charger and a receptacle. Typical applications include office workstations, conference rooms, and retail kiosks where both power and device charging are needed. Flush mounting and tamper resistant design contribute to safety and aesthetics, supporting code compliance in public or shared environments and delivering a neat install with minimal retrofit. Wire termination uses screw terminals for three-wire connections with #12-14 AWG conductors, enabling reliable field terminations and easier serviceability. The 14 lbf-in torque on the terminal screws keeps connections tight, reducing retraining or voltage drop during peak charging periods. The NEMA configuration of 5-15R and Type A receptacle delivers standard compatibility for everyday devices, while brass contact material provides durability and low resistance for efficient charging. With a thermoplastic housing in black, the unit withstands daily commercial use and maintains a clean appearance in high-traffic areas. Overall, this combination outlet enhances installation velocity, simplifies inventory, and aligns with common electrical practices in offices, schools, and retail environments.
