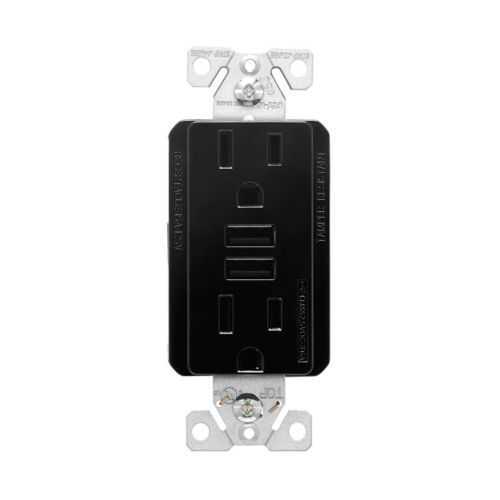

Eaton TR7765BK-KB-L USB Receptacle Charger - cULus Listed
Part Number: TR7765BK-KB-L
Quick Summary
The Eaton TR7765BK-KB-L USB Receptacle Charger powers devices while providing a duplex outlet for workstations. Engineers often contend with separate charging blocks and outlets, which adds wiring clutter and maintenance overhead. This unit carries cULus Listed safety certification, and it is designed for 125 V, 15 A circuits in industrial and commercial environments. The combination USB charger and duplex receptacle simplifies installation by using standard screw terminals and a flush mounting footprint, reducing panel depth and wiring runs. By consolidating charging and power in a single device, you gain faster wiring, easier replacements, and improved compliance in data centers, plant floors, and office spaces through a reliable, tamper-resistant solution.
Product Information
Extended Description
TR7765BK-KB-L Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, BK, #12-14 AWG
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765BK-KB-L
UPC
032664767098
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Black
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature: The TR7765BK-KB-L combines a 3.6A USB charging port with a 15A 125V duplex receptacle. Business impact: Consolidating charging and power reduces wiring runs, minimizes parts count, and speeds panel upgrades. Application: ideal for tool rooms, offices, and industrial workstations where ongoing device charging is needed without sacrificing power outlets. Feature: Tamper-resistant design enhances safety and compliance in high-traffic areas. Business impact: helps meet safety standards and reduces accidental access to live power, lowering risk in manufacturing lines and maintenance bays. Application: factory floors and service counters. Feature: Screw-terminal wiring for #12-14 AWG with flush mounting and NEMA 5-15R compatibility. Business impact: simplifies installation, ensures reliable terminations, and minimizes panel space. Application: retrofit projects and new builds. Feature: Thermoplastic, black decorator face with 2-pole grounding receptacle and USB combination type. Business impact: durable, easy-to-clean finish with quick compatibility across standard faceplates. Application: control panels and workstation kiosks in industrial settings.
Get a Quick Quote for a Eaton TR7765BK-KB-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR7765BK-KB-L?
Enquire Now
FAQs
Installation combines a USB charging port with a 15A 125V duplex receptacle, using standard screw terminals and flush mounting. Plan for #12-14 AWG wiring and ensure a compatible faceplate. The unit accommodates two-pole, three-wire grounding (NEMA 5-15R) and requires securing torque of approximately 14 in-lbf for reliable contact. This reduces panel depth and simplifies retrofit workflows in control panels, offices, and maintenance stations.
Yes. It features a flush-mount design and uses screw-terminal wiring compatible with #12-14 AWG conductors, aligning with common 1-gang or multi-gang boxes and standard decorator faceplates. The NEMA 5-15R configuration provides familiar outlet compatibility, making it suitable for renovation projects and new installations in general electrical environments.
The TR7765BK-KB-L carries a cULus Listed certification, indicating conformity with applicable safety standards for electrical devices in North America. This certification supports compliance in regulated facilities, informs maintenance teams about safe operation, and aligns with facility safety programs during audits and inspections in industrial and commercial spaces.
Ideal for workstations, tool rooms, service counters, and control panels where both charging and power are needed in a compact footprint. Its USB 3.6A charging alongside a standard 15A duplex outlet supports laptops, tablets, and field devices, reducing clutter and providing accessible charging in environments like manufacturing floors, offices, and data-center adjacent areas.
By integrating USB charging with a duplex receptacle, you reduce part counts and wiring complexity, cutting installation time and ongoing maintenance. The tamper-resistant design enhances safety, while flush mounting and durable thermoplastic construction minimize wear. Over time, this translates to lower labor costs during upgrades and replacements, improved uptime, and streamlined compliance in high-traffic industrial environments.
