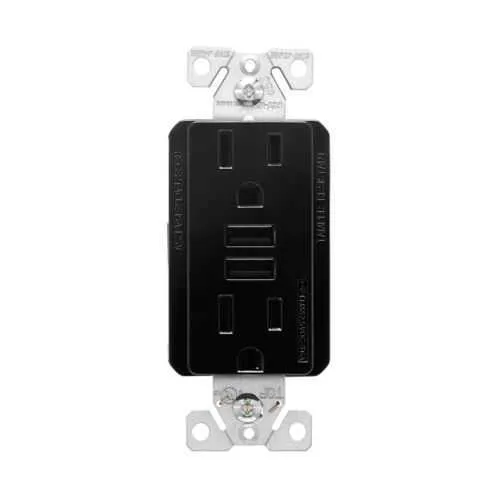

Eaton TR7765BK-KB-LW USB Receptacle - cULus Listed
Part Number: TR7765BK-KB-LW
Quick Summary
Eaton TR7765BK-KB-LW USB Receptacle combines USB charging with a duplex outlet for in-wall installations. Engineers often battle cluttered outlets and downtime from missing chargers, and a single integrated unit can dramatically simplify wiring and maintenance. The unit carries cULus Listed and NOM certifications, supporting code compliance in commercial spaces, while the flush-mount design preserves a clean, decorator-style appearance. With a 15A, 125V rating and a Type A NEMA configuration, it aligns with standard power distributions used in offices, labs, and healthcare facilities. For procurement and facilities teams, the integrated USB port and outlet reduce inventory, streamline sourcing, and speed commissioning on new or retrofit projects.
Product Information
Extended Description
TR7765BK-KB-LW Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, BK, 5-15R
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765BK-KB-LW
UPC
032664765803
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed NOM
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Gray Black
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature: Combination USB charger and duplex receptacle reduces parts and field connections, speeding commissioning and lowering inventory costs. Business Impact: Simplifies installations, decreases time on site, and lowers overall project risk. Application: Offices, classrooms, and industrial workstations benefit from a single, reliable device instead of multiple components. Feature: Tamper-resistant USB charging delivers 3.6A to devices while enhancing safety and code compliance. Business Impact: Safer, faster charging for shared workspaces and training environments, reducing support calls and device downtime. Application: Universities, hospitals, and call centers with high device turnover. Feature: Screw terminals and three-wire wiring provide secure, low-resistance connections. Business Impact: Improves long-term reliability and reduces rework from loose terminations. Application: Retrofit and new-construction projects where robust field wiring matters. Feature: NEMA configuration 5-15R with 15A/125V rating and decorator-style housing. Business Impact: Broad compatibility with common cords and devices, while preserving interior aesthetics. Application: Commercial offices, labs, and facilities with high occupant density. Feature: Flush mounting and captured blister packaging streamline install time and minimize wall disturbance. Business Impact: Accelerates project timelines and reduces waste, inventory handling, and floor-space disruption. Application: Hotel lobbies, classrooms, and healthcare facilities where speed and appearance matter.
Get a Quick Quote for a Eaton TR7765BK-KB-LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR7765BK-KB-LW?
Enquire Now
FAQs
This device is designed for flush mounting in standard wall boxes using screw terminals and three-wire wiring. It supports #12-14 AWG conductors, enabling straightforward retrofit and new-construction work. Electricians benefit from a single, secure wiring point, reducing risk of loose connections and speeding up installation in busy facilities.
The unit delivers 15A at 125V on the NEMA 5-15R receptacle and includes a built-in USB charger capable of up to 3.6A total. It uses a Type A configuration with tamper-resistant construction, suitable for office, classroom, and lab environments that require reliable power and device charging in one location.
Yes. With cULus Listed and NOM certifications, a thermoplastic decorator housing, and flush mounting, it meets common commercial and institutional requirements. The durable brass contact system and robust construction support continuous use in offices, laboratories, and healthcare facilities while maintaining a clean interior aesthetic.
The TR7765BK-KB-LW carries cULus Listed and NOM certifications, indicating compliance with North American safety and performance standards. These marks help installers meet local codes for commercial and institutional installations, simplifying procurement and reducing risk during audits and inspections.
By merging charging and power in a single unit, facilities teams reduce part counts, simplify procurement, and accelerate commissioning. The integrated USB port supports modern devices while preserving code compliance and interior aesthetics, delivering lower maintenance costs and faster project completion in high-traffic environments.
