Eaton TR7765GY-BOX USB Receptacle Charger - cULus Listed
Part Number: TR7765GY-BOX
Quick Summary
TR7765GY-BOX USB charger with duplex receptacle provides convenient charging at desks, panels, and rugged industrial enclosures. For engineers juggling mixed device loads, cluttered power strips and portable chargers slow response times and complicate maintenance. Key certifications such as cULus Listed validate safety for commercial environments while the Type A 15A/125V rating supports reliable, code-compliant operation. In practice, this unit supports efficient charging without sacrificing receptacle capacity, helping reduce panel footprint and wiring complexity. This makes it easier to retrofit existing installations, minimize panel work, and speed field wiring with screw terminals and defined wire sizes. With a compact profile and brass contacts for reliable mating, technicians gain confidence during commissioning and future changes.
Product Information
Extended Description
TR7765GY-BOX Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, GY
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765GY-BOX
UPC
032664766992
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Gray
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles

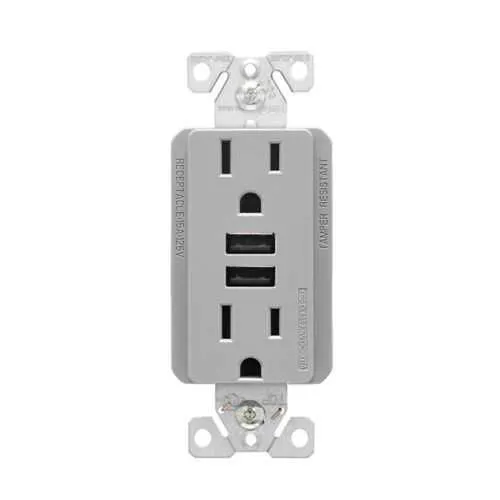

Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature → Business Impact → Application: The TR7765GY-BOX combines a USB charger with a duplex receptacle, reducing part count and panel footprint while delivering 3.6A USB charging alongside a standard 15A 125V outlet. This translates to faster device replenishment for technicians and operators, simplified wiring schemes, and improved space efficiency in control panels and workstation enclosures. Application: ideal for manufacturing lines, packaging cells, and automation bays where equipment power and device charging must coexist without sacrificing reliability. Feature → Business Impact → Application: Type A, 15A at 125V with NEMA 5-15R compatibility ensures code-compliant power delivery from standard supply circuits, minimizing the need for specialized outlets. Application: retrofit projects and new installations in industrial facilities seeking straightforward integration. Feature → Business Impact → Application: Screw terminals plus allowable #12-14 AWG wire size enable clean field wiring, predictable torque (14 lbf-in), and robust termination. Application: maintenance-friendly deployments in harsh environments. Feature → Business Impact → Application: Tamper-resistant USB charging helps prevent accidental charging interruptions and protects sensitive devices in high-traffic areas. Application: healthcare-adjacent or public-facing industrial zones where safety is paramount. Feature → Business Impact → Application: Brass contact material and thermoplastic body provide durable, reliable mating and long service life. Application: panel-mounted outlets subject to frequent use. Feature → Business Impact → Application: Flush mounting yields a neat, vibration-resistant install that fits standard wall boxes and panels. Application: enclosed equipment housings and control panels needing a clean aesthetic and dependable performance.
