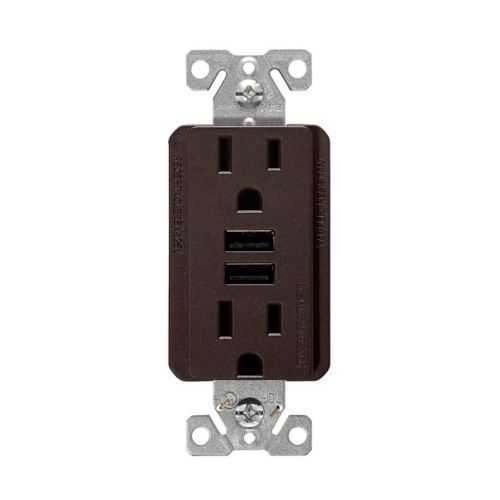

Eaton TR7765RB-KB-L USB Charger Receptacle - cULus Listed
Part Number: TR7765RB-KB-L
Quick Summary
The Eaton TR7765RB-KB-L USB charger receptacle combines USB charging with a duplex outlet for reliable in-wall power. Facility teams often battle bulky power strips and mismatched USB outputs, which drive heat, clutter, and maintenance headaches. This device is cULus Listed, ensuring safe, code-compliant installations in commercial and light-industrial spaces. By integrating charging and regular receptacle functions, it reduces wiring complexity and supports flush-mount installations in commercial environments. Ideal for offices, labs, classrooms, and light industrial panels, it helps streamline procurement and maintenance while preserving aesthetic appeal. The combination design minimizes the number of mounting openings and reduces chase wiring in panels. With a robust 3.6A USB charge and durable thermoplastic body in oil rubbed bronze, it withstands demanding industrial environments.
Product Information
Extended Description
TR7765RB-KB-L Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, RB
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765RB-KB-L
UPC
032664767142
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Oil rubbed bronze
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature: Tamper-resistant design with integrated 3.6A USB charging. Business impact: Enhances safety by preventing accidental contact and reducing tampering while delivering reliable charging performance. Application: offices, labs, classrooms where daily device charging occurs. Feature → Business Impact → Application: Combined USB charging with a 15A, 125V duplex receptacle reduces wiring complexity and speeds installations in data centers, offices, and manufacturing floors. Feature → Business Impact → Application: Flush mounting and NEMA 5-15R compatibility ensure a clean, code-compliant wall install with minimal box depth, ideal for renovated spaces and new construction. Feature: Screw terminals for three-wire #12-14 AWG wiring. Business impact: Reliable terminations with low impedance, improving long-term reliability in control panels and industrial enclosures. Feature: Oil rubbed bronze color and thermoplastic body. Business impact: Durable, aesthetically consistent finish that resists wear in high-traffic areas. Feature: Torque rating of 14 lbf-in ensures secure connections. Business impact: Reduces looseness and overheating risks in vibration-prone environments, extending service life.
Get a Quick Quote for a Eaton TR7765RB-KB-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR7765RB-KB-L?
Enquire Now
FAQs
The TR7765RB-KB-L uses screw terminals and accepts #12-14 AWG conductors, designed for flush mounting in standard electrical boxes. Ensure proper polarity, secure the terminals to the specified torque (14 lbf-in), and confirm the box depth accommodates the product profile for a seamless, code-compliant install.
It combines a 15A, 125V receptacle with a 3.6A USB charger in a single, tamper-resistant unit, reducing device clutter and the number of components. Its compact footprint and flush mount support tight rack or panel layouts while meeting commercial safety standards.
Yes. The TR7765RB-KB-L is a two-pole, three-wire grounding receptacle designed for grounding via screw terminals, compatible with standard #12-14 AWG conductors, ensuring safe and reliable operation in most commercial environments.
A 14 lbf-in torque rating ensures tight, consistent terminal connections during installation, reducing impedance, heat buildup, and the likelihood of loose terminations. This improves long-term reliability in panels and enclosures subject to vibration or temperature cycling.
The integrated design lowers component count and installation time, streamlining procurement and reducing maintenance visits. In high-usage spaces like offices and labs, this translates to faster deployments, fewer parts to stock, and better space utilization.
