Eaton TR7765RB-KB-LW USB Charger Receptacle - cULus Listed
Part Number: TR7765RB-KB-LW
Quick Summary
The Eaton TR7765RB-KB-LW USB charger with duplex outlet is designed for industrial enclosures and control panels. Too often engineers battle cluttered outlets, tangled cables, and noncompliant charging solutions inside panels. cULus Listed safety certification supports North American compliance, while the Type A receptacle and 5-15R configuration simplify installations. Its compact 1.4 in depth, 4.19 in height, and 1.3 in width fit tight panels while maintaining robust wiring. With 3.6A USB charging and tamper-resistant design, it speeds device readiness and reduces maintenance cycles for industrial operations. The combination unit also aligns with Wiring & Connectivity needs and supports efficient panel modernization.
Product Information
Extended Description

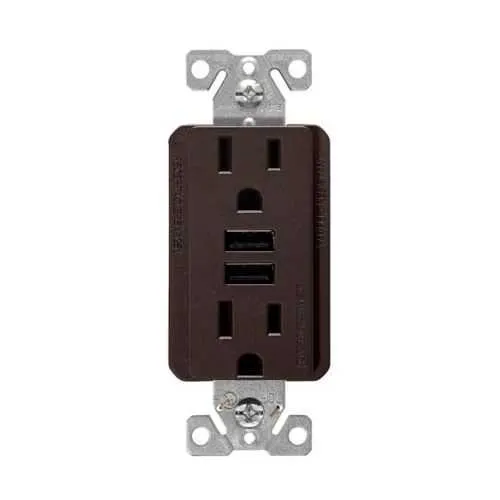

TR7765RB-KB-LW Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, RB, 5-15R
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765RB-KB-LW
UPC
032664767180
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Oil rubbed bronze
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
The TR7765RB-KB-LW integrates a USB charging port with a duplex receptacle, reducing panel footprint and wiring complexity, which translates into faster assemblies and lower stocking costs in industrial environments. Engineers can rely on a single, compliant outlet and charger to support workforce device charging and machinery control panels, improving uptime and operator readiness. The tamper-resistant 3.6A USB charging provides safer, more reliable charging for tablets, handheld controllers, and diagnostic devices, helping to meet NEC expectations and minimize nuisance tampering. Wering with screw terminals and a three-wire, two-pole design enables straightforward field wiring with #12-14 AWG conductors, improving installation speed and reliability. The flush mounting, oil rubbed bronze finish, and thermoplastic body deliver durable performance in harsh industrial settings while maintaining a professional panel appearance. Compatibility with standard 5-15R receptacles supports quick retrofits and reduces rework during upgrades. Torque rating of 14 lbf-in ensures secure connections with minimal tool effort, and the overall design supports cost-effective maintenance and long service life in control cabinets and enclosures.
