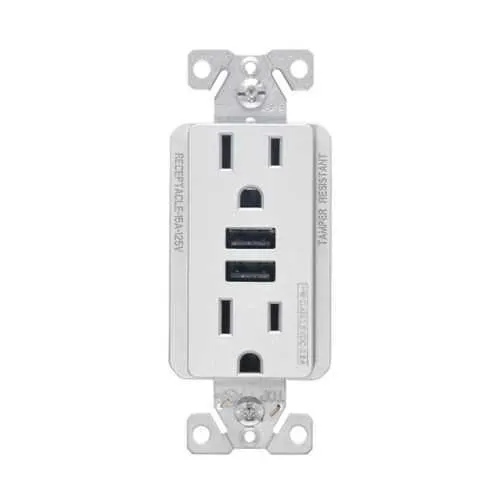

Eaton TR7765SG-KB-L USB Receptacle - cULus Listed
Part Number: TR7765SG-KB-L
Quick Summary
The Eaton TR7765SG-KB-L USB Receptacle combines USB charging with a duplex outlet for easy power access at workstations. Engineers often contend with cluttered outlets and separate chargers, wasting time and complicating maintenance. This device carries cULus Listed safety certification, aligning with North American safety standards and simplifying approvals. In busy offices, breakrooms, and workshops, it minimizes parts to stock and accelerates installation through standard screw-terminal wiring and flush mounting, while delivering a compact, decorator-style solution that supports efficient, code-compliant power delivery.
Product Information
Extended Description
TR7765SG-KB-L Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, SG
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765SG-KB-L
UPC
032664767159
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Silver granite
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature: Integrated USB charging with a duplex receptacle. Business Impact: Consolidates power delivery, reduces clutter, and speeds up code-compliant installations. Application: Offices, classrooms, and service desks. Feature: Tamper-resistant USB charging. Business Impact: Improves safety in busy environments and reduces accidental damage. Application: Hospitals, labs, and public areas. Feature: Screw terminals wiring method. Business Impact: Easier field wiring with reliable connections and compatibility with #12-14 AWG conductors. Application: Retrofit panels and new installations. Feature: Flush mounting and decorator style. Business Impact: Sleek, space-saving faceplates that blend with modern interiors. Application: Corporate offices, hospitality zones, and public kiosks. Feature: NEMA configuration, 5-15R, 15A, 125V, cULus Listed. Business Impact: Broad compatibility with standard circuits and regulatory compliance. Application: General-purpose power and charging in commercial environments.
Get a Quick Quote for a Eaton TR7765SG-KB-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR7765SG-KB-L?
Enquire Now
FAQs
Installation is straightforward with screw terminals designed for #12-14 AWG conductors. Ensure the mounting is flush to the wall for proper faceplate alignment. Follow local codes and use the included captured blister packaging to protect the unit during install. This approach reduces field adjustments and speeds up panel integration in new builds or retrofits.
The TR7765SG-KB-L provides 15A at 125V via a NEMA 5-15R configuration and Type A receptacle. It supports a 3.6A USB charging port integrated into a single device. The wiring method is screw terminals, compatible with #12-14 AWG wire, and it mounts flush for a clean installation in standard wall boxes.
Yes. With a cULus Listed safety certification, a robust thermoplastic body, and a compact decorator style, it is well-suited for commercial offices, hospitality spaces, and light industrial areas where space and safety are priorities. Its tamper-resistant USB charging also helps deter misuse in high-traffic zones.
The device is cULus Listed, meeting North American safety standards for both the USB charger and duplex receptacle. This certification simplifies inspections and ensures regulatory alignment for facilities with standard power and charging needs, reducing risk during audits and installations.
Consolidating charging and receptacle functions reduces the number of parts to stock and replace, lowering maintenance costs. The unit’s durable thermoplastic construction and flush mount design minimize wear and damage in busy environments. The built-in USB charger supports typical devices at 3.6A, speeding reimbursed charging cycles and improving end-user productivity.
