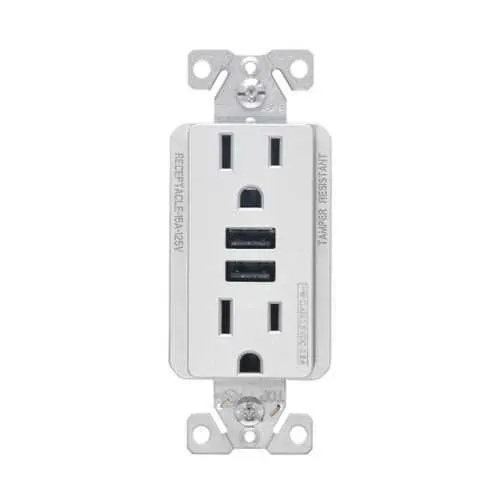

Eaton TR7765SG-KB-LW USB Charger/Receptacle - cULus
Part Number: TR7765SG-KB-LW
Quick Summary
The Eaton USB charger combo provides 3.6 A USB charging alongside a duplex receptacle for general-use outlets in industrial settings. This compact solution reduces wall clutter and eliminates the need for separate charging adapters at busy workstations, lowering maintenance time. It is cULus Listed for North American safety, and its tamper-resistant design enhances protection in high-traffic areas. The combination unit supports standard wiring practices with screw terminals for quick, secure installations, helping projects stay on schedule and on budget. This makes it ideal for manufacturing floors, classrooms, hospitals, and office spaces seeking safer, space-efficient power solutions.
Product Information
Extended Description
TR7765SG-KB-LW Eaton: Eaton combination 3.6A USB charger with duplex receptacle, 15A, 125V, SG, 2-POLE
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TR7765SG-KB-LW
UPC
032664767197
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.793 lb
Certifications
cULus Listed
Type
Type A
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 3.6A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Captured blister
Color
Silver granite
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
USB Duplex Receptacle Devices Brochure
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Combination USB 3.6A charger with TR duplex receptacle
Combination USB 3.6A charger with TR duplex receptacle
Feature: USB charging integrated with a standard duplex receptacle delivers combined power and data charging in one device. Business Impact: Reduces number of wall fixtures, simplifies procurement, and lowers installation labor costs. Application: Ideal for industrial workstations, control rooms, and commercial labs where both devices and charging are required. Feature: NEMA 5-15R receptacle with 125 V, 15 A capability matches common US power circuits. Business Impact: Ensures reliable power delivery to tools, monitors, and peripherals, minimizing downtime. Application: retrofit projects in offices, healthcare, and manufacturing environments seeking familiar outlet standards. Feature: Tamper-resistant design and brass contact material improve safety and durability. Business Impact: Helps meet code requirements and reduces the risk of accidental shock or contact with live conductors. Application: high-traffic facilities, student spaces, and patient-ready environments where safety is paramount. Feature: Screw-terminal wiring method for three-wire connections and flush mounting. Business Impact: Simplifies field wiring, speeds up installation, and provides a neat wall profile. Application: new builds and remodels where tight spaces and clean aesthetics matter. Feature: Thermoplastic construction with silver granite finish resists impact and wear. Business Impact: Improves longevity in busy environments while maintaining a professional appearance. Application: lab benches, industrial panels, and service counters where durability and look matter.
Get a Quick Quote for a Eaton TR7765SG-KB-LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR7765SG-KB-LW?
Enquire Now
FAQs
Yes. The TR7765SG-KB-LW uses screw terminals and supports #12-14 AWG conductors, making it straightforward to wire into standard US circuits. For proper torque and reliability, tighten to the specified 14 lbf-in while ensuring solid conductor seats and strain relief. This reduces field rework and supports reliable, code-compliant terminations in both new installs and retrofit projects.
The unit provides a 3.6 A USB charging capability integrated into a standard 15 A, 125 V receptacle. This combination device eliminates the need for separate USB adapters, enabling simultaneous device charging and appliance use. This is particularly advantageous in offices, labs, and manufacturing floors where compact, all-in-one power solutions improve productivity and reduce wall clutter.
Absolutely. With cULus Listed safety certification and tamper-resistant construction, the TR7765SG-KB-LW is designed for commercial and light to moderate industrial use. It supports flush mounting for a clean wall profile and is built from thermoplastic with brass contacts for durability. It’s ideal for workstations, classrooms, healthcare settings, and service counters where reliable power and charging are needed.
This product is cULus Listed, signifying compliance with North American safety standards for electrical devices. While it focuses on safety certification, it may also align with local electrical codes requiring tamper-resistant outlets in occupied spaces. For project planning, confirm jurisdiction-specific requirements and ensure compatible wiring methods and mounting to maintain code compliance during installation.
The integrated USB charger and duplex receptacle reduces component count, speeding up procurement and installation while lowering long-term maintenance. With a single device handling both charging and outlet needs, facilities can cut labor costs for future replacements, minimize inventory, and improve tenant or end-user satisfaction through cleaner, safer wall installations.
