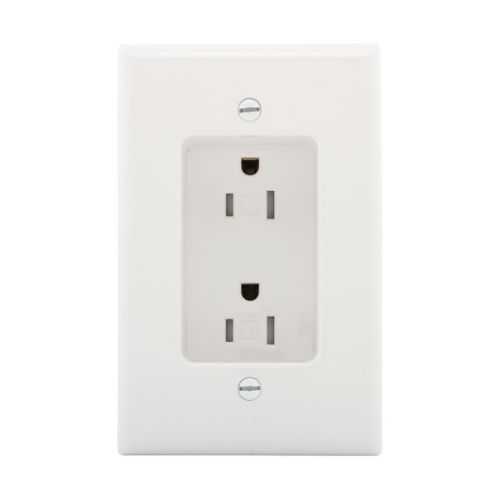

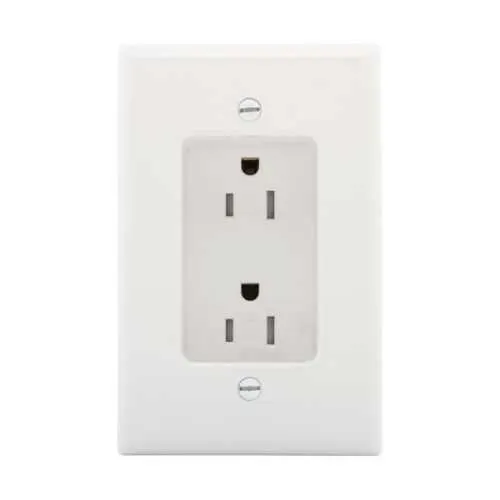

Eaton TR780W-BOX Receptacle - Commercial cULus Listed
Part Number: TR780W-BOX
Quick Summary
The Eaton TR780W-BOX is a commercial-grade decorator duplex receptacle designed for flush-wall installations in busy commercial spaces. Its recessed, tamper-resistant design minimizes accidental contact and protects exposed wiring in high-traffic areas, improving on-site safety. With cULus Listed and NOM certifications, a 15A at 125V rating and brass contact material, it delivers reliable performance and compliance across facilities. For contractors and maintenance teams, the push-and-side wiring for #14-10 AWG and the ED Box packaging streamline installation and stocking, while the white finish blends with most interiors, reducing rework and support calls.
Product Information
Extended Description
TR780W-BOX Eaton: Eaton commercial specification grade decorator duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Push and side, White, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Duplex, Screw, Thermoplastic, ED Box
Product Name
Eaton commercial specification grade decorator duplex receptacle
Catalog Number
TR780W-BOX
UPC
032664750120
Product Length/Depth
2.72 in
Product Height
4.48 in
Product Width
2 in
Product Weight
0.211 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Recessed Tamper resistant
Application
Commercial
Device grade
Specialty standard
Wiring method
Push and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Recessed
Material
Thermoplastic
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TR780W-BOX
Eaton Specification Sheet - TR780W-BOX
Feature: Recessed decorator duplex receptacle with tamper-resistant design → Business Impact: Elevates safety and code compliance in busy commercial spaces; Application: Offices, retail, and hospitality environments. Feature: Push-and-side wiring accepts #14-10 AWG → Business Impact: Faster terminations with reliable connections; Application: New construction and renovations. Feature: Brass contact material → Business Impact: Superior conductivity and durability under frequent use; Application: High-load circuits in commercial rooms. Feature: Thermoplastic face and back body → Business Impact: Impact resistance and long-term aesthetics; Application: Flush installations in ED Boxes. Feature: Flush mounting and ED Box packaging → Business Impact: Neater installations and easier retrofit; Application: Wall outlets and floor box integrations. Feature: 15A, 125V rating with NEMA 5-15R → Business Impact: Broad compatibility with common power needs; Application: Office equipment, lighting, and receptacle circuits. Feature: Color White and recessed design → Business Impact: Consistent appearance with low maintenance; Application: Commercial interiors and healthcare corridors.
Get a Quick Quote for a Eaton TR780W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR780W-BOX?
Enquire Now
FAQs
The TR780W-BOX is designed for flush mounting in ED Boxes using push-and-side wiring that accepts #14-10 AWG. Ensure the box is properly rated for the application and that the receptacle face remains recessed for safety. Tighten terminals to the specified torque (14 lbf-inch) to avoid loose connections and hot spots.
Reliability comes from a brass contact system for durable conductivity, an impact-resistant thermoplastic face and back body for long-term wear, and tamper-resistant features to deter misuse. The device is cULus Listed and NOM certified, supporting consistent performance and compliance across multiple building types.
Yes. Its recessed, tamper-resistant design with a 15A/125V rating and NEMA 5-15R configuration fits standard office equipment and patient-care devices. The flush mounting and white finish provide a clean aesthetic suitable for commercial interiors, while the ED Box packaging simplifies installation in new builds and renovations.
The TR780W-BOX carries cULus Listed and NOM certifications, indicating compliance with national electrical safety and appliance standards. These certifications support code acceptance in many regions and help reduce compliance risk during inspections and audits.
The brass contacts, durable thermoplastic construction, and tamper-resistant design minimize loose connections and physical wear, reducing maintenance calls. The straightforward installation with push-and-side wiring lowers labor time on upgrades, contributing to a faster return on investment and lower total cost of ownership.
