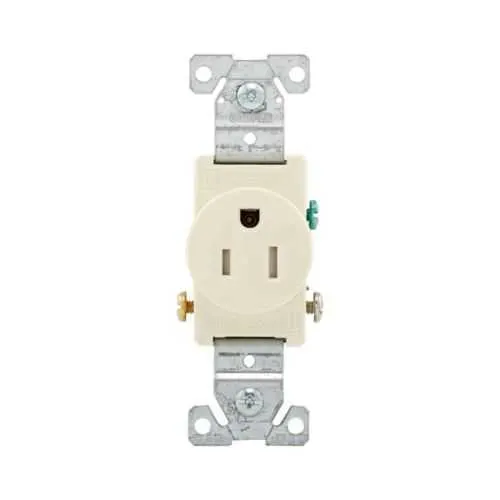

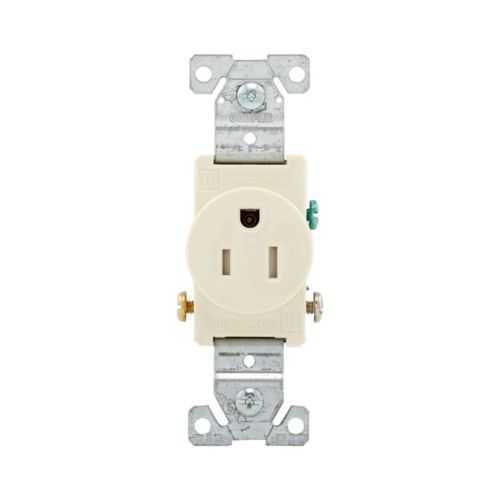

Eaton TR817A-BOX Receptacle - RoHS Compliant, 125V
Part Number: TR817A-BOX
Quick Summary
The Eaton TR817A-BOX Receptacle provides a commercial-grade single 5-15R outlet for 125V circuits. This design reduces wiring errors and noncompliance by using side-wire termination and tamper-resistant construction. It is RoHS compliant and cULus listed NOM, supporting regulatory needs for commercial installations. For contractors, its flush-mount fit with ED Box packaging and a durable PVC face-back body speeds installs while delivering a reliable NEMA 5-15R solution for office, retail, and light-industrial environments.
Product Information
Extended Description
TR817A-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Almond, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR817A-BOX
UPC
032664665400
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR817A-BOX
Eaton Specification Sheet - TR817A-BOX
Tamper-resistant design enhances safety and code compliance in daily operations, reducing potential injuries and costly recalls. Business impact includes fewer field injections of noncompliant components and smoother inspections; ideal for commercial spaces such as offices and classrooms where high traffic occurs. Application: install in flush ED Boxes to meet code requirements without sacrificing ease of use. Side-wire termination enables faster terminations with 14-10 AWG conductors and three-wire configurations, cutting installation time and minimizing miswiring risks in busy installations. Business impact: improved labor efficiency and reduced training time for maintenance teams; Application: hospitals, data centers, and retail environments where quick receptacle swaps matter. Durable PVC face and back body resist impact and scuffing, extending service life in high-use areas. Business impact: lower replacement frequency and total cost of ownership; Application: hallways, warehouses, and service counters where hardware endures daily wear. The standardized 5-15R receptacle with brass contacts maintains reliable electrical performance under typical commercial loads. USPs include 15A at 125V, flush mounting, and compatibility with ED Boxes, delivering consistent performance across multiple outlets; Application: new builds and retrofits in commercial properties. RoHS compliance and cULus NOM certification simplify regulatory planning, while NEMA configuration supports broad interoperability with standard equipment in 125V circuits. These features collectively optimize lifecycle cost and procurement planning for facility managers.
Get a Quick Quote for a Eaton TR817A-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR817A-BOX?
Enquire Now
FAQs
To install, power down the circuit and prepare the ED Box. Use the side-wire terminals to secure #14-10 AWG conductors, tightening to the recommended 14 lbf-in torque. Mount the receptacle flush against the box with the included screws, attach the faceplate, and confirm the NEMA 5-15R orientation. The result is a code-compliant, tamper-resistant outlet ready for 125V service.
The TR817A-BOX is a 15A, 125V receptacle configured as a single NEMA 5-15R. It uses side-wire termination for #14-10 AWG conductors, features brass contact material, and carries a torque rating of 14 lbf-in. The unit is RoHS compliant and suitable for commercial applications with a 3-wire, two-pole configuration.
Yes. Designed as a commercial-grade single receptacle with tamper-resistant features and a flush ED Box installation, it suits offices, retail stores, classrooms, and other high-traffic commercial environments. Its RoHS compliance and cULus NOM certification further support regulatory acceptance in varied commercial projects and jurisdictions.
This receptacle carries RoHS compliance and cULus Listed NOM certifications, indicating conformity with European and North American environmental and safety standards. These certifications reduce regulatory risk, simplify acceptances during inspections, and support long-term reliability in commercial installations across multiple regions.
With a durable impact-resistant thermoplastic face and back body, brass contacts, and a tamper-resistant design, the TR817A-BOX offers extended service life and reduced replacement frequency in busy settings. Its side-wire termination and standard 5-15R configuration also simplify future replacements or upgrades, providing predictable lifecycle costs for facility management teams.
