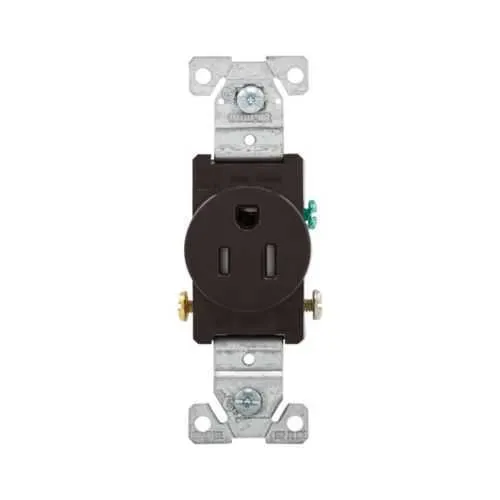

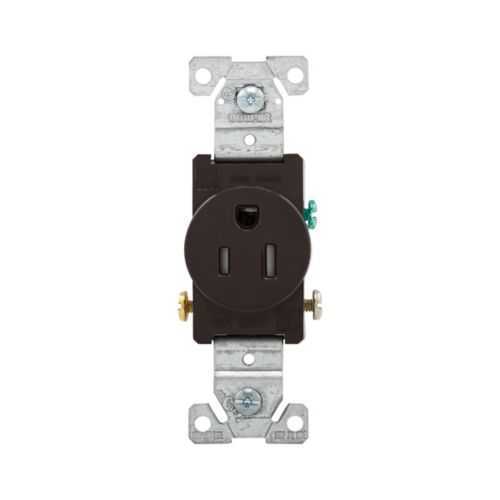

Eaton TR817B-BOX Receptacle - cULus Listed NOM
Part Number: TR817B-BOX
Quick Summary
Eaton commercial specification grade single receptacle delivers reliable flush-mounted power for commercial installations. In busy facilities, subpar outlets can trigger frequent maintenance, loose connections, and non-compliance with code requirements. This model carries RoHS compliance and cULus Listed NOM approvals, reinforcing safety and environmental stewardship in North American projects. For procurement teams, the combination of durable construction and straightforward install translates into lower lifecycle costs, fewer outages, and faster project turnarounds when paired with standard ED Boxes and side-wire wiring. Its commercial-grade design is purpose-built for everyday use in offices, retail, and educational facilities, where reliability matters more than aesthetics. By choosing a standard, compatible receptacle, engineers can ensure consistent performance across multiple jobs.
Product Information
Extended Description
TR817B-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Brown, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR817B-BOX
UPC
032664665417
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Brown
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR817B-BOX
Eaton Specification Sheet - TR817B-BOX
Durable construction and impact-resistant thermoplastic face and back body provide long-term reliability in high-traffic environments. This design minimizes cracking and deformation from daily use, reducing replacement costs and downtime for facilities managers. Ideal for flush-mount installations in commercial walls, it maintains a neat, professional appearance while delivering dependable power delivery. Tamper-resistant and auto-grounding features improve safety and code compliance, reducing risk in classrooms, retail spaces, and open-plan offices, while simplifying inspections and audits. The 15A, 125V NEMA 5-15R configuration with brass contact material ensures dependable current transfer for common equipment and peripherals. Side-wire wiring for #14-10 AWG simplifies terminations, supported by a 14 lbf-inch torque rating for secure connections. ED Box packaging accelerates field installs and retrofit projects, delivering predictable installation outcomes. RoHS compliance and cULus Listing further support regulatory alignment during procurement, reducing compliance overhead and warranty concerns. The brown PVC body and standard face design offer compatibility with a wide range of commercial wiring devices, enabling scalable installations across facilities and projects.
Get a Quick Quote for a Eaton TR817B-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR817B-BOX?
Enquire Now
FAQs
TR817B-BOX is designed for flush-mount installations using standard ED Boxes and side-wire terminations for #14-10 AWG conductors. The 3-wire, two-pole configuration fits common commercial outlets, streamlining retrofits and new builds alike, while maintaining proper clearances and secure screw connections.
This receptacle is rated for 15A and 125V, with a NEMA 5-15R configuration. Brass contact material provides reliable conductivity, and the unit supports side wiring with #14-10 AWG conductors, secured to a torque rating of 14 lbf-in to ensure stable terminations.
Yes, the TR817B-BOX includes tamper-resistant features and auto-grounding to promote user safety and code compliance. These features reduce the risk of unsafe entry of foreign objects and ensure a proper grounding path for connected devices.
The receptacle is RoHS compliant and cULus Listed NOM, supporting regulatory compliance in North American markets and ensuring safer, cleaner manufacturing and disposal processes. These certifications help meet procurement standards and facilitate smoother project approvals.
TR817B-BOX delivers durable, code-compliant power outlets with straightforward installation, reducing maintenance and outage risk. Its robust construction and compliance credentials translate to lower total cost of ownership, faster project completion, and reliable performance across offices, retail spaces, and educational facilities.
