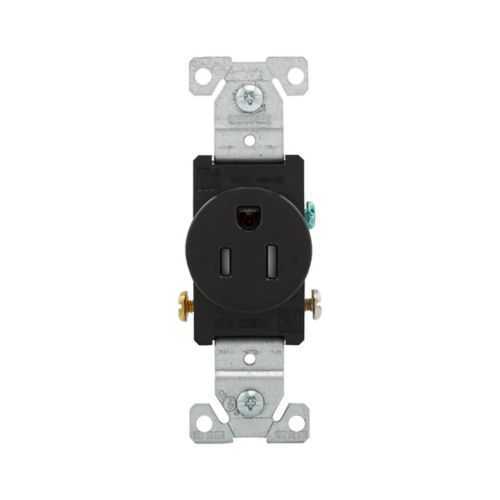

Eaton TR817BK-BOX Receptacle - RoHS Compliant
Part Number: TR817BK-BOX
Quick Summary
Eaton TR817BK-BOX receptacle is a commercial-grade single receptacle designed for flush-mount installations in 125V circuits. In busy electrical spaces, wiring density and reliable grounding can be challenging, but this unit addresses those issues with a compact profile and solid construction. The product carries RoHS compliance and cULus Listed NOM certifications, underscoring safety, environmental responsibility, and regulatory alignment. This combination delivers dependable performance for commercial applications while supporting straightforward installation and long-term maintenance. For engineers and procurement teams, it also complements standard ED Box packaging and a side-wire connection approach, aligning with typical field practices and site-specific constraints.
Product Information
Extended Description
TR817BK-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Black, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR817BK-BOX
UPC
032664665424
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Black
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR817BK-BOX
Eaton Specification Sheet - TR817BK-BOX
Feature → Business Impact → Application: Tamper resistant auto-grounding design reduces incidental contact and enhances safety, lowering risk-based downtime in shared commercial spaces and institutional settings. Application: Office lobbies, hallways, and classrooms where user interaction is frequent. Feature → Business Impact → Application: 15A, 125V rating with brass contacts ensures reliable power delivery for high-demand peripherals and lighting, reducing nuisance trips and service calls in maintenance cycles. Application: Commercial power distribution panels and workstation circuits. Feature → Business Impact → Application: Side-wire wiring for #14-10 AWG conductors simplifies field installation, shortening commissioning time and minimizing connector fatigue in renovation projects. Application: Retrofit installs and new build commercial wiring. Feature → Business Impact → Application: Impact-resistant thermoplastic face and back body provide durable protection against daily wear, lowering replacement costs in high-traffic areas. Application: Education facilities and public facilities. Feature → Business Impact → Application: NEMA 5-15R compatibility with flush mounting and ED Box packaging supports clean, professional aesthetics and compliant installations. Application: Retail, healthcare, and hospitality environments seeking reliable, code-compliant receptacles.
Get a Quick Quote for a Eaton TR817BK-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR817BK-BOX?
Enquire Now
FAQs
TR817BK-BOX supports side-wire installation for #14-10 AWG conductors and ships in an ED Box, enabling flush mounting in standard commercial boxes. The 15A, 125V rating matches typical office and retail circuits, while brass contacts ensure reliable, low-resistance connections. This makes retrofits straightforward and minimizes modifying existing enclosures.
Its commercial-grade design features tamper-resistant and auto-grounding capabilities, RoHS compliance, and cULus NOM listing. The flush-mount profile, NEMA 5-15R configuration, and durable PVC body deliver long-term reliability in busy spaces like offices, classrooms, and reception areas, reducing maintenance calls and enhancing safety.
TR817BK-BOX is RoHS compliant and cULus Listed NOM, providing environmental responsibility and regulatory safety validation. These certifications support code compliance in commercial installations and help streamline procurement and inspection processes for facilities adhering to RoHS and UL standards.
Easy side-wire installation reduces commissioning time, while the durable, impact-resistant PVC face and back body resist daily wear. Tamper-resistant and auto-grounding features minimize safety incidents, lowering maintenance costs and downtime, which translates to faster project completion and improved total cost of ownership for facilities managers.
The unit is a 15A, 125V single receptacle (NEMA 5-15R) designed for 3-wire systems using #14-10 AWG conductors. Brass contact material ensures good conductivity, and a torque rating of 14 lbf-in supports secure terminations. Side-wire connection and flush mounting simplify installation in standard commercial enclosures.
