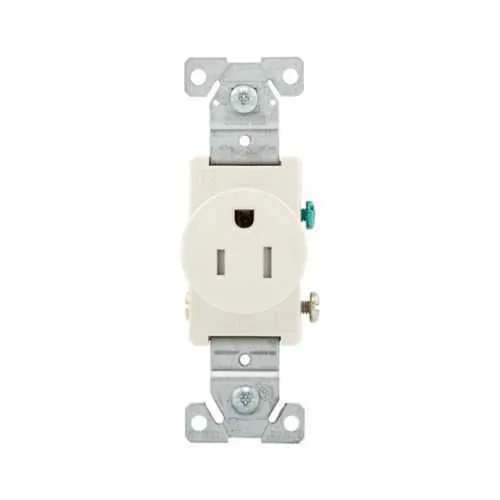

Eaton TR817LA-BOX Receptacle - RoHS Compliant
Part Number: TR817LA-BOX
Quick Summary
Eaton TR817LA-BOX Receptacle delivers a commercial-grade single outlet for flush-mount power in offices, retail, and light industrial environments. Many projects struggle with fast, error-prone wiring and safety compliance during installation. This model carries RoHS compliance and cULus Listed NOM certifications, paired with brass contacts and a durable impact-resistant thermoplastic face and back body. With 15A at 125V, side-wire connections, and a 5-15R configuration, it supports standard commercial needs while helping installers meet schedule demands. The compact ED Box packaging and concise footprint simplify retrofits and new-build wiring in tight spaces. Engineers appreciate predictable torque specifications and compatibility with #14-10 AWG conductors for reliable long-term performance.
Product Information
Extended Description
TR817LA-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Light almond, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR817LA-BOX
UPC
032664665448
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR817LA-BOX
Eaton Specification Sheet - TR817LA-BOX
Tamper-resistant construction with auto-grounding provides a safety-first power path, reducing tamper incidents and ground faults for commercial electrical outlets in high-traffic spaces. This translates to fewer field callbacks and smoother safety inspections, especially in offices, retail floors, and shared work areas where reliability matters. The 15A, 125V, 5-15R configuration ensures broad compatibility with common cords and devices used in everyday workflows, helping facilities avoid costly substitutions or rewiring. Side-wire termination supports fast, error-free wiring and minimizes on-site wiring errors when installing in ED boxes during new construction or retrofit projects. The durable face and back body made from impact-resistant thermoplastic and PVC deliver long service life in demanding environments, resisting impact, heat, and chemical exposure typical of maintenance corridors and electronics rooms. Packaging in an ED Box aids handling and reduces install time, enabling quicker deployments across multiple rooms and facilities. In addition, brass contact material enhances conductivity and longevity, supporting low-resistance power delivery for critical equipment and reducing replacement costs over time.
Get a Quick Quote for a Eaton TR817LA-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR817LA-BOX?
Enquire Now
FAQs
The TR817LA-BOX is designed for flush-mount ED Box installations and uses a side-wire termination method compatible with #14-10 AWG conductors. Its 15A, 125V rating and 5-15R configuration align with standard commercial wiring practices, while the 14 lbf-in torque specification ensures consistent, code-compliant tightness during installation. This makes it a straightforward upgrade for retrofit projects and new-builds in offices and retail spaces.
This receptacle delivers 15A at 125V with a NEMA 5-15R configuration. Built with brass contact material for reliable conductivity, it supports standard cords and equipment found in commercial environments. Features include tamper-resistance and auto-grounding to enhance safety, while RoHS compliance and cULus NOM certification provide regulatory assurance for widespread deployment.
Ideal for commercial settings such as office spaces, retail storefronts, and light industrial environments, the TR817LA-BOX supports flush-mount installations in ED boxes. Its compact footprint and 3-wire configuration (two conductors plus ground) make it suitable for wall or cabinet outlets near workstations, data hubs, and utility closets where dependable, code-compliant outlets are required.
The TR817LA-BOX is RoHS compliant and cULus Listed NOM, providing regulatory compliance for international and domestic markets. These certifications support risk management, facilitate project approvals, and help ensure alignment with typical commercial electrical specifications and safety standards.
Side-wire wiring and a straightforward flush-mount design reduce wiring time and on-site errors, shortening installation schedules for multi-outlet deployments. Durable PVC and thermoplastic construction lower replacement cycles, while the ED Box packaging streamlines handling on-site. Overall, this translates to lower labor costs, fewer field callbacks, and a faster return on investment in retrofit and new-construction projects.
