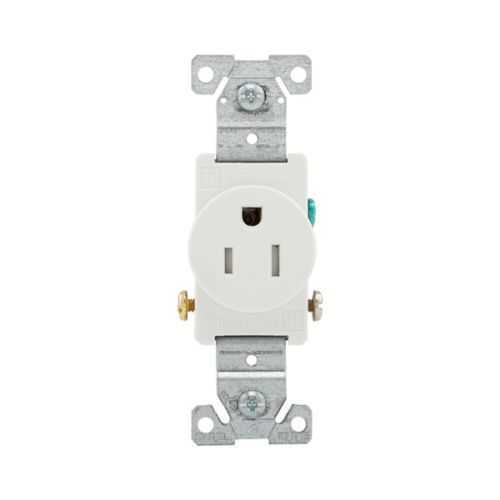

Eaton TR817W-BOX Receptacle - RoHS Compliant
Part Number: TR817W-BOX
Quick Summary
TR817W-BOX single receptacle is designed for reliable commercial wiring installations delivering 15A at 125V. Installers often struggle with durability, compatibility, and fast install times in flush-mount outlets. With RoHS, cULus, and NOM certifications backing its compliance, this receptacle supports dependable, safe commercial deployments. By combining secure side-wire connections for #14-10 AWG, a robust PVC body, and an auto-grounding feature, it reduces installation time and post-sale issues. That translates to fewer field calls and a faster return on investment when outfitting offices, classrooms, retail spaces, or light industrial environments.
Product Information
Extended Description
TR817W-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
TR817W-BOX
UPC
032664665462
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.87 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic face and back body
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - TR817W-BOX
Eaton Specification Sheet - TR817W-BOX
Designed for 15A, 125V circuits in a NEMA 5-15R configuration, the TR817W-BOX delivers dependable power for everyday devices, reducing downtime and service calls in busy commercial environments. The tamper-resistant and auto-grounding features enhance safety and reliability, preventing accidental insertions and ensuring proper grounding for equipment across high-traffic spaces. Its flush-mount ED Box construction with a durable PVC face and back body provides a clean wall profile and resistance to impact, ideal for new-builds or retrofits in offices, schools, and retail settings. Side-wire termination for #14-10 AWG with a torque rating of 14 lbf-in enables secure, repeatable terminations that speed up installation and minimize rework. Compliance credentials (RoHS, cULus, NOM) simplify procurement and regulatory adherence across multi-site deployments.
Get a Quick Quote for a Eaton TR817W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TR817W-BOX?
Enquire Now
FAQs
Install TR817W-BOX by feeding #14-10 AWG conductors into the side terminals and securing with the provided screws to achieve a firm connection. Torque the terminals to 14 lbf-in to ensure a reliable, code-compliant termination. This receptacle is designed for 125V circuits and ships with an ED Box for quick mounting.
The TR817W-BOX is rated for 15 amperes and 125 volts in a NEMA 5-15R configuration. It uses brass contact material for durability, supports side wiring, and features a 14 lbf-in torque rating to maintain secure terminations over the product life.
Yes. It is designed for commercial applications with a flush-mount option, tamper-resistant features, auto-grounding, and RoHS compliance. Its ED Box packaging and standard 5-15R configuration make it a practical choice for offices, classrooms, retail environments, and light industrial settings.
This receptacle is RoHS compliant and cULus Listed with NOM certification. These credentials address environmental impact, product safety, and regulatory compliance, simplifying procurement for projects that must meet electrical codes and environmental standards.
The durable PVC face and back body, plus tamper-resistant and auto-grounding features, reduce service calls and maintenance. Side-wiring supports faster installation for renovations, while the robust construction extends service life, delivering a favorable total cost of ownership for facilities managers.
