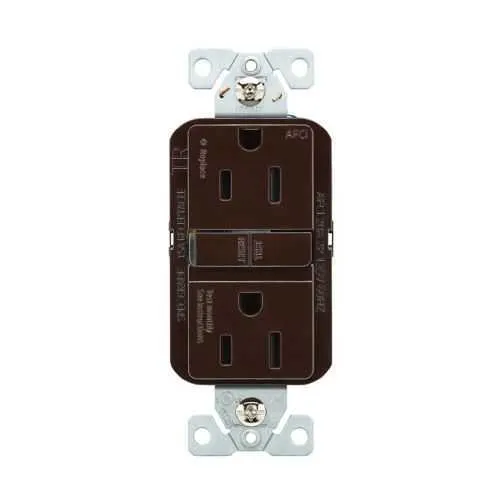

Eaton TRAF15B Slim AFCI Receptacle - cULus Listed
Part Number: TRAF15B
Quick Summary
The Eaton slim AFCI receptacle is designed to deliver reliable arc-fault protection for residential and light commercial outlets. This compact device helps electricians address wiring challenges by delivering robust protection without sacrificing space or aesthetics. With cULus listing, tamper-resistant construction, and a visual trip indicator, it supports safe, code-compliant installations in both new construction and renovations. The receptacle accepts #14–10 AWG conductors via back and side wiring, and its NEMA 5-15R configuration fits most standard plugs in 125V circuits. Built with a brown PVC and polycarbonate face, TRAF15B combines durability with ease of maintenance, reducing service calls and downtime in busy facilities.
Product Information
Extended Description
TRAF15B Eaton: Eaton slim AFCI receptacle, visual trip indicator light, 15 A, 125 V, back wire and side wire, AFCI, brown, brass, tamper resistant, PVC, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF15B
UPC
032664022456
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Brown
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Arc-fault protection with a visual trip indicator light helps technicians detect problems quickly and prevent arc-related fires. This protection improves safety by providing immediate, visible confirmation of a fault condition and clear feedback to maintenance staff. Application: residential living spaces and light commercial outlets where code compliance and rapid fault identification matter. Tamper-resistant design improves child safety and reduces accidental energization in occupied spaces. The integrated tamper-resistant mechanism complies with modern codes while minimizing nuisance trips caused by everyday plug-in activity. Application: new construction and retrofit projects seeking durable, code-ready receptacles in high-traffic areas. Back and side wiring offers flexible installation options, simplifying retrofit work and reducing installation time. This wiring method supports a wide range of conductor sizes (#14–10 AWG) and allows field termination without compromising performance. Application: standard wall outlets in kitchens, living rooms, and break rooms where space is tight. NEMA 5-15R configuration with 125V operation ensures compatibility with most commercial and residential plugs. The device is rated at 15A, delivering reliable power for everyday devices and small appliances. Application: general-purpose outlets in offices, retail, and residential spaces that require consistent performance. Durable brown PVC and polycarbonate face provide robust protection against impact and environmental wear while maintaining a clean appearance. The flush mounting design simplifies installation and reduces protrusion, improving safety and aesthetics in finished walls. Application: new builds and renovations where finish quality matters. Compact form factor and standard 1.37 in depth with 4.19 in height enable easier space planning in crowded switch boxes, reducing wiring congestion. Combined with a 16 lbf-inch torque rating for secure terminations, TRAF15B helps electricians avoid rework and callbacks. Application: dense electrical rooms and retrofit projects.
Get a Quick Quote for a Eaton TRAF15B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF15B?
Enquire Now
FAQs
TRAF15B supports both back and side wiring and accepts conductors from #14 to #10 AWG. This flexibility makes it suitable for new installations and retrofit projects, reducing wiring depth constraints and speeding up termination while maintaining a secure, code-compliant connection.
The TRAF15B carries cULus listing, confirming compliance with UL safety standards for US and Canadian markets. This certification supports code acceptance in both residential and commercial applications and helps inspectors verify proper protection against electrical hazards.
Power off the circuit, remove the existing receptacle, and prepare wiring for back or side termination. Connect #14–10 AWG conductors to the screws or push-in terminals, tighten to the recommended torque of 16 lbf-inch, then mount flush in the wall box and test for proper trip indication and receptacle operation.
Tamper-resistant (TR) design reduces the risk of foreign-object insertion, enhancing safety in occupied spaces. Combined with AFCI protection, it mitigates arc-fault fires and helps meet evolving electrical codes, delivering safer outlets for both homes and small commercial environments with fewer nuisance trips.
The TRAF15B uses a NEMA 5-15R configuration rated at 15A and 125V, compatible with standard 5-15 plugs. It fits typical residential and office outlets and is available in brown with a flush-mount design for a clean wall appearance in new installations or renovations.
