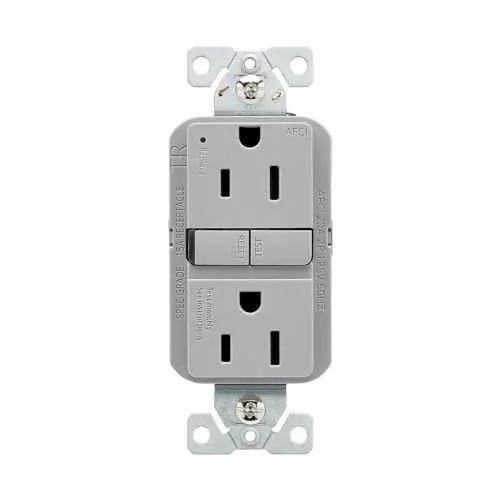

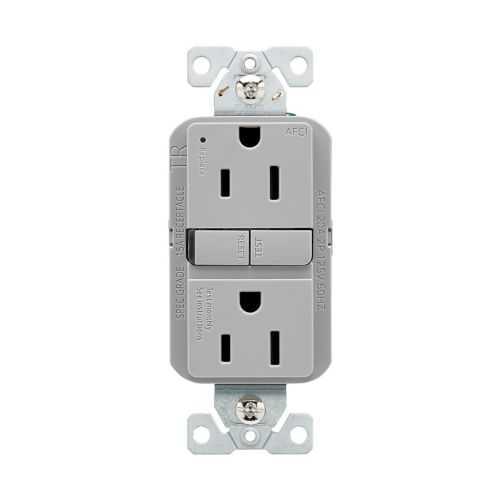

Eaton TRAF15GY Slim AFCI Receptacle - cULus Listed
Part Number: TRAF15GY
Quick Summary
The Eaton TRAF15GY slim AFCI receptacle provides arc-fault protection for residential and light commercial circuits. In retrofit or new-construction projects, space constraints and complex wiring can slow installs; this slim design minimizes wall depth while delivering reliable performance. The device is cULus Listed and tamper resistant, with brass contacts and NEMA 5-15R compatibility to help meet modern electrical codes. Back and side wiring support simplifies termination for #14–10 AWG conductors, while flush mounting reduces visible hardware and improves finish. By combining compact form, robust protection, and familiar 15A/125V operation, it delivers safety, compliance, and faster, cost-effective installations for electricians and specifiers.
Product Information
Extended Description
TRAF15GY Eaton: Eaton slim AFCI receptacle, visual trip indicator light, 15 A, 125 V, back wire and side wire, AFCI, gray, brass, tamper resistant, PVC, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF15GY
UPC
032664022470
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Gray
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature → Business Impact → Application: Slim, flush-mount design minimizes wall depth and drywall cutouts, enabling faster installations and cleaner finishes in retrofit and new-construction projects; improves space utilization in panels and junction boxes, reducing labor and material costs for electricians on residential and light commercial jobs. Feature → Business Impact → Application: Back and side wiring support accommodates #14–10 AWG conductors with flexible termination options, boosting compatibility with existing circuits and simplifying field installs in tight spaces. Feature → Business Impact → Application: Tamper-resistant construction alongside cULus Listed certification delivers code-compliant safety, reducing nuisance trips and warranty issues in occupied spaces, including multi-dwelling units and office environments. Feature → Business Impact → Application: NEMA 5-15R receptacle configuration with brass contact material ensures reliable, low-resistance connections and long-term durability under frequent daily use. Feature → Business Impact → Application: 15A, 125V rating aligns with common branch circuits in both residential and commercial wiring, enabling standardized replacements and bulk procurement.
Get a Quick Quote for a Eaton TRAF15GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF15GY?
Enquire Now
FAQs
The TRAF15GY supports both back and side wiring, allowing secure termination of #14–10 AWG conductors. Start by turning off power, remove the wall plate, and loosen the terminals. Insert the conductors from the wiring method you prefer, tighten to the recommended torque of 16 lbf-in, and ensure solid engagement with brass contact terminals before securing the device in flush mounting. This approach reduces labor steps and improves reliability in tight spaces.
TRAF15GY provides arc-fault protection as an AFCI receptacle, is cULus Listed for safety, and is designed for residential and light commercial circuits. The device uses a NEMA 5-15R configuration with tamper-resistant features, making it suitable for occupied spaces where child safety and code compliance are important. It supports standard 15A, 125V operation and accepts 14–10 AWG conductors with secure termination.
Yes. The slim, flush-mount design and back/side wiring capability make TRAF15GY well-suited for new installations and retrofits in residential and light commercial settings. Its compact profile helps when space is constrained, while the NEMA 5-15R configuration and 15A/125V rating align with common branch circuits found in mixed-use buildings, simplifying procurement and reducing installation time.
The TRAF15GY is cULus Listed, which confirms compliance with applicable safety standards for electrical devices in North America. This certification helps ensure code adherence, reliability, and reduced risk of electrical hazards in both new builds and renovations. Tamper-resistant features further support safety in occupied spaces, contributing to safer long-term operation and lower maintenance concerns.
The slim design minimizes wall depth and enables flush mounting, improving aesthetics and reducing drywall cutouts in commercial spaces. Its back/side wiring versatility speeds terminations for #14–10 AWG conductors, while brass contact material and a 16 lbf-in torque rating ensure dependable, long-lasting connections. Overall, these features translate to faster turnarounds, fewer field issues, and greater compatibility with standard commercial outlets.
