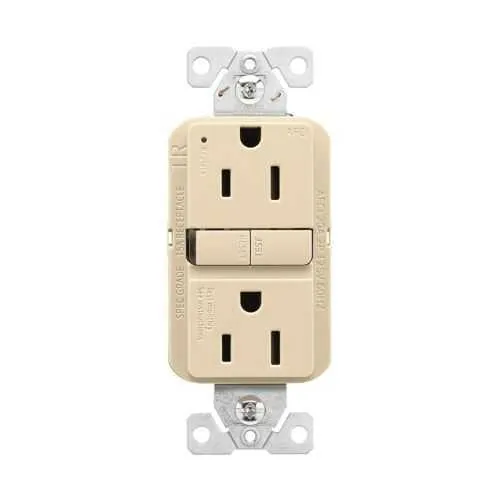

Eaton TRAF15V Slim AFCI Receptacle - cULus Listed
Part Number: TRAF15V
Quick Summary
Eaton slim AFCI receptacle is designed to provide arc-fault protection for 15A, 125V outlets in both residential and commercial settings. The compact, flush-mount design helps overcome space constraints and streamline retrofits without sacrificing safety or performance. This device carries cULus Listed safety certification and is built for reliable, day-to-day operation in wall boxes with back and side wiring configurations. By choosing TRAF15V you gain proven AFCI protection, tamper-resistant construction, and a straightforward installation path that supports NEMA 5-15R compatibility while reducing wiring complexity and total installed cost.
Product Information
Extended Description
TRAF15V Eaton: Eaton slim AFCI receptacle, visual trip indicator light, 15 A, 125 V, back wire and side wire, AFCI, ivory, brass, tamper resistant, PVC, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF15V
UPC
032664022500
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Slim, flush-mount form factor saves wall space and simplifies wall-box wiring, enabling neater installations in retrofit and new-construction projects. Feature → Business Impact → Application: Reduces box fill and profile intrusion in tight spaces, helping electricians meet code while accelerating wall finishing and cover plate installation in residential and light commercial outlets. The unit includes a visual trip indicator light, providing immediate status visibility for maintenance teams and end users, which translates to faster troubleshooting and improved safety during fault events in both homes and offices. Back and side wiring support for #14 - 10 AWG wires offers flexible terminations, reducing call-backs on site and enabling cleaner field terminations in retrofit projects. Brass contact material and 16 lbf-inch torque rating ensure durable, low-resistance connections, improving long-term reliability in constantly used receptacles. Tamper-resistant and ivory PVC/polycarbonate construction deliver robust, code-compliant performance across diverse environments, with cULus Listed certification reinforcing regulatory compliance for residential and commercial installations. NEMA 5-15R compatibility and flush-mount mounting method support quick deployment in standard wall boxes, minimizing labor time and ensuring consistent electrical safety across fleets of outlets.
Get a Quick Quote for a Eaton TRAF15V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF15V?
Enquire Now
FAQs
The TRAF15V supports both back and side wiring for #14–10 AWG conductors, enabling flexible terminations in retrofit or new-construction projects. When wiring, secure the device in a flush mount, tighten the screws to the recommended 16 lbf-in torque, and verify a proper ground connection through the two-pole, three-wire grounding configuration. The visual trip indicator helps confirm AFCI operation after final commissioning.
TRAF15V is a 15A, 125V AFCI receptacle configured as NEMA 5-15R. It uses brass contact material for reliable conductivity and is designed for flush mounting. The device is tamper resistant and UL/cUL listed, ensuring compliance with common housing and circuit protection requirements in both homes and small commercial facilities.
Yes. The TRAF15V is intended for residential and light commercial use, offering AFCI protection to reduce arc-fault fire risk. Its tamper-resistant design makes it appropriate for living spaces, offices, and other high-occupant areas where safety is paramount. The NEMA 5-15R configuration supports standard plugs, aiding compatibility with existing outlet layouts.
The TRAF15V carries cULus Listed certification, signifying compliance with recognized UL safety standards for electrical devices used in North American installations. This certification supports code compliance in residential and commercial projects and complements its AFCI protection features for reliable fault interruption.
TRAF15V reduces risk exposure by providing arc-fault protection, potentially lowering insurance and retrofit costs associated with electrical fires. Its slim, flush design simplifies installation and wall finishing, reducing labor time. The visual trip indicator light aids rapid fault diagnosis, minimizing downtime and maintenance cycles in fleets of outlets across facilities.
