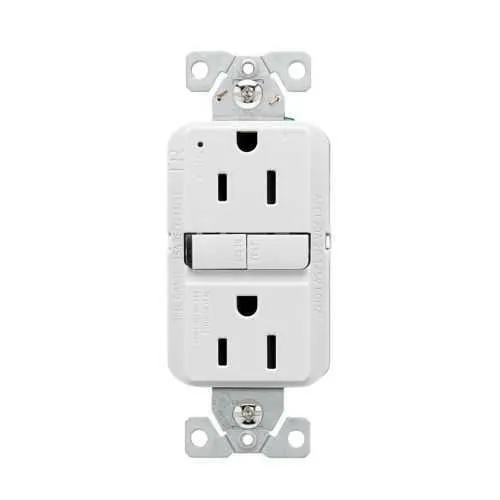

Eaton TRAF15W-BX-L Slim AFCI Receptacle - cULus Listed
Part Number: TRAF15W-BX-L
Quick Summary
Introducing the Eaton slim AFCI receptacle TRAF15W-BX-L, a compact 15A, 125V solution designed for residential and light commercial outlets. This device reduces arc-fault risk while simplifying wiring for installers, addressing code compliance and troubleshooting headaches. The unit is cULus Listed, aligning with UL safety standards, and includes tamper-resistant construction plus a visual trip indicator to speed diagnostics. By combining a robust brass contact system with PVC/Polycarbonate housing and flush mounting, it delivers reliable performance in demanding environments. Suitable for 5-15R configurations, it enables efficient upgrades and consistent electrical safety across projects.
Product Information
Extended Description
TRAF15W-BX-L Eaton: Eaton slim AFCI receptacle, visual trip indicator light, 15 A, 125 V, back wire and side wire, clamshell, AFCI, white, brass, tamper resistant, PVC, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF15W-BX-L
UPC
032664022524
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
White
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
ARC-FI protection with a built-in visual trip indicator strengthens safety and supports NEC AFCI requirements, while enabling rapid fault diagnostics on site. This reduces downstream risk and improves commissioning efficiency during residential and light commercial projects. Back and side wiring accepts #14-10 AWG conductors, delivering flexible terminations and real labor savings in retrofit and new-build installations. The 15A, 125V NEMA 5-15R receptacle with a 16 lbf-inch torque rating ensures secure terminations and reliable performance in demanding environments. Tamper-resistant construction and brass contacts enhance durability and conductivity, with a PVC/Polycarbonate face that resists wear and color-matched white aesthetics for clean installations. Flush mounting supports a low-profile footprint, ideal for dense wall layouts and multi-outlet configurations in homes and offices.
Get a Quick Quote for a Eaton TRAF15W-BX-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF15W-BX-L?
Enquire Now
FAQs
TRAF15W-BX-L supports back and side wiring for #14-10 AWG conductors and a flush mounting method, with a torque specification of 16 lbf-in to ensure solid terminations. It is a NEMA 5-15R receptacle designed for 15A, 125V circuits, making retrofit and new-install projects straightforward in standard 1-gang boxes with a clean finish.
Yes. The TRAF15W-BX-L is an AFCI receptacle with cULus listing that supports arc-fault protection on 15A, 125V circuits. It features a tamper-resistant design and a visual trip indicator to aid diagnostics, helping facilities meet NEC AFCI safety requirements in both residential and light commercial applications.
This receptacle is ideal for living spaces, bedrooms, home offices, and small commercial areas where arc-fault protection and a clean aesthetic matter. Its flush-mount design, white face, and NEMA 5-15R compatibility support 15A outlets in remodels and new installations, delivering safety and reliability in high-visibility wall locations.
Key safety features include tamper-resistant construction and arc-fault protection with a visual trip indicator for quick fault identification. The receptacle uses brass contact material for durable conductivity and a PVC/Polycarbonate face for rugged endurance. Its white finish matches common interior decor, while maintaining robust protection in residential and commercial environments.
The visual trip indicator speeds troubleshooting and reduces downtime during fault events, while the compact, flush-mount form factor simplifies installation in dense wall spaces. With tamper resistance and cULus listing, the unit supports code compliance and safer, long-term operation, delivering improved safety, faster commissioning, and predictable maintenance for electrical systems.
