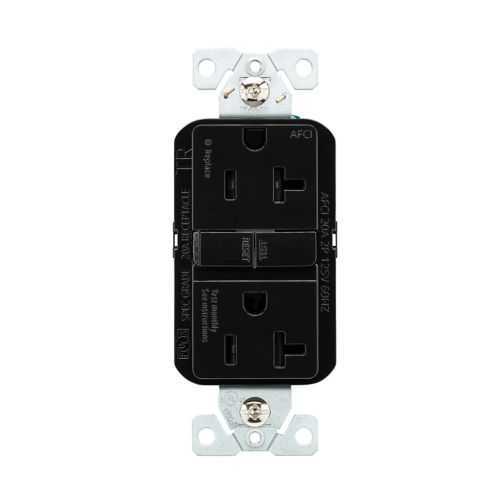

Eaton TRAF20BK Receptacle - Slim AFCI, 125V, 5-20R
Part Number: TRAF20BK
Quick Summary
Eaton slim AFCI receptacle provides arc-fault protection for residential and commercial outlets, helping prevent fires in living spaces. In many installs, nuisance trips, difficult wiring, and weak tamper resistance slow projects and drive up service costs. With cULus Listed certification, this device supports code-compliant deployments across North America. Its compact flush mount and dual wiring (back and side) options simplify retrofits and new builds while maintaining 125 V, 20 A performance. Designed for 5-20R receptacles in residential and light commercial environments, it enables reliable, scalable wiring that aligns with contractor timelines and budgets.
Product Information
Extended Description
TRAF20BK Eaton: Eaton slim AFCI receptacle, tamper resistant, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFCI, back and side wire, black, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF20BK
UPC
032664022555
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Black
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature is slim, providing a compact footprint that reduces wall box fill and enables cleaner, faster installations. Business Impact is improved installation efficiency and reduced hardware friction, resulting in lower labor time and costs for both new construction and retrofit projects. Application centers on residential and light commercial spaces needing reliable AFCI protection with a flush mount profile and back-and-side wiring options. The back and side wiring feature supports flexible terminations with #14 - 10 AWG conductors, minimizing pigtail hops and improving circuit integrity. Feature tamper-resistant construction adds safety, reducing risk of nuisance openings in high-traffic areas. Business Impact translates to enhanced safety compliance, fewer call-backs, and faster closeouts on projects. Application contexts include offices, apartments, and shared residential spaces where code-compliant protection is mandatory. Feature NEMA configuration 5-20R and brass contact material improve contact reliability, while torque rating of 16 lbf-in ensures repeatable, secure connections. Business Impact is long-term reliability and consistent performance across installations. Application notes include flush-mount compatibility with standard single-gang boxes, supporting rapid retrofits and code-compliant installations. Feature 20 A, 125 V operation delivers dependable power delivery for general-use outlets, enabling stable circuit behavior in busy environments. Business Impact is reduced nuisance trips and improved electrical safety, especially in living and workspaces. Application scenarios span new builds, renovations, and tenant improvements where quick, safe wiring matters.
Get a Quick Quote for a Eaton TRAF20BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF20BK?
Enquire Now
FAQs
To install TRAF20BK, shut off the circuit, remove the existing device, and prepare conductors #14 - 10 AWG. Attach wires to the back and side terminals per the wiring diagram, tighten to 16 lbf-in torque, then seat the receptacle flush in the gang box and secure with the faceplate. Verify polarity and test AFCI function after installation.
TRAF20BK is a 20A, 125V receptacle with AFCI protection and NEMA 5-20R configuration. It uses brass contact material and supports back and side wiring for #14 - 10 AWG conductors. The device is tamper resistant and is cULus Listed, ensuring compliance with North American safety standards for residential and commercial use.
Yes. The flush-mount design with tamper-resistant construction and AFCI protection is ideal for living spaces, offices, and other light commercial applications. Its NEMA 5-20R configuration and 125V/20A ratings meet common code requirements, while the slim profile simplifies installation in shared walls and retrofit projects without sacrificing safety or performance.
TRAF20BK carries cULus Listed certification, indicating compliance with North American safety standards for electrical devices. This certification supports code compliance in residential and commercial installations and provides assurance to inspectors, contractors, and facility managers that the receptacle meets recognized safety and performance criteria.
The tamper-resistant design reduces unauthorized contact in occupied spaces, while AFCI protection minimizes fire risk, contributing to lower maintenance costs and potential insurance benefits. The flush-mount, back-and-side wiring capability speeds up installation and future upgrades, reducing labor time and accelerating project completion for ongoing maintenance and tenant improvement programs.
