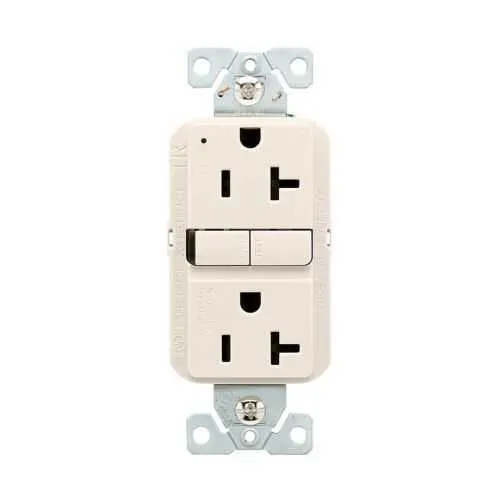

Eaton slim AFCI receptacle TRAF20LA - cULus Listed
Part Number: TRAF20LA
Quick Summary
Eaton slim AFCI receptacle is a protective electrical device that provides arc-fault protection for residential and commercial outlets. Installers often face retrofit compatibility challenges and nuisance trips when upgrading existing circuits, leading to project delays and callbacks. This product carries the cULus Listed certification, aligning with NEC-based safety standards for both new construction and renovations. With a 20A, 125V rating and tamper-resistant design, it supports reliable code-compliant protection while minimizing occupant risk. Its back and side wiring options, flush mounting, and NEMA 5-20R configuration simplify installation in a range of commercial and residential applications, delivering consistent performance and cost-effective scalability.
Product Information
Extended Description
TRAF20LA Eaton: Eaton slim AFCI receptacle, tamper resistant, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFCI, back and side wire, light almond, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF20LA
UPC
032664022579
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Light almond
Face/body material
Polycarbonate PVC
Receptacle type
Two-pole, three-wire, grounding
Slim form factor and flush mounting save box space and enable cleaner installations in retrofit projects, improving wall box utilization and reducing cover plate depth. The 20A, 125V rating paired with NEMA 5-20R support aligns with common branch circuits, delivering predictable performance and code-compliant protection for high-use outlets in homes and offices. Tamper-resistant construction enhances child safety and reduces accidental contact with live terminals, lowering risk and potential liability in occupied spaces. Back and side wiring accepts #14 - 10 AWG conductors, streamlining wiring in renovation or new build scenarios and enabling faster field termination with consistent torque requirements at 16 lbf-in. Brass contact material and polycarbonate face/body provide durable, corrosion-resistant contact performance, supporting long-term reliability in harsh environments seen in commercial facilities. The light almond finish and flush-mount design improve aesthetics in wallpapered or textured wall surfaces, minimizing installation callbacks due to mis-matched receptacles. Compatibility with standard Eaton 5-20R configurations ensures scalable distribution across multi-outlet layouts while maintaining safety and performance margins across installations.
Get a Quick Quote for a Eaton TRAF20LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF20LA?
Enquire Now
FAQs
Installers should turn off power, remove the original device, and prepare the box for back-and-side wiring with #14 to #10 AWG conductors. Terminate conductors to the brass terminals per the device’s torque rating of 16 lbf-in, seat the receptacle flush in the box, and attach the faceplate. The TRAF20LA’s tamper-resistant design helps maintain safety during installation, and its NEMA 5-20R configuration ensures compatibility with common 125V, 20A circuits.
The TRAF20LA includes arc-fault circuit interrupter (AFCI) protection that detects arcing faults and interrupts the circuit to prevent fires. With a 20A, 125V rating and a NEMA 5-20R outlet, it is designed for residential and light commercial use, delivering reliable protection on standard branch circuits while maintaining compatibility with common wiring methods and device configurations.
Yes. The receptacle is designed for residential-commercial use, featuring back- and side-wire capability for flexible installation, a 20A/125V rating, and a 5-20R configuration. Its slim, flush-mount profile and tamper-resistant construction make it appropriate for apartments, offices, hotels, and homes seeking code-compliant arc-fault protection.
The TRAF20LA is cULus Listed, indicating compliance with safety standards for electrical devices in North American installations. This certification supports NEC-based requirements for both new construction and renovations, helping ensure regulatory compliance and safer operation in residential and commercial environments.
By delivering AFCI protection, tamper resistance, and durable brass contact performance, the TRAF20LA reduces nuisance trips and minimizes safety-related callbacks. Its back- and side-wire capability speeds installation, lowers labor costs, and the slim flush design can reduce box fill issues in retrofit projects, delivering a favorable total cost of ownership over time.
