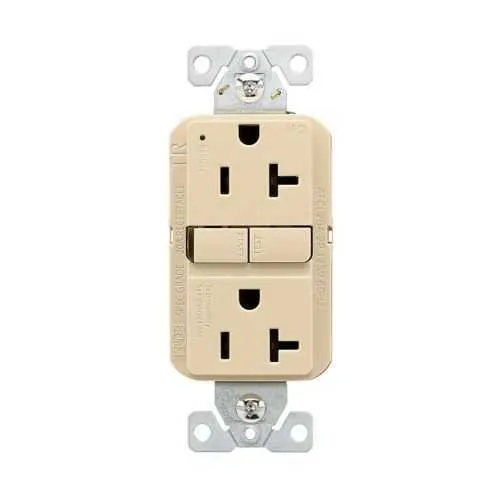

Eaton TRAF20V AFCI Receptacle - Tamper Resistant, cULus
Part Number: TRAF20V
Quick Summary
The Eaton TRAF20V is a slim AFCI receptacle designed for residential and commercial applications. Its compact flush mount and back‑and‑side wiring options reduce installation time and code‑compliance headaches. This device is cULus Listed and tailored for NEMA 5-20R configurations, supporting safe 125 V, 20 A circuits. Designed for both new construction and renovations, it helps streamline procurement while delivering reliable arc-fault protection. With tamper resistance, brass contacts, and a durable PVC/polycarbonate face, it resists abuse in busy electrical spaces. This combination translates into fewer field call-backs, improved safety, and measurable compliance with AFCI requirements. The included wiring flexibility supports #14 to #10 AWG copper conductors, simplifying on-site adaptation. Benefit from local availability, broad compatibility with standard 20‑A circuits, and a consistent ivory finish that blends with most panels.
Product Information
Extended Description
TRAF20V Eaton: Eaton slim AFCI receptacle, tamper resistant, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFCI, back and side wire, ivory, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFCI receptacle
Catalog Number
TRAF20V
UPC
032664022586
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
cULus Listed
Device type
Receptacle
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFCI
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Slim flush design and flush mounting keep the outlet nearly level with the wall, reducing visible depth and improving panel alignment. Business impact: quicker rough-ins and fewer rework steps in crowded electrical spaces. Application: ideal for new construction and renovations where space in 1-gang boxes is at a premium and a clean, professional finish matters. Back- and side-wire capability supports #14 to #10 AWG conductors, enabling flexible field terminations without extra adapters. Business impact: reduces labor time and error potential by letting installers choose the simplest wiring method for a given project. Application: well-suited for residential and light-commercial circuits that demand reliable, code-aligned AFCI connections in tight wall cavities. AFCF protection with tamper-resistant construction delivers safer outlets in living and workspaces. Business impact: strengthens code compliance and minimizes post-install safety incidents, especially in areas with children or high-use outlets. Application: residential living areas, offices, and common spaces where 125 V, 20 A circuits are standard. Standard 5-20R configuration with brass contacts and a 16 lbf-in torque rating ensures secure connections and dependable seating in the device face. Business impact: reduces hotspot and looseness risks, extends device life, and lowers maintenance calls. Application: general purpose outlets in today’s AFCI-required installations. Durable PVC/Polycarbonate face combined with robust mounting and a UL-listed/safety-certified design supports long service life in busy commercial installations. Business impact: lower replacement costs and a more predictable procurement cycle for electrical contractors. Application: retrofit programs and new builds that demand consistent color, finish, and performance. In addition, Eaton provides installation instructions, a tamper-resistant slim AFCI spec sheet, and an educational video to accelerate start-up and ensure compliant wiring.
Get a Quick Quote for a Eaton TRAF20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAF20V?
Enquire Now
FAQs
Terminate conductors through the TRAF20V back and side terminals with 14–10 AWG copper conductors, tightening to 16 lbf‑in. Refer to Eaton’s AFCI instruction sheet to ensure correct terminal orientation, proper stripping length, and flush mounting in a standard 1‑gang box. This approach minimizes mis-wiring and speeds rough‑in in tight spaces.
The TRAF20V delivers 20A at 125V with a NEMA 5-20R configuration and AFCI protection. Brass contacts ensure low contact resistance and durable operation under repeated cycling. These specs help meet code requirements, reduce nuisance trips, and support reliable power delivery for living rooms, offices, and other areas with AFCI mandates.
Yes. The device is designed for both residential and light commercial applications, offering tamper‑resistant construction, 125V 20A operation, and a compact flush profile. The NEMA 5-20R configuration aligns with standard outlets in homes and offices, while its back- and side-wiring capability supports diverse installation scenarios and improves panel density management.
TRAF20V is cULus Listed, indicating compliance with recognized safety standards for AFCI receptacles in North America. This certification simplifies code approvals, supports installer confidence, and reduces project risk on new builds and renovations by ensuring a validated, tested design dedicated to arc-fault protection. It aligns with standard NEMA configurations, aids procurement teams, and provides traceable safety documentation during inspections.
Eaton offers installation instructions, a Tamper Resistant Slim AFCI Spec Sheet, and an AFCI educational video. These resources accelerate startup, reduce commissioning time, and improve first-pass inspection results. Access to PDFs and videos helps technicians verify wiring methods, torque requirements, and compatibility with existing panels, supporting faster project completion and lower total installed cost.
