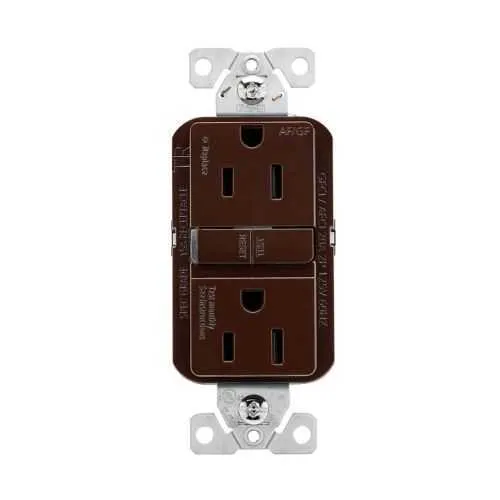

Eaton TRAG15B Receptacle - Tamper Resistant, UL Listed
Part Number: TRAG15B
Quick Summary
The Eaton slim AFGF receptacle serves as a reliable, tamper-resistant power connection for residential and commercial installations. Facing safety and code challenges, you need fast, error-free wiring and a device that verifies its own status on install. With CSA Certified, cULus Listed, and UL Listed verifications, plus NOM recognition in certain regions, it meets rigorous third-party standards. Its compact flush-mount design, back and side wiring options, and the NEMA 5-15R configuration translate to fewer field adjustments and faster project turnover. For engineers and procurement teams, compatibility with back and side wiring and brass contact materials improves connection reliability under vibration and temperature variation. This design also minimizes tooling and training needs during install, helping projects stay on schedule and control material costs.
Product Information
Extended Description
TRAG15B Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 15 A, residential, commercial, flush, 125 V, AFGF, back and side wire, brown, brass, polycarbonate, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG15B
UPC
032664022609
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
CSA Certified cULus Listed UL Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Brown
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper-resistant AF/GF receptacle with self-test capability. Business Impact: Strengthens safety, reduces nuisance interruptions, and eases inspection processes. Application: Suitable for new construction and renovations in residential kitchens, offices, and light commercial spaces. Feature: Back and side wiring supports #14–10 AWG conductors. Business Impact: Speeds wiring, lowers labor costs, and minimizes field errors. Application: Ideal for flush installations where wiring access varies or is constrained. Feature: Flush mounting with a brown PVC/polycarbonate face. Business Impact: Creates cleaner, more durable interior aesthetics while withstanding daily usage. Application: Fits wall outlets in living spaces and work environments needing discreet outlets. Feature: 15A, 125V, NEMA 5-15R with brass contacts. Business Impact: Delivers reliable power delivery and long-term contact integrity under vibration and temperature changes. Application: Standard branch circuits in homes and small offices. Feature: Certifications and safety approvals (CSA Certified, cULus Listed, UL Listed, NOM where applicable). Business Impact: Reduces regulatory risk and supports rapid code compliance. Application: Suitable for markets with varying electrical standards and compliance requirements.
Get a Quick Quote for a Eaton TRAG15B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG15B?
Enquire Now
FAQs
Install using back or side wiring for #14–10 AWG conductors, secure the device flush with the wall, and tighten terminals to 16 lbf-in. The TRAG15B is a 15A, 125V NEMA 5-15R receptacle with tamper-resistant and self-test features, and it supports residential and commercial applications. Always follow local codes and use the included datasheet for wiring sequence.
The TRAG15B provides 15A at 125V with a NEMA 5-15R configuration. It features tamper-resistant AF/GF circuit interrupter, brass contacts, back and side wiring for #14–10 AWG, and a flush-mount design. It carries CSA Certified, cULus Listed, and UL Listed safety approvals, ensuring reliable performance in demanding environments.
Best suited for residential and light commercial spaces, including kitchens, offices, and hallways, where clean aesthetics and reliable power are essential. Its flush mounting and back/side wiring options support both new construction and retrofit projects, while maintaining code-compliant safety features.
The TRAG15B is CSA Certified, cULus Listed, UL Listed, and NOM recognized in applicable regions. These certifications facilitate regulatory compliance and streamline inspections, enabling safer installations and fewer corrective actions during audits or in warranty scenarios.
Tamper-resistant construction reduces child-access risk and potential tampering incidents, while self-test capability decreases unexpected outages. The robust, easy-to-wire design lowers installation time and training costs, improving project timelines and long-term maintenance predictability in both new builds and renovations.
