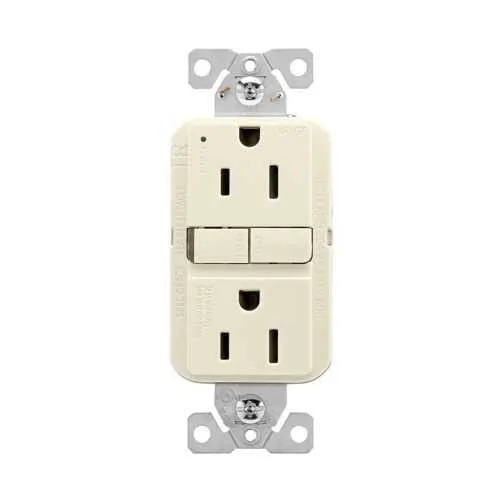

Eaton slim AFGF TRAG15LA Receptacle - Tamper Resistant
Part Number: TRAG15LA
Quick Summary
The Eaton slim AFGF TRAG15LA receptacle provides tamper-resistant, self-test protection for residential and commercial outlets. For installers, code compliance and reliable performance without repeated field testing are critical pain points, especially during retrofit projects. This device is UL Listed, NOM Certified, and cULus Listed, supporting safe operation across North America and simplifying procurement. It is designed for flush mounting with back and side wiring and accepts #14–10 AWG conductors, helping crews speed terminations and reduce errors. Constructed with brass contacts and a durable PVC/polycarbonate face, it resists wear in high-traffic spaces while maintaining a light almond finish that blends with décor. Overall, TRAG15LA delivers safety, efficiency, and long-term value for built environments.
Product Information
Extended Description
TRAG15LA Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 15 A, residential, commercial, flush, 125 V, AFGF, back and side wire, light almond, brass, polycarbonate, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG15LA
UPC
032664022630
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
UL Listed NOM CSA Certified cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Light almond
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper resistant with self-test. Benefit: Enhances occupant safety and reduces nuisance inspections by validating outlet integrity automatically, translating to fewer service calls and improved compliance during new builds and renovations. Application: Ideal for homes, offices, hotels, and healthcare facilities where safety is paramount and inspections are frequent. Feature: Back and side wiring for #14–10 AWG conductors. Benefit: Speeds up installation, reduces wiring errors, and supports flexible retrofit work without special tools. Application: Useful for space-constrained panels and retrofit projects in commercial spaces and multi-occupancy dwellings. Feature: Flush mounting with 1.37 in depth. Benefit: Clean, unobtrusive appearance that maintains line-of-sight aesthetics and eases wall finishing in finished spaces. Application: Suitable for architectural-grade installations in new construction and renovations. Feature: 15A, 125V, NEMA 5-15R configuration with brass contacts. Benefit: Delivers reliable power delivery for standard appliances and devices while maintaining low contact resistance and long-term performance. Application: Common in residential wiring and light commercial settings. Feature: UL Listed, NOM Certified, and cULus Listed. Benefit: Regulatory assurance across regions, simplifying procurement, product substitutions, and compliance documentation. Application: Essential for projects targeting NEC compliance and cross-border deployment. Feature: Durable face/materials—PVC and polycarbonate with a light almond finish. Benefit: Increases resistance to impact and wear while preserving aesthetics in busy environments. Application: Suitable for high-traffic areas such as kitchens, break rooms, and classrooms.
Get a Quick Quote for a Eaton TRAG15LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG15LA?
Enquire Now
FAQs
TRAG15LA supports back and side wiring with #14–10 AWG conductors and flush mounting, making it compatible with most residential and light commercial wiring schemes. Ensure circuit is de-energized, tighten to 16 lbf-in torque, and verify NEMA 5-15R alignment for a secure, code-compliant installation.
The TRAG15LA is UL Listed, NOM Certified, and cULus Listed, indicating compliance with safety and performance standards in the U.S., Canada, and Mexico. These certifications simplify procurement, support cross-border installations, and help meet NEC and local electrical code requirements.
Yes. With a 15A, 125V rating and NEMA 5-15R configuration, TRAG15LA is designed for residential and light commercial applications. Its tamper-resistant and self-test features address safety and reliability needs across varied environments while maintaining a consistent finish.
The self-test function continuously monitors the receptacle’s safety features, helping confirm proper operation without manual testing. This reduces undetected faults, minimizes maintenance visits, and supports ongoing compliance, particularly in facilities with frequent inspections or strict safety policies.
By combining tamper resistance, self-test capability, durable materials, and straightforward wiring, TRAG15LA lowers incident rates due to improper terminations, reduces service calls, and speeds installations. Over time, facilities gain uptime, simpler procurement, and consistent safety performance across multiple outlets.
