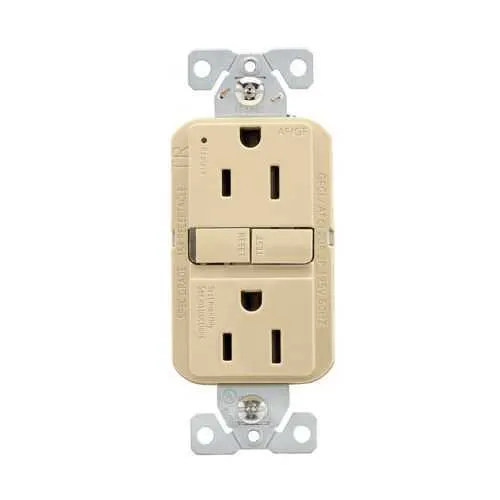

Eaton TRAG15V Receptacle - Tamper Resistant, UL Listed
Part Number: TRAG15V
Quick Summary
TRAG15V is a tamper-resistant receptacle designed for residential and commercial outlets. Installers often face wiring flexibility, self-test features, and code-compliance hurdles in tight spaces. This device carries UL Listed, CSA Certified, and NOM certifications to support safety and regional requirements. Its compact slim profile, back-and-side wiring options, and flush-mount design enable faster installations, tighter walls, and dependable NEMA 5-15R performance in both new builds and retrofit projects. This combination reduces field callbacks by ensuring correct wiring with back and side connections, eliminates guesswork for technicians during retrofit installs, and supports compliant, long-term operation in hospitals, offices, and homes. Its tamper-resistant and self-test features further reduce risk.
Product Information
Extended Description
TRAG15V Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 15 A, residential, commercial, flush, 125 V, AFGF, back and side wire, ivory, brass, polycarbonate, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG15V
UPC
032664022661
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
NOM CSA Certified cULus Listed UL Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper-resistant slim AF/GF receptacle with self-test. Business Impact: Enhances safety and reduces compliance risk, minimizing potential outages or enforcement actions. Application: Ideal for residential and light commercial outlets where safety and code adherence are critical. The self-test capability provides ongoing verification of fault detection, supporting reliability in daily use. Feature: Back and side wiring for #14 - 10 AWG. Business Impact: Speeds up installation and retrofits, lowering labor costs and reducing field errors. Application: Convenient in retrofit projects or new installations with varied wiring access. Feature: Flush mount with ivory PVC/polycarbonate face/body. Business Impact: Aesthetically pleasing, wall-friendly profile that resists impact and wear, lowering maintenance needs. Application: Offices, hotels, and living spaces seeking a clean, durable finish. Feature: NEMA 5-15R, two-pole three-wire grounding. Business Impact: Broad compatibility with standard outlets, reducing stocking of adapters and replacements. Application: General power distribution in residential and light commercial settings. Feature: 16 lbf-in torque rating and robust materials. Business Impact: Ensures solid, code-compliant terminations, reducing loosening or failure over time. Application: Frequent-use outlets in commercial environments. Feature: Certifications UL Listed, CSA Certified, NOM. Business Impact: Regulatory alignment across multiple regions, simplifying approval processes. Application: Projects requiring multi-jurisdiction compliance and formal documentation.
Get a Quick Quote for a Eaton TRAG15V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG15V?
Enquire Now
FAQs
TRAG15V supports back and side wiring for #14–10 AWG conductors, enabling flexible routing in tight spaces and retrofits. This reduces conduit runs and makes field terminations faster and more reliable, lowering labor time and wiring errors while meeting NEC guidelines for residential and light commercial outlets.
Yes. TRAG15V is a NEMA 5-15R receptacle rated for 15A at 125V, providing standard two-pole, three-wire grounding. Its compatibility streamlines replacements and reduces the need for adapters in typical U.S. residential and small commercial installations.
TRAG15V carries UL Listed, CSA Certified, and NOM certifications. These approvals support global and regional safety and performance requirements, simplify code compliance, and help ensure job-site acceptance across multiple jurisdictions.
Tamper-resistant construction helps prevent insertion of small objects, reducing child-safety risks, while self-test verifies proper fault-detection circuits over time. Together they minimize maintenance calls and help ensure reliable power protection in everyday use.
Plan for flush mounting in standard wall boxes with back-and-side wiring flexibility. Ensure color and material compatibility (ivory PVC/polycarbonate) with interior finishes, verify 15A/125V circuits, and allow for proper torque (16 lbf-in) to maintain a secure, code-compliant connection during high-traffic usage.
