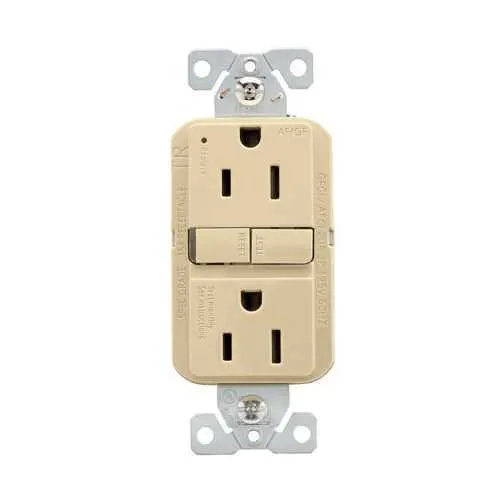

Eaton TRAG15V-BX-L Slim Receptacle - Tamper Resistant
Part Number: TRAG15V-BX-L
Quick Summary
Eaton slim AFGF receptacle provides tamper-resistant, self-test electrical connectivity for residential and commercial outlets. For installers, staying compliant and ensuring ongoing protection without frequent field testing can be challenging. UL Listed, CSA Certified, and cULus Listed NOM certifications support broad regulatory acceptance and safe operation across markets. With flush mounting, back- and side-wiring options, and a compact profile, this receptacle helps maximize wiring density while simplifying installation, reducing labor time and post-installation adjustments for building projects.
Product Information
Extended Description
TRAG15V-BX-L Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 15 A, residential, commercial, flush, 125 V, AFGF, clamshell, back and side wire, ivory, brass, polycarbonate, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG15V-BX-L
UPC
032664022678
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
UL Listed CSA Certified cULus Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFGF
Packaging type
Clamshell
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature → Business Impact → Application: Tamper-resistant design and self-test capability improve safety compliance and reduce nuisance inspections, enabling lower risk in both new-builds and retrofit projects. This translates to fewer field faults and faster approvals on residential and commercial installations. Application: new construction and remodeling where reliability and code adherence are critical. Feature → Business Impact → Application: AF/GF combination capabilities (arc-fault and ground-fault) with two-pole, three-wire grounding enhance protection against electrical faults, lowering the likelihood of costly outages and insurance claims. Application: spaces with sensitive equipment or high-occupancy areas requiring robust fault protection. Feature → Business Impact → Application: Back- and side-wiring compatibility for #14–10 AWG wires delivers flexible installation, reducing material handling and allowing quick terminations in crowded panels. Application: dense electrical rooms and retrofit sites where wiring access varies. Feature → Business Impact → Application: Flush mounting and ivory color offer a low-profile, aesthetically pleasing finish that aligns with residential and commercial décor, improving customer satisfaction and reducing rework. Application: finish-conscious installations and renovations. Feature → Business Impact → Application: UL Listed, CSA Certified, and NOM certifications minimize compliance risk and enable faster permit approvals, supporting project timelines and broader market reach. Application: regulated projects across multiple regions. Feature → Business Impact → Application: 16 lbf-in torque rating ensures a secure, repeatable connection, lowering maintenance calls and loosening-related faults over the product life. Application: high-use outlets in workplaces and public areas.
Get a Quick Quote for a Eaton TRAG15V-BX-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG15V-BX-L?
Enquire Now
FAQs
To install the TRAG15V-BX-L, ensure the circuit is de-energized and use back- and side-wiring for #14–10 AWG conductors. Tighten to 16 lbf-in torque, insert into a flush-mount opening, and connect ground with the 3-wire grounding configuration. Confirm NEMA 5-15R orientation and test both the self-test and tamper-resistant features after installation for proper operation.
The TRAG15V-BX-L is UL Listed, CSA Certified, and cULus Listed NOM. These certifications support broad regulatory compliance and market acceptance, helping you meet local codes and infrastructure standards for residential and commercial installations.
This model is designed for residential and general commercial use with tamper resistance and self-test features. For hospital-grade requirements, verify specific facility codes and use case standards; consider higher-level medical-grade outlets if required, while leveraging the device’s compact, flush-mount profile for spaces with tight wiring layouts.
The TRAG15V-BX-L is a 15A, 125V receptacle configured as a two-pole, three-wire grounding (NEMA 5-15R). It accepts back- and side-wiring for #14–10 AWG conductors and requires a torque of 16 lbf-in for secure terminations, suitable for residential and light commercial outlets.
The self-test capability provides built-in diagnostics that help identify wiring faults or degradation, reducing unexpected outages and maintenance calls. Over time, this translates to lower service costs, improved safety compliance, faster permit approvals, and a clearer return on investment for higher-use environments.
