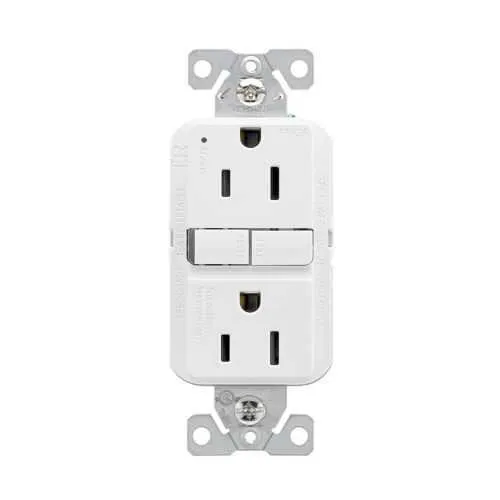

Eaton TRAG15W Slim AFGF Receptacle - UL Listed
Part Number: TRAG15W
Quick Summary
Eaton slim AFGF receptacle is a safe, compact power delivery solution for homes and light commercial spaces. Many teams struggle with safety when upgrading older outlets; tamper-resistant design and self-test features reduce shock risk and improve compliance. Key certifications NOM cULus Listed, CSA Certified, and UL Listed support installation in regulated environments. This product pairs with back and side wiring for flush mounting, delivering reliable 15A, 125V performance for both residential and commercial projects. Designed for flush mounting in residential-commercial settings, it accepts #14-10 AWG wires. The slim profile minimizes wall intrusion while maintaining robust brass contacts and polycarbonate face. Ideal for new builds and retrofit projects seeking safety, reliability, and code compliance.
Product Information
Extended Description
TRAG15W Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 15 A, residential, commercial, flush, 125 V, AFGF, back and side wire, white, brass, polycarbonate, 5-15R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG15W
UPC
032664022685
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
NOM cULus Listed CSA Certified UL Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
White
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Tamper-resistant design provides safety by preventing unauthorized object insertion, reducing tampering risk and improving code compliance in residential and commercial outlets. This translates to fewer service calls and safer environments in schools, offices, and healthcare facilities. The result is measurable risk reduction and a stronger safety footprint across facilities where outlets are frequently accessed.
Get a Quick Quote for a Eaton TRAG15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG15W?
Enquire Now
FAQs
The TRAG15W supports back and side wiring and flush mounting, enabling flexible installation in new builds or retrofits. With a 16 in-lbf torque rating and #14-10 AWG acceptance, electricians can terminate securely while maintaining a clean wall profile suitable for residential and commercial environments.
The TRAG15W is NOM cULus Listed, CSA Certified, and UL Listed. These certifications indicate compliance with major safety and performance standards, enabling broader regulatory acceptance and reducing risk during inspections in homes, offices, and public facilities.
Yes. Designed as a tamper-resistant self-test receptacle with a 15A, 125V rating and NEMA 5-15R configuration, it is appropriate for light commercial spaces such as retail, offices, and hospitality environments where safety and reliability are priorities.
The TRAG15W uses a 5-15R NEMA configuration, with back and side wiring options. This supports versatile wiring schemes, simplifying retrofits and new installations while ensuring proper grounding with a two-pole, three-wire arrangement.
Self-test reduces maintenance surprises by continuously validating protection features, supporting proactive upkeep and regulatory compliance. This translates to lower downtime, consistent safety performance, and predictable lifecycle costs for facilities managers.
