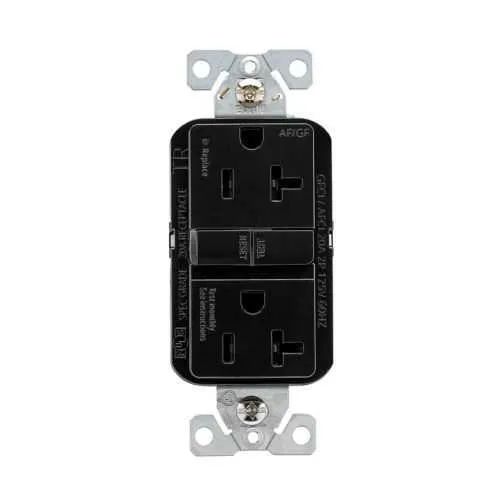

Eaton TRAG20BK Slim AFGF Receptacle - 20A 125V, Tamper Resistant
Part Number: TRAG20BK
Quick Summary
Eaton slim AFGF receptacle is a compact, tamper-resistant electrical outlet designed for both residential and commercial applications. When wiring in tight spaces or multi-unit installations, contractors need a solution that simplifies terminations while maintaining safety and code compliance. This device carries CSA Certified, cULus Listed, UL Listed certifications and NOM, ensuring reputable standards alignment and inspection readiness. By combining back and side wiring, a flush mounting profile, and a durable brass contact set, it speeds installation and reduces rework, delivering measurable cost savings. The slim profile minimizes wall intrusion and improves aesthetics in finished spaces while maintaining robust electrical performance.
Product Information
Extended Description
TRAG20BK Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFGF, back and side wire, black, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG20BK
UPC
032664022722
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
CSA Certified cULus Listed UL Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Black
Face/body material
Polycarbonate PVC
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper-resistant, self-test design with back and side wiring. Business Impact: Enhances safety by preventing unintended insertion and ensures ongoing integrity through a built-in self-test. Application: Ideal for high-traffic residential spaces and commercial corridors where safety and quick validation matter. Feature: 20A at 125V with NEMA 5-20R configuration and brass contacts. Business Impact: Delivers reliable power delivery and durable, low-resistance connections that resist wear in frequent plug cycles. Application: Suitable for kitchens, break rooms, and service outlets in office environments. Feature: Flush mounting with polycarbonate face and black finish. Business Impact: Creates a sleek wall profile, reduces protrusion risk, and simplifies concealment in finished walls. Application: Preferred for modern architectural installs in new builds and renovations. Feature: Back and side wiring for #14–10 AWG conductors with 16 lbf-in torque rating. Business Impact: Speeds wiring and ensures consistent torque for secure terminations, lowering call-backs. Application: Widely used in both residential garages and commercial outlets. Feature: Tamper resistant, self-test, and compliant certifications (CSA, cULus, UL, NOM). Business Impact: Improves compliance, inspector readiness, and long-term product reliability. Application: Applicable across code-driven installations in North American markets.
Get a Quick Quote for a Eaton TRAG20BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG20BK?
Enquire Now
FAQs
Installers should prepare a compatible wall box, loosen terminals to allow insertion of #14–10 AWG conductors, and terminate per the device’s back-and-side wiring method. Tighten to the 16 in-lbf torque specification and mount flush. The result is a secure, code-compliant connection suitable for 125V, 20A circuits.
The TRAG20BK carries CSA Certified, cULus Listed, UL Listed, and NOM certifications. These approvals indicate alignment with recognized safety and performance standards, aiding pass-through inspections and ensuring dependable operation in both residential and commercial environments.
Absolutely. With a 20A/125V rating, NEMA 5-20R configuration, and tamper-resistant/self-test features, it supports high-usage areas like kitchens and office break rooms while meeting safety and performance requirements across residential and commercial installations.
Yes. The TRAG20BK is designed with tamper-resistant features to prevent foreign-object ingress and a self-test function to verify the receptacle’s protective mechanisms are active, helping maintain ongoing safety compliance.
Back and side wiring supports faster terminations for #14–10 AWG conductors, while a flush-mount profile minimizes wall intrusion. Combined with a reliable 16 in-lbf torque and durable brass contacts, this reduces troubleshooting calls and post-install adjustments.
