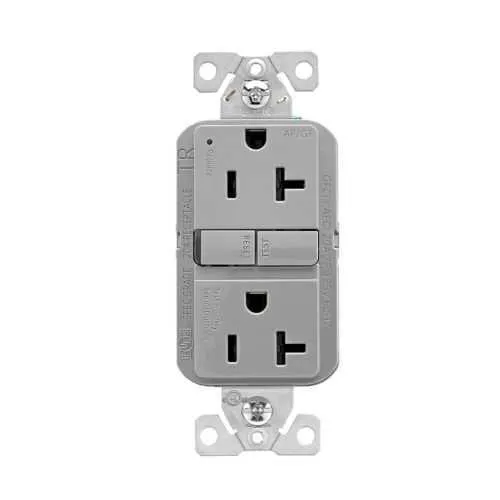

Eaton TRAG20GY Receptacle - Tamper Resistant
Part Number: TRAG20GY
Quick Summary
The Eaton slim AFGF receptacle delivers tamper-resistant, 20A power for residential and commercial outlets. Wiring versatility and code compliance are common project pain points, but this unit supports back and side wiring for fast terminations and reliable connections. It carries NOM, UL Listed, CSA Certified, and cULus Listed certifications, ensuring strong safety and cross‑border acceptance. With flush mounting for clean panel aesthetics and 125 V operation, it fits tight spaces without compromise. Built with brass contacts and a durable PVC/polycarbonate body, this receptacle pairs long-term durability with a self-test feature that minimizes downtime and maintenance costs.
Product Information
Extended Description
TRAG20GY Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFGF, back and side wire, gray, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG20GY
UPC
032664022739
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
NOM UL Listed CSA Certified cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Gray
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper resistant and self-test capability. Business impact: Elevates safety, reduces nuisance shocks and non-compliant installations, lowering risk and audit findings. Application: Ideal for residential common areas and commercial spaces requiring code-compliant outlets. Feature: Back and side wiring for #14 - 10 AWG. Business impact: Speeds terminations, minimizes wiring errors, and supports mixed-wiring scenarios on a single outlet. Application: Renovations and new builds with diverse conductor configurations. Feature: Flush mounting with 125 V, 20 A capacity. Business impact: Maximizes wall aesthetics, saves space, and improves panel density in tight installations. Application: Hallways, offices, and retail environments where appearance matters. Feature: NEMA 5-20R configuration with brass contact material. Business impact: Ensures reliable, high-quality electrical contact and straightforward compatibility with standard 20A circuits. Application: Light commercial outlets and multi-outlet banks. Feature: Certifications and materials (NOM UL Listed CSA Certified cULus Listed; PVC/polycarbonate body). Business impact: Accelerates procurement across regions and reduces compliance overhead, while delivering durable, low-maintenance performance. Application: Regulated markets and long-life installations in demanding environments.
Get a Quick Quote for a Eaton TRAG20GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG20GY?
Enquire Now
FAQs
TRAG20GY supports back and side wiring with #14 - 10 AWG conductors and a 16 lbf-inch torque rating. Installers should prepare properly sized conductors, insert them into the appropriate clamps, and tighten to specification to ensure a secure, code‑compliant connection. The device is a two-pole, three-wire, grounding receptacle (NEMA 5-20R) designed for flush mounting, which simplifies panel layout and reduces wiring errors during installation.
Key specs include 20A maximum amperage, 125V operating voltage, AFGF circuit interrupter type, brass contact material, and a flush-mounted face. It is rated for residential and commercial use, with a NEMA 5-20R configuration and self-test capability to ensure ongoing safety. Wire sizing is #14 to 10 AWG, supporting common branch-circuit wiring practices.
Yes. The flush-mount design provides a low-profile outlet that integrates neatly into walls in both homes and offices. Its 125 V, 20A rating and NEMA 5-20R configuration meet standard outlet requirements, while the combination of PVC/polycarbonate face and brass contacts delivers durability and reliable performance in high-use environments.
TRAG20GY carries NOM, UL Listed, CSA Certified, and cULus Listed certifications, ensuring compliance with safety and regulatory requirements across North America and international markets. These certifications support procurement for multi-region projects and help reduce compliance-related delays during commissioning.
The self-test feature reduces maintenance checks by providing built‑in health verification, while tamper-resistant design lowers the risk of accidental shock or protruding foreign objects. Together with durable materials and a reliable terminations process, this translates to lower downtime, fewer replacements, and a stronger total cost of ownership for facilities with frequent outlet usage.
