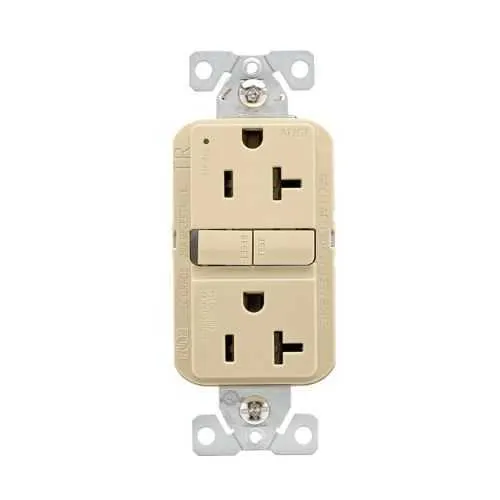

Eaton TRAG20V Receptacle - 125V 20A Tamper Resistant
Part Number: TRAG20V
Quick Summary
Eaton slim AFGF receptacle is a 20A, 125V outlet designed for residential and light commercial wiring. Installers often wrestle with safety compliance and time-consuming wiring in cramped spaces, risking backouts and callbacks. This product carries NOM, UL Listed, CSA Certified, and cULus Listed certifications to support multi‑jurisdictional compliance. With flush mounting and a durable ivory polycarbonate body, it delivers reliable performance while simplifying installation, inventory management, and ongoing maintenance for contractors and facility managers alike.
Product Information
Extended Description
TRAG20V Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFGF, back and side wire, ivory, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG20V
UPC
032664022753
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
NOM UL Listed CSA Certified cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
Polycarbonate PVC
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Tamper-resistant construction prevents accidental intrusion and supports code compliance, reducing safety incidents and downstream repair costs. This translates to lower maintenance calls and fewer field corrections in occupied spaces, making it ideal for new builds and retrofit projects in both residential and light commercial environments. The TRAG20V also supports back and side wiring for #14 - 10 AWG, speeding terminations and enabling flexible installation in tight spaces without compromising on reliability or speed-to-power. Flush mounting delivers a neat, space-saving profile that simplifies trim work and aligns with modern interior aesthetics used in offices, clinics, and multi-dwelling units. The two-pole, three-wire grounding, 125V, 20A configuration with a brass contact system ensures robust conductivity and longevity under frequent plug-in cycles. Brass contacts, a 16 lbf-inch torque rating, and polycarbonate face translate into durable, vibration-resistant performance in demanding industrial environments. Certifications including NOM, UL Listed, CSA Certified, and cULus Listed provide clear regulatory alignment for project bids and code compliance packages, reinforcing procurement confidence and reducing risk during audits and inspections.
Get a Quick Quote for a Eaton TRAG20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG20V?
Enquire Now
FAQs
TRAG20V supports both back- and side-wire termination for #14 - 10 AWG conductors. During installation, loosen the terminals to accommodate the conductor, then tighten to the 16 in-lb torque specification. This flexibility speeds up wiring in tight spaces, reduces the need for additional connectors, and minimizes remediation work if any conductors must be reterminated later.
The TRAG20V is a tamper-resistant AF/GF receptacle with a self-test capability to verify proper operation. It is rated for 20A at 125V and uses brass contact material for reliable conductivity. The device supports a two-pole, three-wire grounding configuration and is designed for flush installation, improving safety in high-traffic areas and ensuring durable performance over the life of the installation.
Yes. The TRAG20V is designed for residential and light commercial use, offering a flush-mount, space-efficient footprint suitable for walls, corridors, and utility rooms. Its 20A/125V capacity and tamper-resistant features meet typical code requirements for both new construction and retrofit projects, while its back- and side-wire capability provides installation flexibility across different wiring methods.
TRAG20V carries NOM, UL Listed, CSA Certified, and cULus Listed certifications. These approvals demonstrate compliance with multiple safety and performance standards across jurisdictions, simplifying bid responses and reducing the risk of non-conformance during inspections. The certification status supports regulatory alignment for both residential and commercial electrical projects.
The TRAG20V reduces installation time through flexible back- and side-wire terminations and a flush-mount design that minimizes trim work. Tamper resistance helps reduce calls for safety fixes, while the self-test feature adds reliability with less manual testing. Over the life of a facility, these features translate to lower maintenance costs and a faster return on investment.
