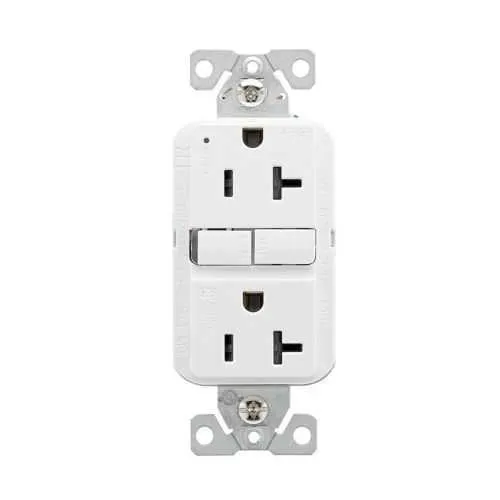

Eaton TRAG20W Receptacle - Tamper Resistant
Part Number: TRAG20W
Quick Summary
The Eaton slim AFGF receptacle is a self-test, 20A, 125V outlet designed for residential and light commercial use. Installers often struggle with safety-compliant outlets that are easy to wire and conceal in flush mounts; this model addresses back-and-side wiring, tamper resistance, and field testing in a single package. It carries UL Listed, NOM Certified, and cULus Listed certifications, confirming compliance for many regulatory environments. Built for rapid installs and long-term reliability, the TRAG20W leverages a durable polycarbonate body, brass contacts, and a 16 lbf-in torque rating to reduce maintenance and call-backs. For project scalability, it complements standard 5-20R configurations and supports #14–10 AWG wiring, aligning with common construction practices and procurement workflows.
Product Information
Extended Description
TRAG20W Eaton: Eaton slim AFGF receptacle, tamper resistant, self-test, #14 - 10 AWG, 20 A, residential, commercial, flush, 125 V, AFGF, back and side wire, white, brass, polycarbonate, 5-20R, two-pole, three-wire, grounding
Product Name
Eaton slim AFGF receptacle
Catalog Number
TRAG20W
UPC
032664022760
Product Length/Depth
1.37 in
Product Height
4.19 in
Product Width
1.7 in
Product Weight
0.24 lb
Certifications
UL Listed NOM CSA Certified cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
AFGF
Contact material
Brass
Features
Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
White
Face/body material
Polycarbonate PVC
Receptacle type
Two-pole, three-wire, grounding
Installing and testing an AF/GF receptacle
Ground Fault Circuit INterrupter (GFCI) demonstration
Tamper Resistant Slim AF/GF Spec Sheet
Feature: Tamper-resistant and self-test capability enhances safety and reduces nuisance outages. Business Impact: Improves compliance with modern safety codes while lowering callbacks and warranty repairs. Application: Ideal for residential and light commercial flush installations where safety and reliability are critical. Feature: Back and side wiring support with #14–10 AWG conductors. Business Impact: Speeds up installation, improves wire management, and reduces field wiring errors. Application: Retrofit and new-build projects where flexible termination is required. Feature: NEMA 5-20R, 125V, 20A configuration with brass contacts. Business Impact: Ensures compatibility with common equipment and robust electrical contact performance. Application: General outlets in outlets near tools and appliances in offices or homes. Feature: Durable polycarbonate face/body and flush mounting design. Business Impact: Superior impact resistance and neat, code-friendly install aesthetics reduce maintenance and replacement costs. Application: High-traffic areas and spaces demanding durable, code-compliant outlets. Feature: UL Listed, NOM Certified, cULus Listed safety credentials. Business Impact: Streamlines code approvals and reduces risk during inspections. Application: Projects governed by strict electrical standards in commercial and multi-tenant environments.
Get a Quick Quote for a Eaton TRAG20W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRAG20W?
Enquire Now
FAQs
Power must be off before starting. Use conductors in the #14–10 AWG range, secure the wiring to the back and side terminals as specified, and tighten to 16 lbf-in torque. Mount the unit flush to the box to ensure proper face alignment and grounding. Verify that the NEMA 5-20R configuration matches your outlet plan and test for continuity after installation.
The TRAG20W is UL Listed, NOM Certified, and cULus Listed, with CSA certification noted as part of the listing. These credentials support code compliance for residential and commercial installations and help ensure acceptable performance under typical operating conditions.
Yes. The receptacle combines tamper-resistant construction with a self-test capability, providing ongoing safety checks and reducing the likelihood of unnoticed wiring faults or unsafe insertions. This combination is especially valuable in occupied spaces and configurations requiring enhanced protection.
TRAG20W supports back and side wiring with #14–10 AWG conductors. It is designed for 125V, 20A operation and uses a NEMA 5-20R configuration. Follow torque and terminal guidelines to ensure a reliable, code-compliant connection.
TRAG20W is ideal for residential and light commercial applications where flush mounting, safety, and reliability are priorities. Its tamper-resistant design, self-test feature, and UL/NOM/cULus certifications make it well-suited for kitchens, offices, break rooms, and other high-traffic spaces requiring durable, compliant outlets.
