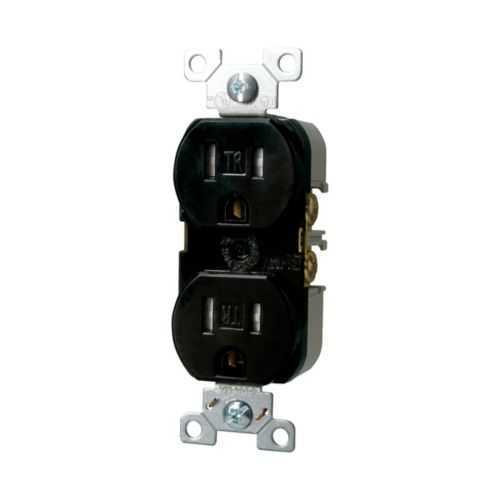

Eaton TRBR15BK-SPL2 Duplex Receptacle - Tamper-Resistant
Part Number: TRBR15BK-SPL2
Quick Summary
Eaton commercial specification grade duplex receptacle delivers reliable 125V power for commercial installations. This model TRBR15BK-SPL2 is designed to withstand high-traffic environments where safety and uptime matter. The unit carries cULus Listed and NOM certifications, reinforcing compliance with North American electrical standards, while its tamper-resistant feature protects occupants in busy spaces. With flush mounting and a robust PVC body, installation is straightforward in a variety of enclosures, and the brass contact material ensures durable connections. For procurement teams, this receptacle translates to predictable performance, reduced service calls, and lower lifecycle costs, supported by compatibility with #14-10 AWG wiring and back-and-side wiring methods.
Product Information
Extended Description
TRBR15BK-SPL2 Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Black, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, Retail Box, Tamper-resistant, Shelf pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15BK-SPL2
UPC
032664746437
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Special features
Tamper-resistant
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Retail Box
Color
Black
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15BK-SPL2
Eaton Specification Sheet - TRBR15BK-SPL2
Tamper-resistant design reduces shock risk and helps meet today’s safety codes, accelerating permit approvals and minimizing incident-related downtime. Business impact: increased occupant safety and lower risk exposure in offices, schools, and retail environments. Application: ideal for high-traffic commercial spaces where frequent plug-in events occur. The 15A, 125V rating paired with a NEMA 5-15R configuration provides consistent power delivery across standard circuitry, supporting quick project onboarding and reduced wiring errors. Application: office remodels and retail fit-outs with mixed 14-10 AWG conductors. Back and side wiring support flexible installation, enhancing field adaptability and reducing labor time during terminations. Torque rating of 14 lbf-in ensures reliable connections and helps prevent loose contacts over time. Application: flush-mount installations where space is at a premium, improving panel aesthetics and accessibility for maintenance. PVC body with an impact-resistant nylon face combines durability with resistance to wear, contributing to longer service life in demanding environments. The black finish matches common commercial interiors and retail displays, while retail box packaging simplifies stock control and shelf placement. Certification-ready design with cULus Listed and NOM alignment supports compliance and reduces review cycles for project approval. Feature set translates to measurable ROI through fewer replacement events, faster installations, and streamlined procurement in Wiring & Connectivity projects.
Get a Quick Quote for a Eaton TRBR15BK-SPL2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15BK-SPL2?
Enquire Now
FAQs
The TRBR15BK-SPL2 supports back and side wiring with #14-10 AWG conductors. For installation, align the receptacle inFlush-mount hardware, secure with screws, and terminate conductors per the 14 lbf-in torque specification to ensure a solid, compliant connection. This configuration accommodates flexible field wiring in commercial spaces.
It is a 15A, 125V NEMA 5-15R duplex receptacle with a tamper-resistant design, PVC body, and impact-resistant nylon face. These features deliver durable, maintenance-friendly performance in offices, retail, schools, and healthcare facilities while meeting high safety and reliability standards.
Tamper-resistant outlets require a two-step motion to insert plugs, reducing accidental shock, child access, and misuse in busy occupancy environments. This aligns with modern safety codes for commercial installations and helps streamline compliance documentation during project approvals.
The TRBR15BK-SPL2 carries cULus Listed and NOM certifications, which confirm adherence to North American electrical safety standards. These certifications simplify acceptance by code officials, reduce risk during inspections, and support ongoing regulatory compliance in commercial projects.
The receptacle’s durable materials, secure wiring method, and tamper-resistant design reduce maintenance and replacement costs, shorten installation times, and improve uptime in high-traffic spaces. Combined with standardized wiring (14-10 AWG) and compact, flush mounting, projects benefit from faster turnover and lower life-cycle costs.
