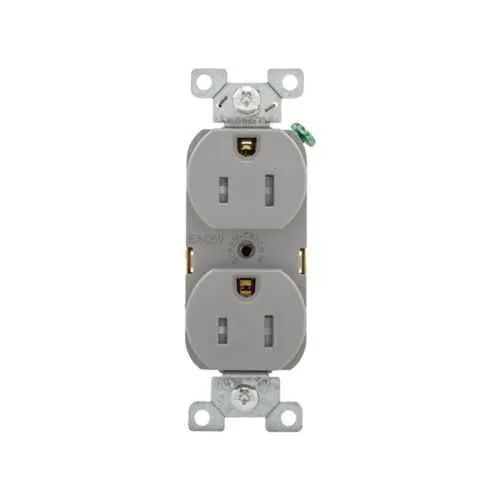

Eaton TRBR15GYBXSP Duplex Receptacle - cULus Listed
Part Number: TRBR15GYBXSP
Quick Summary
Eaton TRBR15GYBXSP duplex receptacle is a commercial-grade solution designed for reliable 125V power delivery in busy facilities. In busy commercial environments, wear, loose connections, and grounding issues routinely disrupt operations. cULus Listed and NOM certified reinforce compliance, while 125V/15A ratings and back‑and‑side wiring simplify installation. Flush mounting, a PVC body, durable nylon face, and brass contacts support long service in commercial settings. This combination delivers productivity gains and safer power distribution across offices, retail, and light industrial environments. Engineered for 14-10 AWG wires with a 14 lbf-inch torque rating, it ensures solid connections and reduced maintenance. Designed to accommodate recessed ED Box packaging and screw terminal connections, it streamlines retrofit projects and new builds.
Product Information
Extended Description
TRBR15GYBXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Gray, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15GYBXSP
UPC
032664668647
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Gray
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15GYBXSP
Eaton Specification Sheet - TRBR15GYBXSP
Feature: 15A at 125V with NEMA 5-15R duplex configuration. Business Impact: Standardized, widely compatible receptacle reduces stocking diversity and simplifies maintenance across commercial facilities. Application: Office suites, retail storefronts, and light industrial spaces benefit from consistent power distribution and fast replacements. Long-tail keywords: commercial-grade duplex receptacle, NEMA 5-15R, 125V power, 15A rating. Feature: Back and side wiring with screw terminals. Business Impact: Flexible terminations speed up installation and retrofit, lowering labor costs and downtime. Application: New builds and renovations where space is constrained or retrofits are frequent. Long-tail keywords: back and side wiring, screw terminals, #14-10 AWG compatibility. Feature: Tamper-resistant and auto-grounding design. Business Impact: Enhanced safety and code compliance with reduced risk of shock or tampering, ideal for schools, hospitals, and offices. Application: Environments with high foot traffic and safety requirements. Long-tail keywords: tamper resistant, auto-grounding, safety receptacle. Feature: Durable PVC body with impact-resistant nylon face and brass contacts. Business Impact: Superior durability in high-traffic areas translates to longer service life and lower replacement costs. Application: Corridors, lobbies, and customer-facing zones. Long-tail keywords: PVC body, impact-resistant nylon face, brass contacts. Feature: Flush mounting with ED Box packaging. Business Impact: Clean, professional aesthetics and faster installation in flush-mount applications, reducing trim work. Application: New construction and retrofit projects requiring neat power distribution. Long-tail keywords: flush mount receptacle, ED Box, installation efficiency. Feature: Wire-size flexibility (#14-10 AWG) and 14 lbf-inch torque rating. Business Impact: Reliable terminations with consistent performance under load, minimizing retightening and maintenance. Application: Commercial feeders and branch circuits. Long-tail keywords: #14-10 AWG, torque rating 14 lbf-inch, reliable terminations.
Get a Quick Quote for a Eaton TRBR15GYBXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15GYBXSP?
Enquire Now
FAQs
The TRBR15GYBXSP supports back and side wiring with screw terminals and is compatible with #14-10 AWG conductors. This flexible terminations approach speeds installation, reduces field adjustments, and supports both new installation and retrofit projects in commercial spaces. The torque rating of 14 lbf-inch ensures reliable, code-compliant terminations.
Yes. The receptacle features tamper-resistant construction and auto-grounding capabilities, enhancing safety in high-traffic environments such as schools, hospitals, and offices. These features help meet contemporary safety codes and minimize the risk of accidental contact, improving overall site compliance and worker safety.
The TRBR15GYBXSP is a NEMA 5-15R duplex receptacle rated for 15A at 125V. It accepts standard 125V circuits and provides two outlets in a duplex configuration suitable for common commercial power needs, making it a versatile choice for offices, retail, and light industrial applications.
Yes. The unit is designed for flush mounting and packaged for ED Box installations, allowing a neat, space-efficient finish that aligns with modern commercial electrical layouts. This simplifies retrofits and new builds by delivering a clean, code-compliant surface with minimal trim work.
The TRBR15GYBXSP carries cULus Listed and NOM certifications, signaling adherence to required safety and performance standards. These markings support code compliance in North American commercial environments, helping manufacturers and contractors meet regulatory requirements while reducing the risk of non-conformance during inspections.
