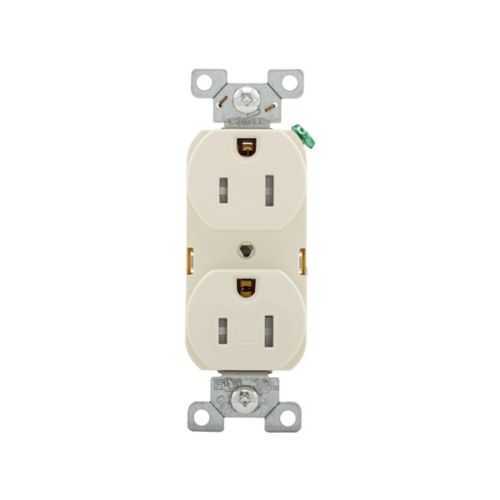

Eaton TRBR15LABXSP Duplex Receptacle - cULus Listed
Part Number: TRBR15LABXSP
Quick Summary
The Eaton TRBR15LABXSP duplex receptacle provides flush-mounted power for commercial spaces. This design addresses the common challenge of durable, code-compliant outlets in high-traffic areas where frequent plug-in activity can wear out lesser components. Certified for reliability with cULus Listed and NOM, it aligns with modern safety and performance requirements. Built for back-and-side wiring at #14-10 AWG and a 125V, 15A circuit, this receptacle delivers consistent power delivery and easy installation. For engineers and procurement teams, the combination of a robust PVC body and an impact-resistant nylon face translates into reduced maintenance costs, fewer field failures, and smoother project handoffs in commercial projects that demand long-term performance.
Product Information
Extended Description
TRBR15LABXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Light almond, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15LABXSP
UPC
032664668654
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15LABXSP
Eaton Specification Sheet - TRBR15LABXSP
Feature → Business Impact → Application: The TRBR15LABXSP utilizes tamper-resistant and auto-grounding features to enhance safety, which reduces accidental contact incidents and supports compliance with contemporary electrical codes in high-traffic commercial spaces. This translates to lower risk for facilities managers and less rework after inspections, particularly in education, hospitality, and office environments. Feature → Business Impact → Application: With back and side wiring for #14-10 AWG conductors, installation is faster and more versatile, minimizing field labor time and errors during conduit pulls or retrofit projects in ED boxes or retrofit housings. Feature → Business Impact → Application: Brass contact material and a sturdy PVC body deliver reliable current transfer and long-term resistance to wear, contributing to lower maintenance costs and fewer nuisance outages in retail stores and commercial workplaces. Feature → Business Impact → Application: The 5-15R NEMA configuration and 15A 125V rating align with common branch circuits, enabling straightforward integration in new builds and upgrade projects without exotic components or adapters. Feature → Business Impact → Application: The sleek light almond finish and flush-mount design improve overall aesthetics in finish-out phases, supporting brand-consistent commercial interiors while maintaining easy access for service technicians. Feature → Business Impact → Application: The included ED Box packaging and compatibility with standard mounting methods reduce installation time and simplify inventory management for electrical contractors working on multi-room deployments, from corporate campuses to healthcare facilities. Long-tail keywords woven naturally include commercial-grade duplex receptacle, back and side wiring, 15A 125V, NEMA 5-15R, flush mount, ED Box, and tamper-resistant receptacle. The overall outcome is improved installation efficiency, improved safety compliance, and a lower total cost of ownership when deployed across multiple outlets in a project portfolio.
Get a Quick Quote for a Eaton TRBR15LABXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15LABXSP?
Enquire Now
FAQs
TRBR15LABXSP supports back and side wiring for #14-10 AWG conductors and flush mounting in ED boxes. It uses screw terminals for secure connections and a NEMA 5-15R configuration, making it suitable for both new installations and retrofit projects in commercial spaces.
This receptacle is cULus Listed and NOM certified, ensuring compliance with recognized safety standards for commercial wiring. These certifications provide assurance during code reviews and inspections, reducing risk of non-conformant installations and improving project timelines.
Yes. The unit features tamper-resistant design and auto-grounding functionality, which enhances safety by preventing accidental contact with energized contacts and ensuring reliable grounding in all standard commercial configurations.
Ideal for commercial environments requiring reliable 125V 15A outlets, including offices, retail spaces, hospitality areas, and educational facilities. Its flush-mount design with a light almond finish complements finished interiors while meeting everyday power needs and safety standards.
Durable PVC body with an impact-resistant nylon face and brass contacts reduces wear and improves longevity. Back and side wiring speeds installation, lowering labor costs, while tamper-resistant features minimize damage from misuse, yielding lower maintenance and replacement costs over time.
