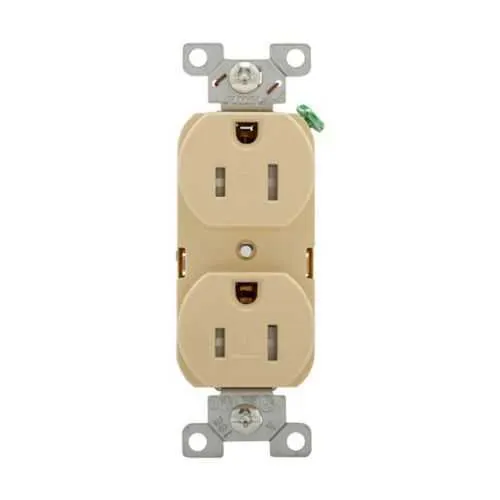

Eaton TRBR15V-BXSP Duplex Receptacle - cULus Listed
Part Number: TRBR15V-BXSP
Quick Summary
TRBR15V-BXSP is an Eaton commercial specification grade duplex receptacle for 15A, 125V commercial wiring. In busy electrical spaces, durability, safety features, and reliable grounding minimize downtime and maintenance calls. This unit carries cULus Listed and NOM certifications, reinforcing safety and facilitate project qualification. Designed for flush installations with back and side wiring, it delivers dependable performance while keeping circuits tidy for contractors and facility managers. As a commercial-grade, NEMA 5-15R receptacle with tamper resistance and auto-grounding, it supports efficient procurement and reduces replacement cycles.
Product Information
Extended Description
TRBR15V-BXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Ivory, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15V-BXSP
UPC
032664668661
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15V-BXSP
Eaton Specification Sheet - TRBR15V-BXSP
Feature 1: 15A at 125V NEMA 5-15R receptacle. Business Impact: Standardized power delivery for most general-purpose loads in offices and retail spaces, reducing the need for adapters and custom solutions. Application: Ideal for commercial rooms, classrooms, and reception areas where reliable, ready-to-wire outlets are essential. Feature 2: Back and side wiring capability for #14-10 AWG conductors. Business Impact: Flexible termination options speed up installation and simplify retrofits, cutting field labor time. Application: Retrofit projects and new builds where wire routing varies. Feature 3: Tamper-resistant with auto-grounding. Business Impact: Enhanced safety for occupants, lowering risk of accidental contact and improving grounding reliability, which can reduce incident-related costs. Application: Schools, hospitality, healthcare, and consumer-facing spaces requiring compliant safety features. Feature 4: Impact-resistant nylon face with PVC body. Business Impact: Superior durability in high-traffic environments, reducing part replacement and service calls. Application: Corridors, lobbies, and maintenance corridors where frequent plug-in activity occurs. Feature 5: Flush mount with NEMA 5-15R configuration and ivory color. Business Impact: Space-saving installation with a clean aesthetic that matches many commercial interiors, supporting faster project approvals. Application: New builds and remodels in commercial settings leveraging standard color and form factors. Feature 6: Compatible with ED Box packaging and brass contact material. Business Impact: Robust connections and easier field maintenance, contributing to longer-lasting outlets and lower lifecycle costs. Application: Institutional facilities and office environments with stringent durability expectations.
Get a Quick Quote for a Eaton TRBR15V-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15V-BXSP?
Enquire Now
FAQs
The TRBR15V-BXSP accepts back and side terminations for #14-10 AWG conductors, with a torque rating of 14 lbf-in to ensure secure, code-compliant connections. This dual wiring method provides flexibility for new installations and retrofits, reducing the risk of loose terminations and associated heat buildup. For field work, verify conductor size and tighten to spec while mounting in a standard ED box.
It combines 15A/125V capability with a NEMA 5-15R configuration, tamper-resistant features, auto-grounding, brass contact material, and an impact-resistant nylon face with a PVC body. These characteristics deliver reliable performance, safer operation for occupants, and reduced maintenance in high-traffic areas such as offices, hotels, and educational facilities.
Yes. The TRBR15V-BXSP is cULus Listed and NOM certified, aligning with North American safety standards and streamlining procurement for regulated projects. These certifications help ensure wiring devices meet essential electrical safety requirements, facilitating inspections and reducing risk during installation and operation.
Choose flush-mount installation with back- and side-wiring capability to simplify terminations, select the ivory PVC body variant for visible spaces, and use the included ED Box packaging for efficient field organization. The device’s durable materials and 14 lbf-in torque specification support lasting connections, minimizing service calls and downtime in busy facilities.
Engineering teams can expect lower lifecycle costs due to durable construction, reduced replacement frequency, and fewer field terminations failures. The tamper-resistant, auto-grounding design improves safety and compliance, while standard 15A/125V operation supports broad compatibility with common commercial loads, enabling faster project approvals and predictable maintenance budgets.
