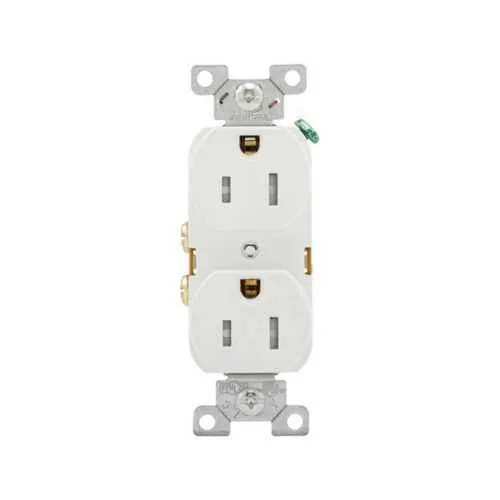

Eaton TRBR15W-BU Duplex Receptacle - cULus NOM Listed
Part Number: TRBR15W-BU
Quick Summary
TRBR15W-BU is Eaton's commercial-grade duplex receptacle that provides reliable 15A, 125V power for busy facilities. In high-traffic commercial spaces, quick, error-free installation and durable safety features reduce downtime and rework. This unit carries cULus Listed and NOM certifications for safety compliance, while tamper-resistant design and auto-grounding protect occupants and simplify maintenance. With flush mounting and back-and-side wiring, it supports flexible layouts, helping electrical teams meet project timelines and stay within budget.
Product Information
Extended Description
TRBR15W-BU Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, White, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15W-BU
UPC
032664728129
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15W-BU
Eaton Specification Sheet - TRBR15W-BU
Feature: 15A, 125V NEMA 5-15R duplex receptacle provides broad compatibility for common commercial devices. Impact: simplifies device turnover and reduces stocking variety, improving installation speed. Application: ideal for general outlets in offices, retail, and hospitality settings. Feature: Back and side wiring for #14-10 AWG conductors supports multiple termination methods. Impact: accelerates wiring during installation and upgrades, minimizing field-terming errors. Application: suitable for new construction and remodeling projects where wiring flexibility matters. Feature: Tamper-resistant and auto-grounding enhances safety and code compliance. Impact: lowers risk of accidental contact and ensures reliable grounding without extra steps. Application: high-traffic areas like lobbies, conference rooms, and patient care corridors. Feature: Flush mounting with a durable PVC body and impact-resistant nylon face provides long service life. Impact: reduces maintenance downtime and replacement costs in busy facilities. Application: common commercial outlets in demanding environments. Feature: Brass contact material and a 14 lbf-inch torque rating guarantee secure, low-resistance connections. Impact: improved reliability under continuous use and reduced hotspot risks. Application: critical power rails and shared circuits where performance matters.
Get a Quick Quote for a Eaton TRBR15W-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15W-BU?
Enquire Now
FAQs
The TRBR15W-BU supports back and side wiring for #14-10 AWG conductors, with a total of three wires wired to a NEMA 5-15R duplex receptacle. This flexibility enables straightforward terminations during new installs or upgrades, reduces field errors, and supports both retrofit and standard commercial wiring practices in office and retail settings.
Yes. The TRBR15W-BU is a 15A, 125V duplex receptacle configured as NEMA 5-15R, designed for common office equipment, lighting controls, and general-use outlets. Its standard configuration ensures broad equipment compatibility and simplifies procurement and maintenance across multiple sites.
This receptacle includes tamper-resistant construction and auto-grounding, which enhance occupant safety and compliance with safety codes. The tamper-resistant design helps prevent inserted objects from accessing live contacts, while auto-grounding ensures effective grounding without needing additional wiring steps, reducing maintenance calls and improving reliability in busy environments.
Ideal for commercial spaces, the TRBR15W-BU supports flush mounting in walls or panels, with back and side wiring for flexible installation. It is well-suited for offices, hotels, retail, and healthcare corridors where a clean appearance, reliable performance, and easy serviceability are priorities.
The TRBR15W-BU carries cULus Listed NOM certifications, indicating compliance with North American safety standards and Mexican NOM requirements. These certifications help ensure regulatory compliance across multi-site deployments and simplify procurement for projects with strict safety and compatibility requirements in commercial buildings.
