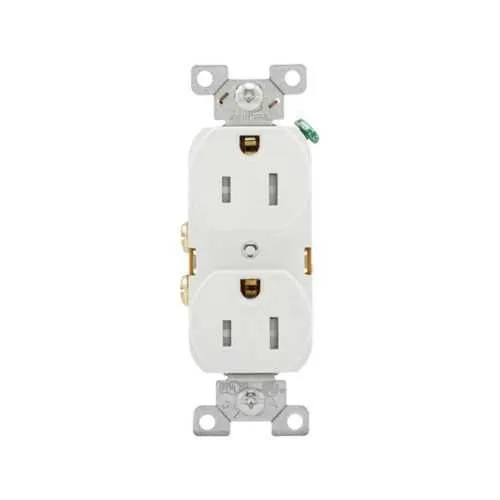

Eaton TRBR15W-BXSP Duplex Receptacle - cULus Listed
Part Number: TRBR15W-BXSP
Quick Summary
Eaton TRBR15W-BXSP duplex receptacle is a 15A, 125V solution for commercial-grade power delivery in classrooms, offices, and retail spaces. The design minimizes miswired connections and simplifies installation by supporting back and side wiring with secure screw terminals. It carries cULus Listed and NOM certifications, reflecting compliance with safety standards for commercial environments. With a durable PVC body, impact-resistant nylon face, and brass contacts, this receptacle delivers reliable performance, while flush mounting keeps walls neat and code-compliant. Choosing this model supports maintenance efficiency and consistent electrical code compliance in high-traffic facilities, delivering long-term cost savings and safer operation for facilities teams and occupants.
Product Information
Extended Description
TRBR15W-BXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, White, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR15W-BXSP
UPC
032664668678
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR15W-BXSP
Eaton Specification Sheet - TRBR15W-BXSP
Feature: 15A, 125V NEMA 5-15R duplex receptacle. Impact: Ensures dependable power delivery for standard commercial loads while meeting common code requirements. Application: Office, retail, and institutional environments requiring reliable 125V circuits. Feature: Back and side wiring for #14-10 AWG. Impact: Streamlines field installation and reduces wiring errors, cutting installation time. Application: New builds and retrofit projects in busy facilities. Feature: Tamper-resistant and auto-grounding. Impact: Enhances safety and regulatory compliance, decreasing tampering risk and ensuring proper grounding with minimal effort. Application: Schools, hospitals, and hospitality sites. Feature: PVC body with impact-resistant nylon face and brass contacts. Impact: Improves durability and electrical performance in high-traffic areas, lowering replacement and maintenance costs. Application: Corridors, classrooms, and multi-tenant spaces. Feature: Flush mounting in an ED Box. Impact: Delivers a clean, code-compliant finish that simplifies wall aesthetics and reduces misalignment issues. Application: Wall outlets in finished spaces where appearance and reliability matter.
Get a Quick Quote for a Eaton TRBR15W-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR15W-BXSP?
Enquire Now
FAQs
The TRBR15W-BXSP supports back and side wiring with #14-10 AWG conductors, using screw terminals for a secure connection. Discusses proper torque (14 lbf-in) to ensure a reliable, code-compliant termination. This design simplifies retrofit and new installs, reduces field errors, and is compatible with standard ED Box wall installations.
This receptacle is cULus Listed with NOM certification, indicating compliance with UL safety standards and Mexican electrical regulations. For engineers and procurement, these certifications simplify code approvals, supplier qualification, and installation requirements across diverse commercial projects.
Yes. It features an impact-resistant nylon face and a durable PVC body with brass contacts, plus tamper-resistant and auto-grounding features. These elements enhance safety, reduce maintenance cycles, and support long service life in schools, hospitals, retail spaces, and other busy facilities.
Flush mounting creates a clean wall appearance and helps meet architectural tolerances, while the ED Box packaging standardizes installation and reduces field prep time. This combination minimizes wall protrusions, simplifies alignment with faceplates, and accelerates turn-around in commercial builds.
The combination of durable materials, tamper-resistant design, and reliable back/side wiring lowers failure rates and maintenance costs. By simplifying installation and ensuring long-term code compliance, facilities experience reduced downtime and faster project completion, delivering measurable efficiency gains and improved occupant safety.
