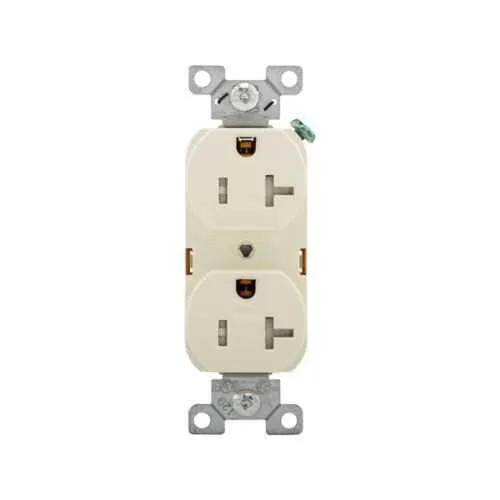

Eaton TRBR20A-BXSP Duplex Receptacle - cULus Listed
Part Number: TRBR20A-BXSP
Quick Summary
The Eaton TRBR20A-BXSP duplex receptacle is a commercial-grade outlet for 125V, 20A service in busy facilities. It helps avoid delays from improper wiring by offering reliable back- and side-wire connections with a durable PVC body and impact-resistant nylon face. Certified cULus Listed and NOM, it aligns with safety codes while delivering long-term performance for commercial spaces. With flush mounting, almond color, and a 5-20R NEMA configuration, it supports modern wiring methods and consistent uptime across facilities.
Product Information
Extended Description
TRBR20A-BXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Almond, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20A-BXSP
UPC
032664668685
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20A-BXSP
Eaton Specification Sheet - TRBR20A-BXSP
Back- and side-wiring capability accepts #14-10 AWG conductors, enabling flexible terminations across a wide range of loads. This reduces field modification time and minimizes termination errors, making it well-suited for ED Box installations in commercial spaces where outlets must adapt to varying branch-circuit wiring while maintaining code compliance. The durable face and body—an impact-resistant nylon face and PVC body—resist abuse during rough-in and maintenance, extending service life and lowering replacement costs in high-traffic environments. Tamper-resistant construction with auto-grounding enhances safety and supports modern codes, reducing call-backs related to safety compliance. The NEMA configuration 5-20R, 20A, 125V rating accommodates common commercial loads, and a torque rating of 14 lbf-in ensures secure terminations for reliable long-term operation. Packaging as ED Box simplifies installation in commercial interiors, while flush mounting aligns with architectural requirements and minimizes footprint.
Get a Quick Quote for a Eaton TRBR20A-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20A-BXSP?
Enquire Now
FAQs
Power must be off before installation. Use #14-10 AWG conductors and connect them via back- and side-wiring terminals. Torque each terminal to 14 lbf-in to ensure a secure, code-compliant termination. Mount flush in an ED Box and verify 5-20R alignment for proper NEMA configuration. This setup minimizes wiring mistakes and reduces service calls.
The TRBR20A-BXSP is designed for commercial applications requiring a 125V, 20A receptacle with back- and side-wiring. Its NEMA 5-20R configuration and flush ED Box packaging make it ideal for office interiors, lobbies, corridors, and other high-traffic areas needing reliable, code-compliant power delivery.
Yes. The TRBR20A-BXSP features tamper-resistant construction and auto-grounding, addressing child-safety and equipment grounding requirements. These features help meet contemporary safety codes in commercial facilities and reduce incidental contact risks during maintenance or reconfiguration.
The receptacle is cULus Listed and NOM certified, signaling compliance with recognized safety and electrical standards for North American markets. These certifications support regulatory approvals, facilitate code compliance reviews, and provide assurance for installation in commercial buildings.
Key specs include 20A, 125V, NEMA 5-20R configuration, back- and side-wiring for #14-10 AWG, flush mount with ED Box packaging, almond color, 14 lbf-in torque, PVC body, and an impact-resistant nylon face. Dimensions are 1.24 in depth, 4 in height, 0.79 in width, and weight around 0.212 lb, enabling predictable fit in standard commercial installations.
