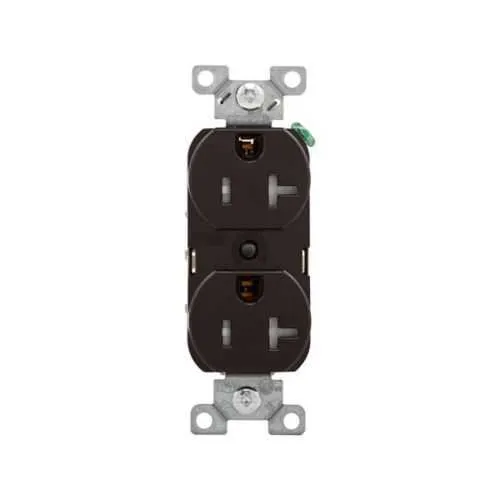

Eaton TRBR20B-BXSP Duplex Receptacle - cULus Listed
Part Number: TRBR20B-BXSP
Quick Summary
The Eaton TRBR20B-BXSP duplex receptacle delivers reliable 125V power for commercial environments. Facilities teams frequently struggle with outlet failures and wiring compatibility during upgrades, leading to costly downtime and rework; this unit simplifies installation and improves first-time wiring success. It carries cULus Listed and NOM certifications, offering compliance across North American and Mexican codes. Designed for commercial-grade straight blade receptacles with back-and-side wiring and flush mounting, it supports faster, code-compliant installations that reduce field labor costs and improve long-term reliability for specifiers and maintenance teams. With brass contacts and an impact-resistant nylon face, it stands up to daily wear in busy facilities.
Product Information
Extended Description
TRBR20B-BXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Brown, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20B-BXSP
UPC
032664668692
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Brown
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20B-BXSP
Eaton Specification Sheet - TRBR20B-BXSP
Feature → Business Impact → Application: Tamper-Resistant and Auto-Grounding provide inherent safety and regulatory compliance, reducing the risk of accidental contact and boosting OSHA alignment. This translates to lower incident-related downtime and fewer safety audits for high-traffic commercial sites, such as offices and retail spaces, where constant access is a must. Feature → Business Impact → Application: Back-and-side wiring supports flexible installation with 14-10 AWG conductors, enabling faster field terminations and fewer miswires. For retrofit projects and new builds, this reduces labor hours and revisits, improving project timelines in data centers, hospitals, and classrooms. Feature → Business Impact → Application: NEMA configuration 5-20R with 20A at 125V ensures compatibility with standard commercial circuits, delivering reliable power for laptop labs, checkout counters, and service counters without voltage drop concerns. Feature → Business Impact → Application: Brass contact material and PVC body with an impact-resistant nylon face deliver corrosion resistance and long service life, reducing replacement cycles in outdoor canopies, parking structures, and maintenance corridors. Feature → Business Impact → Application: Flush mounting and ED Box packaging simplify ceiling-to-wall coordination and box alignment, enabling clean, code-compliant installations with minimal bulges for architectural applications such as retail interiors and office fit-outs.
Get a Quick Quote for a Eaton TRBR20B-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20B-BXSP?
Enquire Now
FAQs
The TRBR20B-BXSP supports back-and-side wiring for #14-10 AWG conductors and uses screw terminals with a 14 lbf-inch torque rating, enabling secure terminations. Its flush-mount design and ED Box packaging simplify alignment with standard electrical boxes, reducing installation time and minimizing field adjustments during retrofit or new-construction projects.
This receptacle is rated for 20A at 125V and uses a NEMA 5-20R configuration. It includes tamper-resistant features and auto-grounding for enhanced safety, brass contact material for reliable conductivity, and an impact-resistant nylon face with a PVC body for durability in demanding commercial environments.
Yes. With a 20A, 125V rating, commercial-grade construction, and a flush-mount design, the TRBR20B-BXSP is ideal for office spaces, retail counters, and service areas where dependable power and quick installation are critical, while meeting typical commercial electrical standards and code expectations.
The TRBR20B-BXSP is cULus Listed and NOM certified, signaling compliance with North American safety standards and Mexican regulatory requirements. These certifications help ensure regulatory acceptance across projects in North America and national product conformity, reducing risk in procurement and commissioning.
Durable materials (brass contacts, PVC body, impact-resistant nylon face) provide corrosion resistance and longevity, lowering replacement frequency. Tamper-resistant design helps prevent damage from tampering, while robust construction supports extended service life in high-traffic or outdoor-adjacent commercial spaces, reducing total cost of ownership.
